206 Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide
16 Waveform Generator
The waveform generator output is automatically disabled if excessive
voltage is applied to the Gen Out BNC.

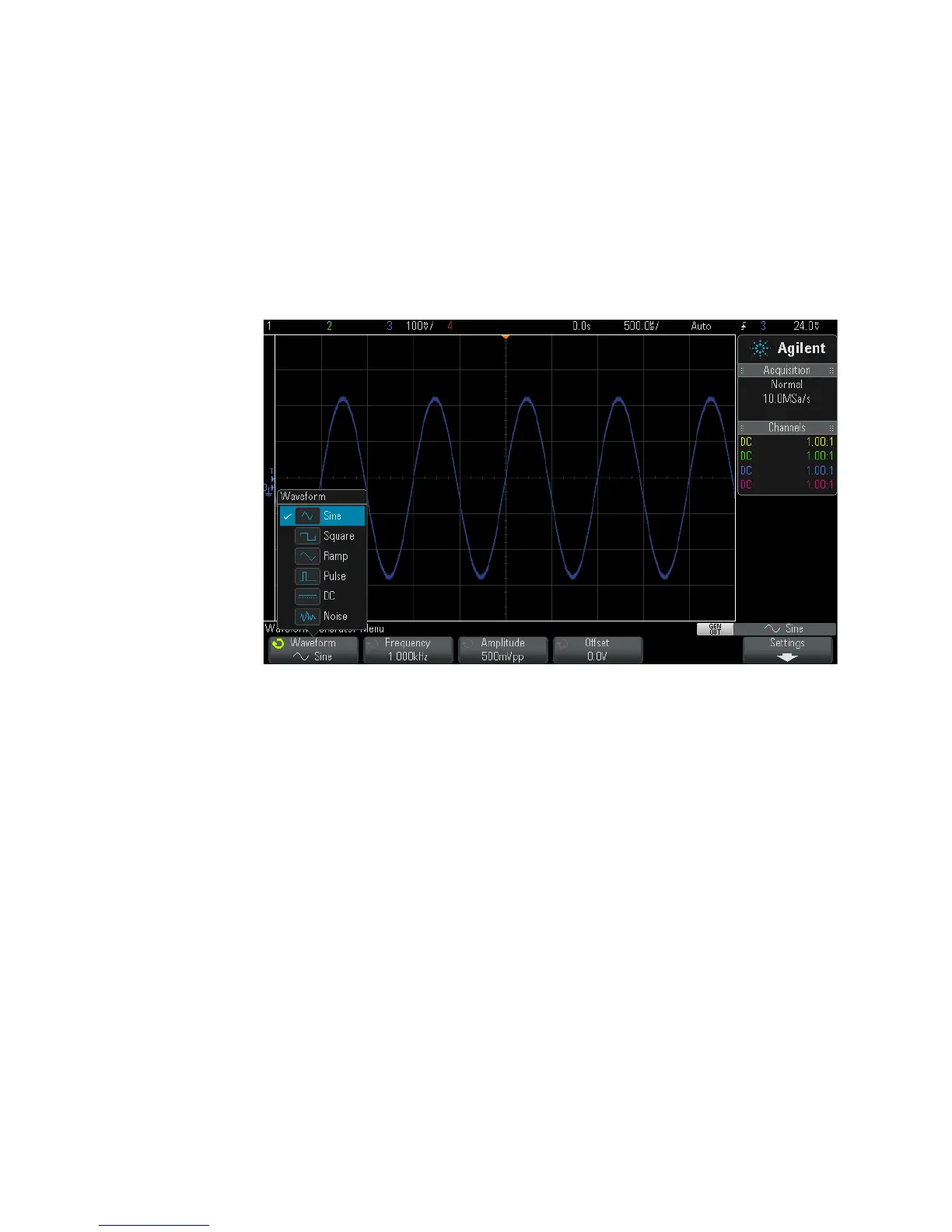

2 In the Waveform Generator Menu, press the Waveform softkey and turn
the Entry knob to select the waveform type.
3 Depending on the selected waveform type, use the remaining softkeys
and the Entry knob to set the waveform's characteristics.
