E18 Door Phone Administrator Guide
10. Relay Switch Setting
10.1.Relay Switch Setting
You can unlock the door via DTMF code during the call. To do so, you are

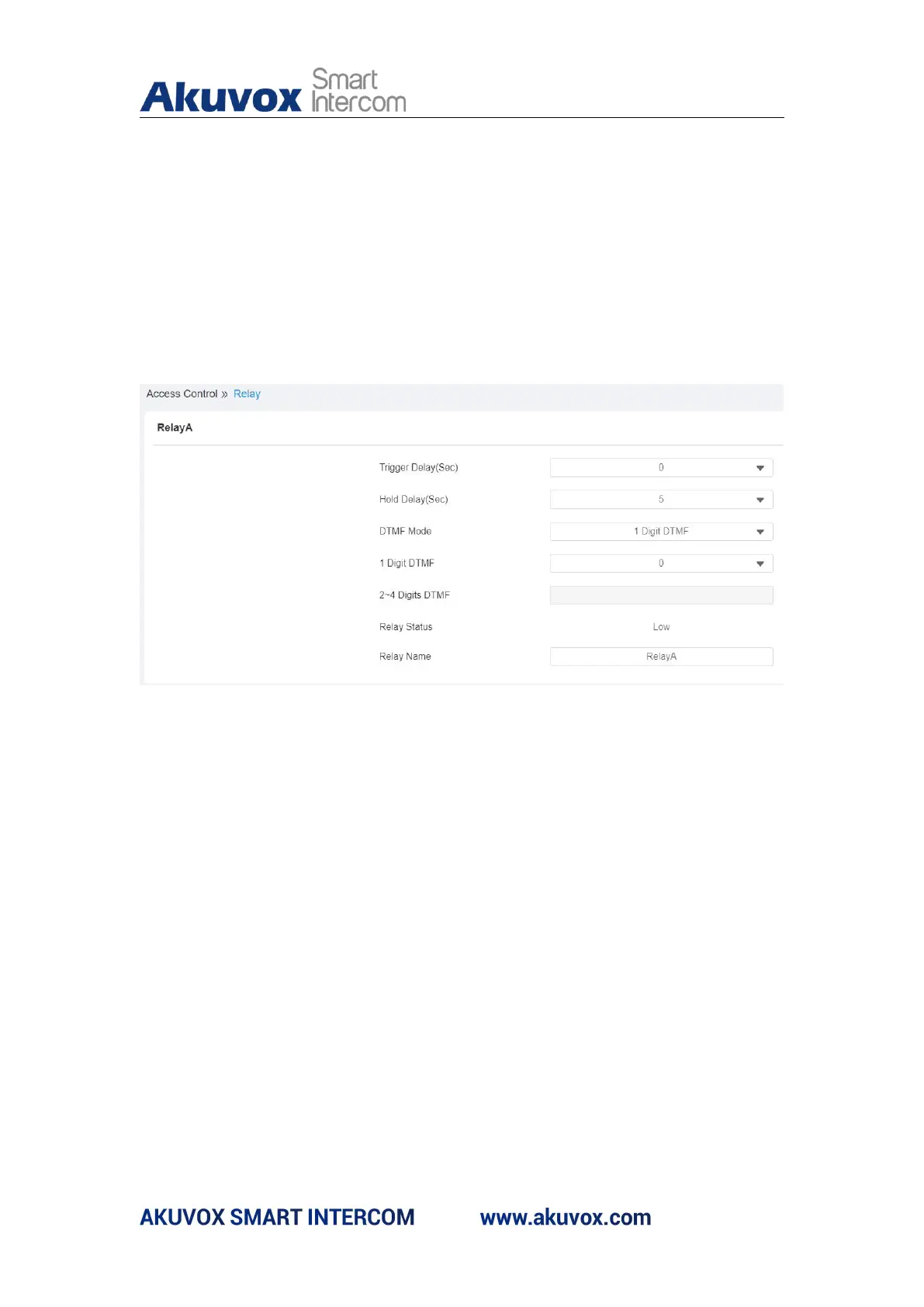

required to set up DTMF code along with relays. Path: Access Control >
Relay > Relay.
Parameter Set-up:
Trigger Delay (Sec): set the relay trigger delay timing (Ranging from 1-10
Sec.) For example, if you set the delay time as “5” sec. then the relay will
not triggered until 5 seconds after you press “unlock “ tab.
Hold Delay (Sec): set the relay hold delay timing (Ranging from 1-10 Sec.)
For example, if you set the hold delay time as “ 5” Sec. then the relay will
be delayed for 5 after the door is unlocked.
DTMF Mode: select the number of DTMF digit for the door access control
(Ranging from 1-4 digits ) For example, you can select 1 digit DTMF code
or 2-digit DTMF code etc., according to your need.
1-digt DTMF : set the 1-digt DTMF code within range from ( 0-9 and *,#).
2~4 Digits DTMF: set the DTMF code according to the DMTP Option
setting. For example, you are required to set the 3-digits DTMF code if
