E18 Door Phone Administrator Guide
14. Monitor and Image
14.1.Mjpeg Image Capturing
E18C allow you to capture the Mjpeg format monitoring image if needed. You
can enable the Mjpeg function and set the image quality on the web interface.

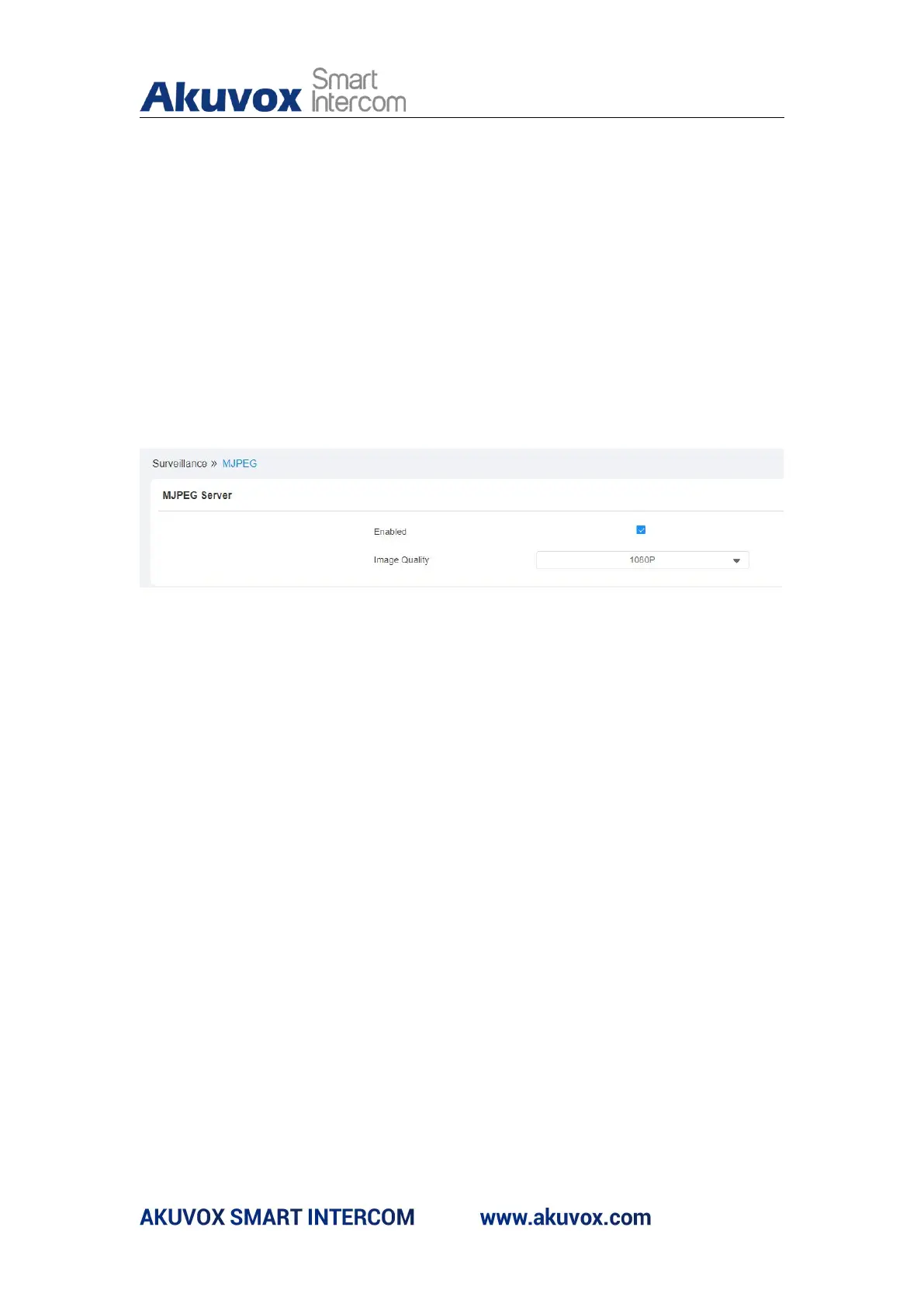

Path: Surveillance > MJPEG > Mjpeg Server
Parameter Set-up:
Enabled: Tick the check box to enable or disable the Mjpeg service.
Image Quality: select the quality for the image capturing among seven
options: QCIF, QVGA, CIF, VGA, 4CIF, 720P, 1080P
After the Mjpeg service is enabled, you can capture the image from the door
phone using following three types of URL format:
http:// device ip:8080/picture.cgi
http://device ip:8080/picture.jpg
http://device ip:8080/jpeg.cgi
For example, if you want to capture the jpg format image of door phone with
the IP address:192.168.1.104, you can do as follows:
1. Enter “http://192.168.1.104:8080/picture.jpg” on the web browser
2. Press Enter key in your keyboard to capture the image.
