E18 Door Phone Administrator Guide
20. Integration with Third Party Device
20.1.Integration via Wiegand
The door phone Wiegand interface is used to connect the door phone to the
third party devices for the data transmission via weigand protocol. If you
want to integrate the E18C door phone with the third party devices via

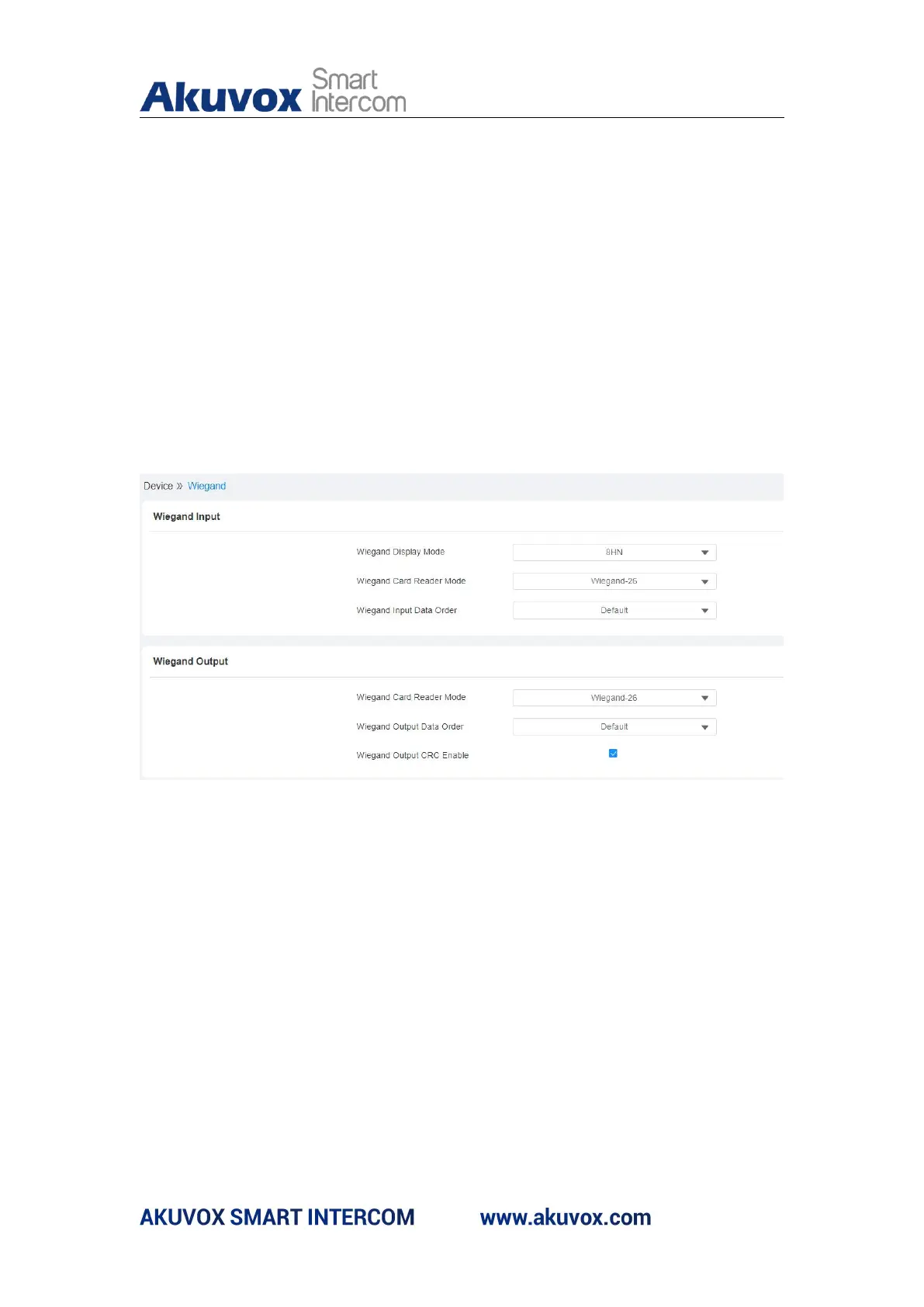

Wiegand, you can configure the Wiegand on the web interface. Path: Device >
Wiegand > Wiegand.
Parameter set-up:
Wiegand Display Mode
：
select Wigand Card code format among 8H10D;
6H3D5D; 6H8D; 8HN; 8HR; RAW.
Wiegand Card Reader Mode: set the wiegand data transmission format
among three options: “ Wiegand 26”, “ Wiegand 34”, “ Wiegand 58”. The
transmission format should be identical between the door phone and the
device to be integrated.
Wiegand Input Data Order
：
set the Wiegand input data sequence between
“ Normal” and “Reversed” if you select “ Reversed” then the input card
number will be reversed an vice versa.
Wiegand Output Data Order: set the Wiegand output data sequence
