E18 Door Phone Administrator Guide

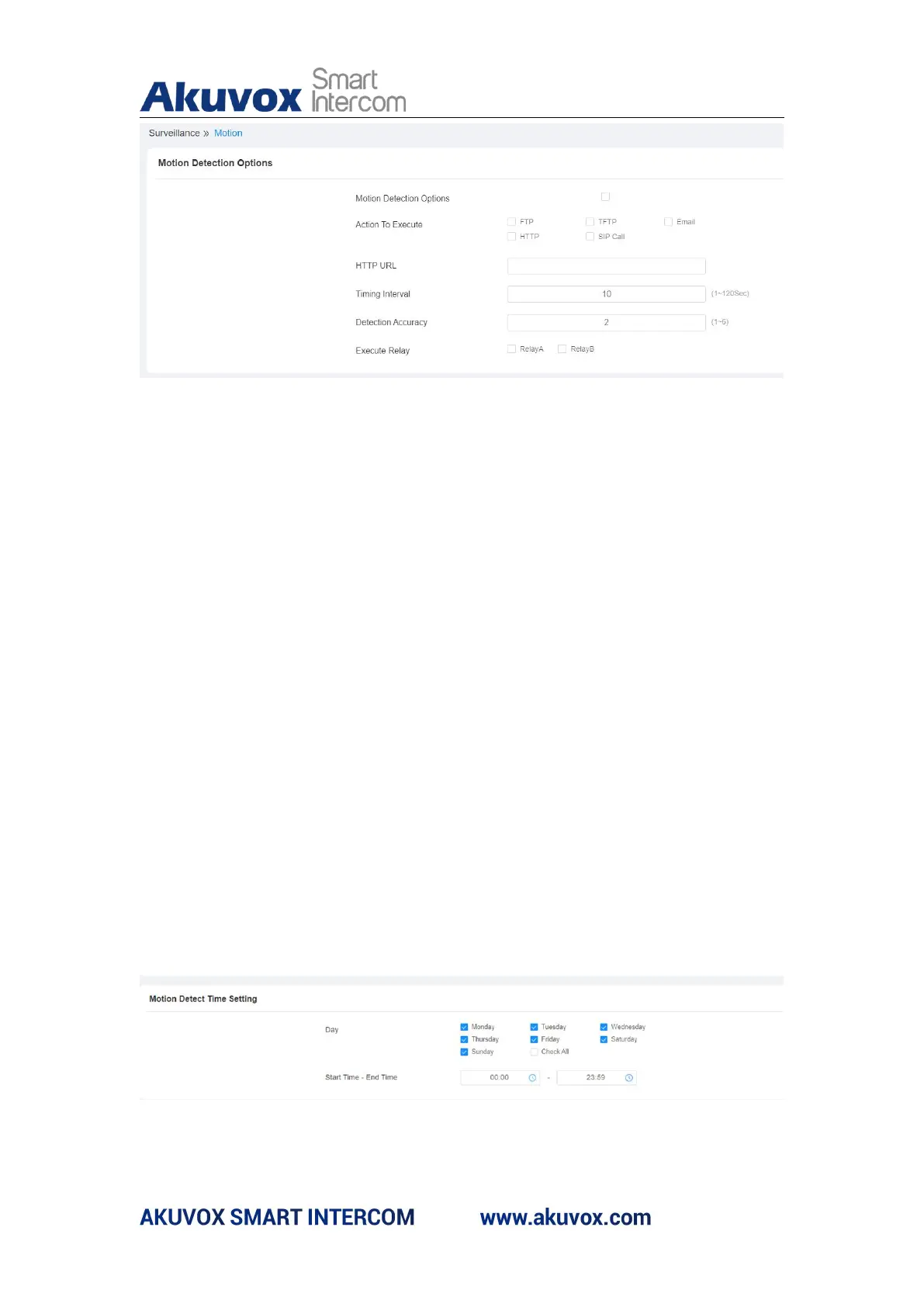

Parameter Set-up:
Motion Detection Options: tick the check box to enable the motion
detection function.
Action to Execute: select the action to be executed ( FTP、TFTP 、Email 、
HTTP、SIP Call) after motion detection is triggered.
HTTP URL: enter the HTTP URL command which will be sent to the
designated server for certain action.
Time Interval: set the time interval in the same away as you do on the
device.
Detection Accuracy: set the detection accuracy for the detection
sensitivity. The small value it is, the greater sensitivity. the default
detection accuracy value is “20”.
Execute Relay : select the relay A or relay B to be triggered when then
motion detection is triggered.
You can also set the motion detection time schedule.
