Akuvox R20A Series User Manual

Single Tenant Door Phone
AKUVOX SMART INTERCOM www.akuvox.com
40

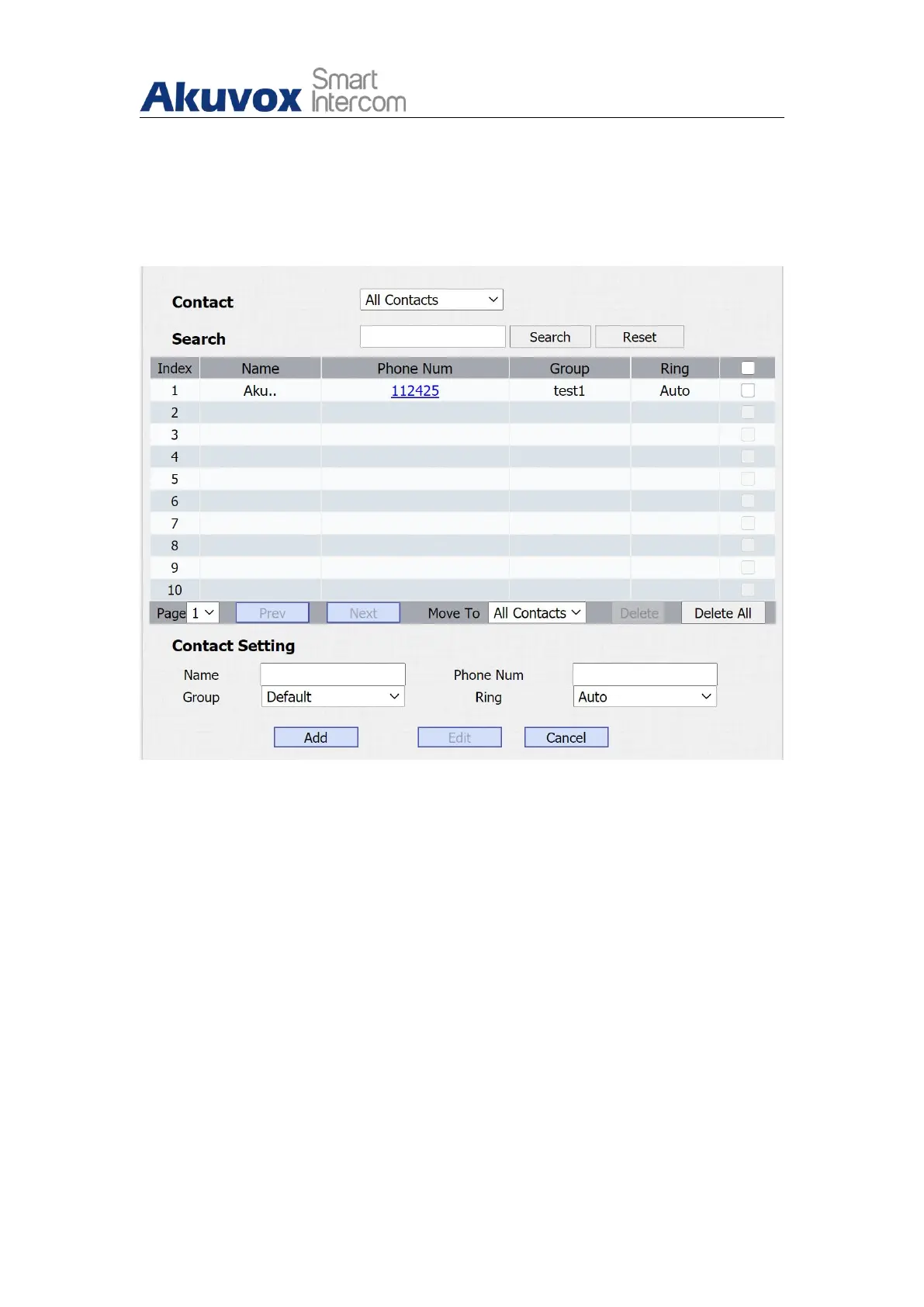

12.2.Managing Contacts
You can search, create, display ,edit and delete the contacts in your phone
book.
Parameters Set-up
：
 Name: enter the contact name, which is required.
 Phone: enter the phone number of the contact, which is required.
 Group: click the green tab to select the group name you have created. You
cannot select the group name If no group name has been created.
 Account: select which SIP account will used to to call out. If using IP
direct call, it is not available.
 Priority of Call: up to 3 numbers in one group and setup the call sequence
for these numbers.

Akuvox R20A Series Specifications

General

Installation	Wall-mounted
Protection level	IP65
RS485	Yes
Camera	2MP
Audio	Built-in microphone and speaker
Network	10/100Mbps Ethernet
Protocols	SIP, RTSP
Power	PoE or 12V DC
