Single Tenant Door Phone
AKUVOX SMART INTERCOM www.akuvox.com
41

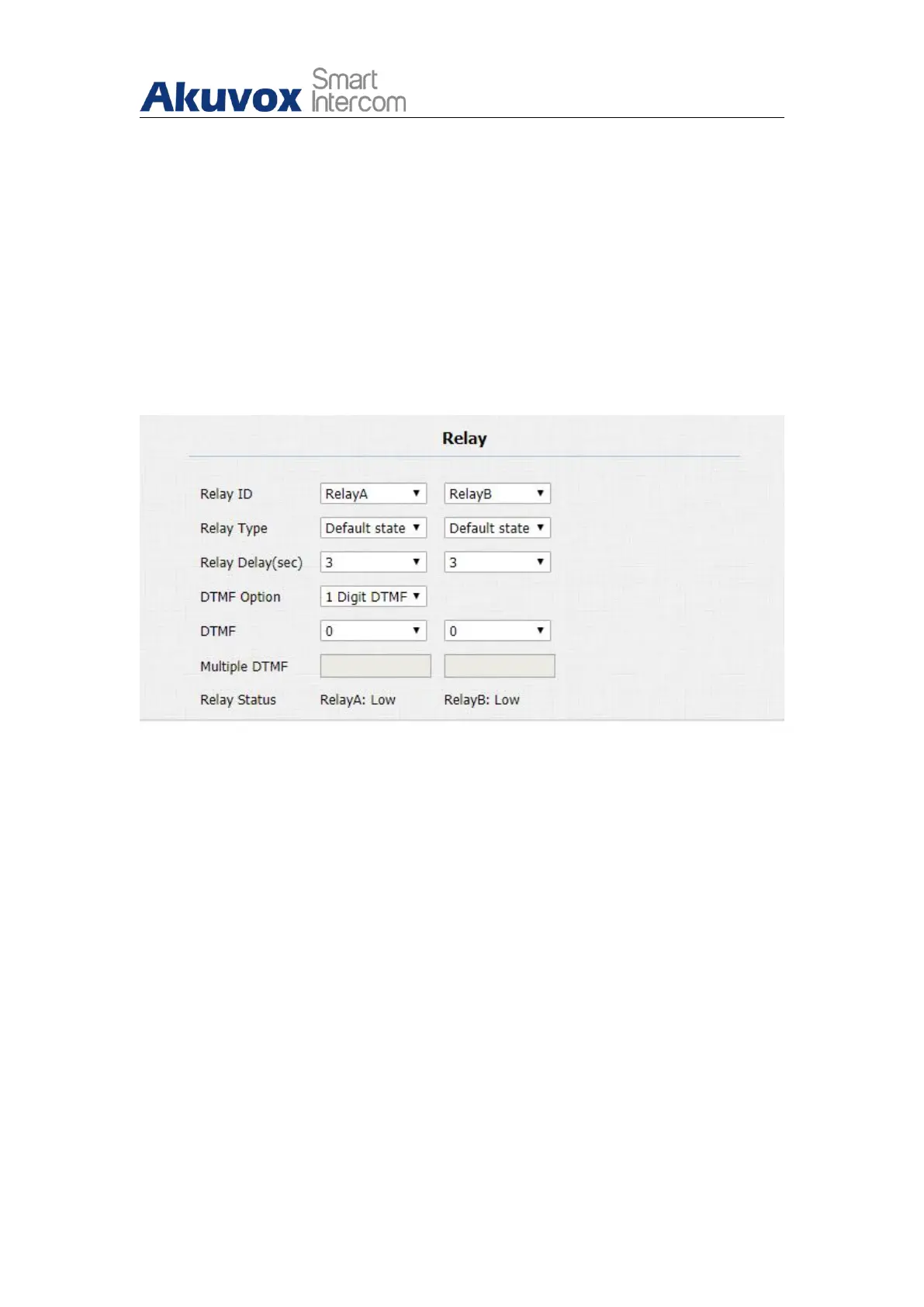

13. Relay Setting
13.1.Relay Switch Setting
You can configure the relay switch(es) and DTMF for the door access on the
web Intercom > Relay interface.
Parameter Set-up:
Relay Delay (Sec): set the relay trigger delay timing (Ranging from 1-10
Sec.) For example, if you set the delay time as 5 Sec. Then the relay will
not triggered until 5 seconds after you press unlock tab.
DTMF Option: select the number of DTMF digit for the door access
control (Ranging from 1-4 digits ) For example, you can select 1 digit
DTMF code or 2-digit DTMF code etc., according to your need.
DTMF : set the 1-digt DTMF code within range from ( 0-9 and *,#).
Multiple DTMF: set the DTMF code according to the DMTP Option setting.
For example, you are required to set the 3-digits DTMF code if DTMF
Mode is set as 3-digits.
Relay Status: relay status is low by default which means normally
