Rockwell Automation Publication 1756-UM535D-EN-P - November 2012 69
Install the Enhanced Redundancy System Chapter 3
3. Wait for the redundancy module to complete its start-up scroll messages.
Check Module and status indicators. Wait 45 seconds before you begin
updating the 1756-RM firmware. During this time, the redundancy
module conducts internal operations to prepare for an update.
4. Launch ControlFLASH software and click Next to begin the update
process.

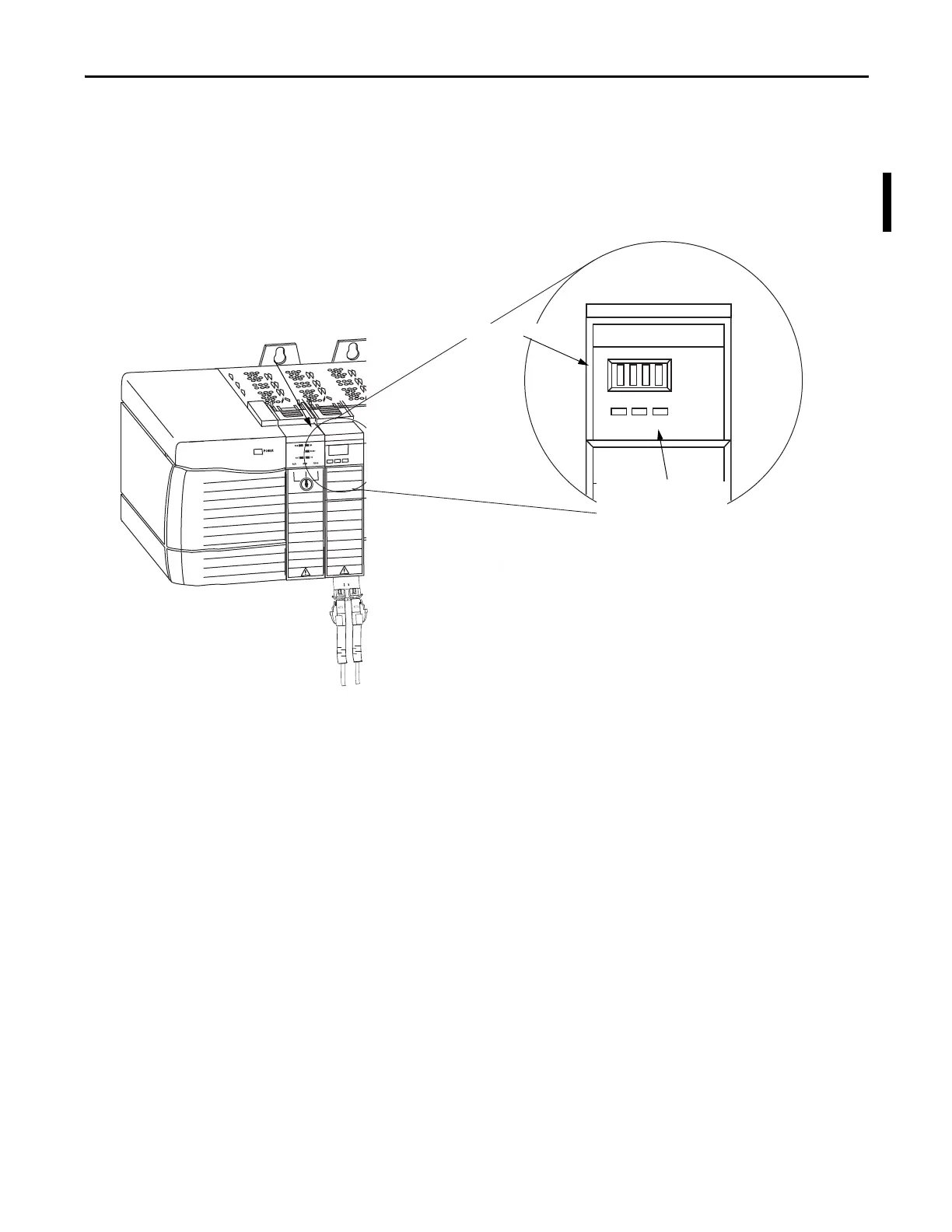

Logix5563
Redundancy Module
Redundancy Module
CH2 CH1 OK
Alphanumeric Display
OK indicator is red during self-
test, and turns green if
firmware is already
downloaded.
Power Supply
indicator is green.
If it is a new module, wait until APPLICATION UPDATE
REQUIRED is displayed. The status indicator flashes red.
To Next Page
