Chapter 4 Configure the EtherNet/IP Network
This graphic shows an example of an operating DLR network that includes an
enhanced redundancy system.

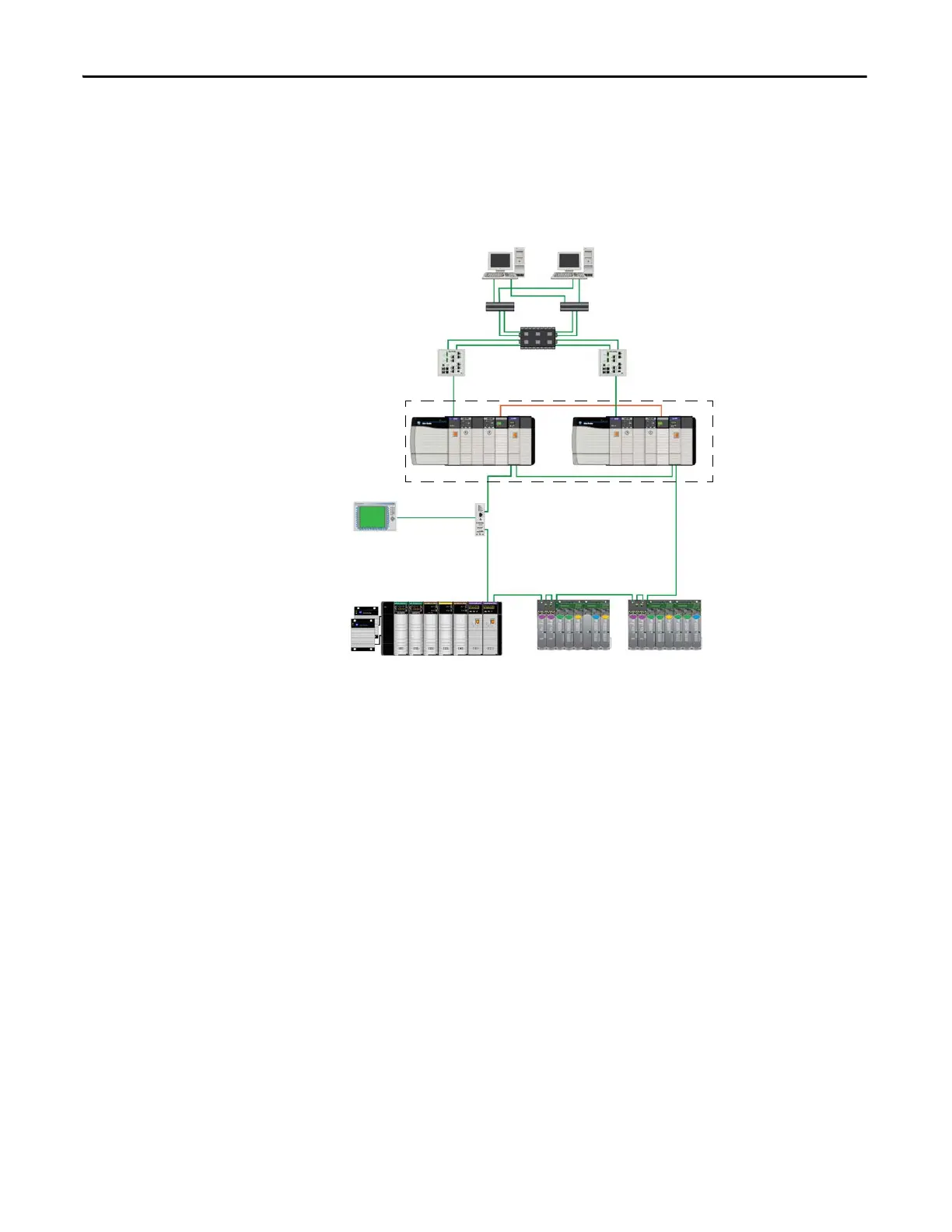

Figure 24 - Enhanced Redundancy System in a DLR Network
Stratix 8000™ Switches
Redundant Chassis Pair
HMI Connected via
1783-ETAP Taps
Remote ControlLogix Chassis with Redundant Power
Supplies and I/O Modules
1715 Redundant I/O System
Cisco Switch
FactoryTalk Application
