92 Rockwell Automation Publication 1756-UM535D-EN-P - November 2012
Chapter 4 Configure the EtherNet/IP Network
2. Configure and enable one active supervisor and any back-up nodes on the
network.
Use either of these tools to configure and enable supervisor nodes on a
DLR network:
• RSLogix 5000 programming software
• RSLinx Classic communication software
3. Complete the physical connections on the network to establish a complete
and fully functioning DLR network. This figure shows the example DLR
network on page 91
with all physical connections complete.

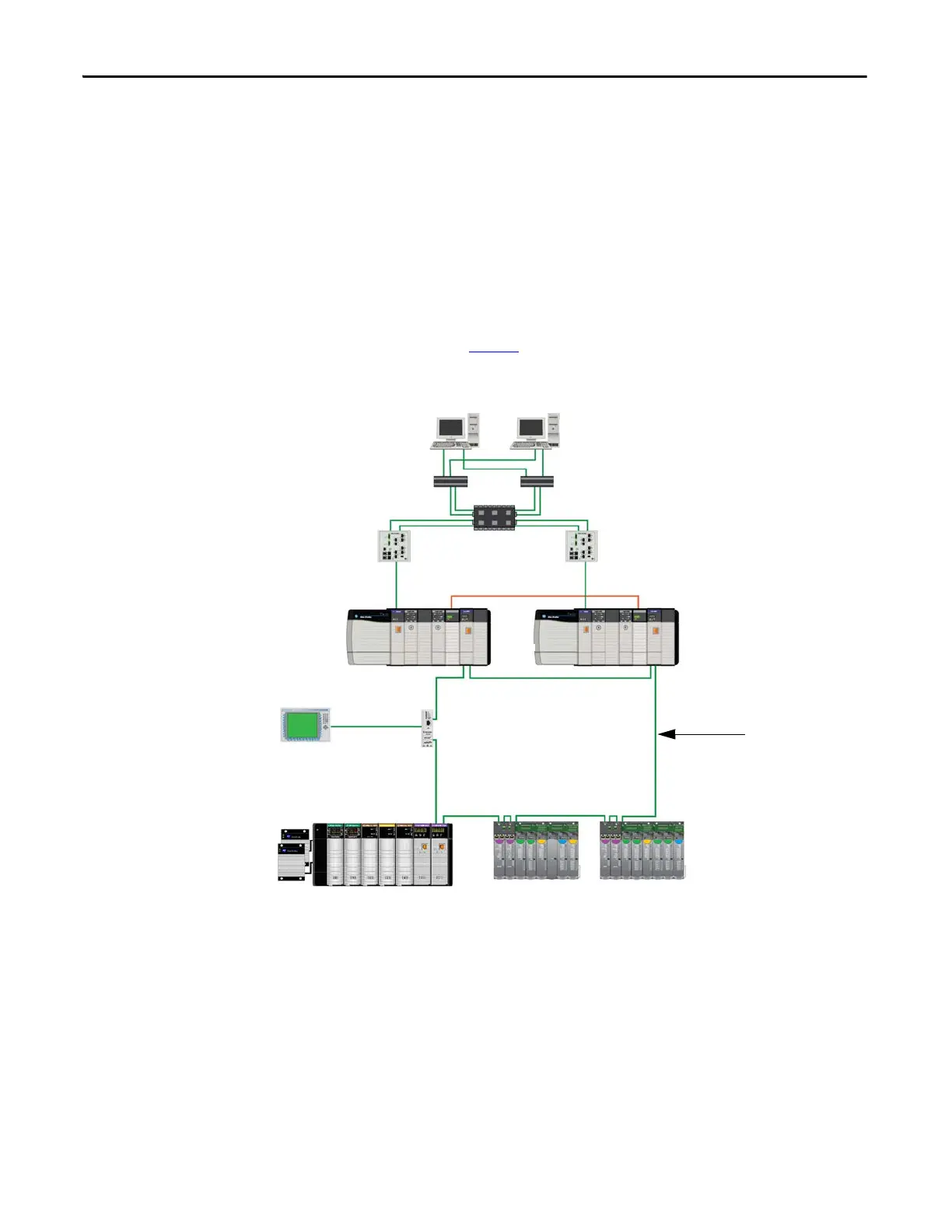

Figure 26 - Fully Connected DLR Network
4. Verify supervisor configuration and overall DLR network status with
either of these tools:
• RSLogix 5000 software
• RSLinx Classic communication software
Stratix 8000 Switches
Redundant Chassis Pair
HMI Connected via
1783-ETAP Taps
Remote ControlLogix Chassis with Redundant Power
Supplies and I/O Modules
1715 Redundant I/O System
Cisco Switch
FactoryTalk Application
Physical
connection is
made.
To Next Page
