4. Click OK.

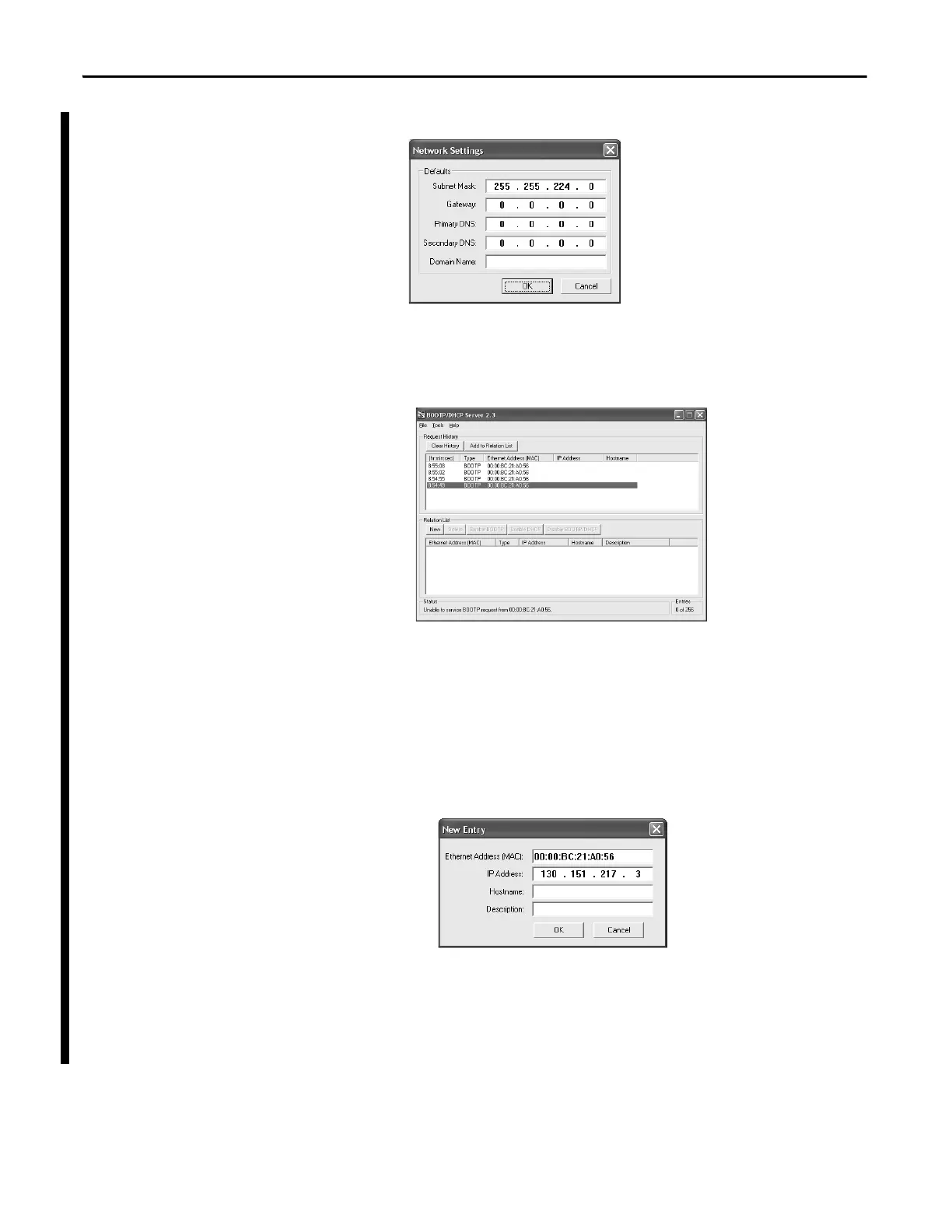

In the BOOTP Request History dialog box, you see the hardware
addresses of devices issuing BOOTP requests.
5. Double-click the hardware address of the device you want to configure.
The New Entry dialog box displays the device’s Ethernet Address (MAC).
6. Enter the IP address.
7. Click OK.
8. To permanently assign this configuration to the device, highlight the
device and click Disable BOOTP/DHCP.
When you cycle power, the device uses the configuration you assigned and
does not issue a BOOTP request.
The hardware address is on the sticker on the left-side circuit board of the
controller next to the battery.
The hardware address will be in this format: 00-0b-db-14-55-35.
