Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 155
Collecting and Reviewing Data Chapter 5

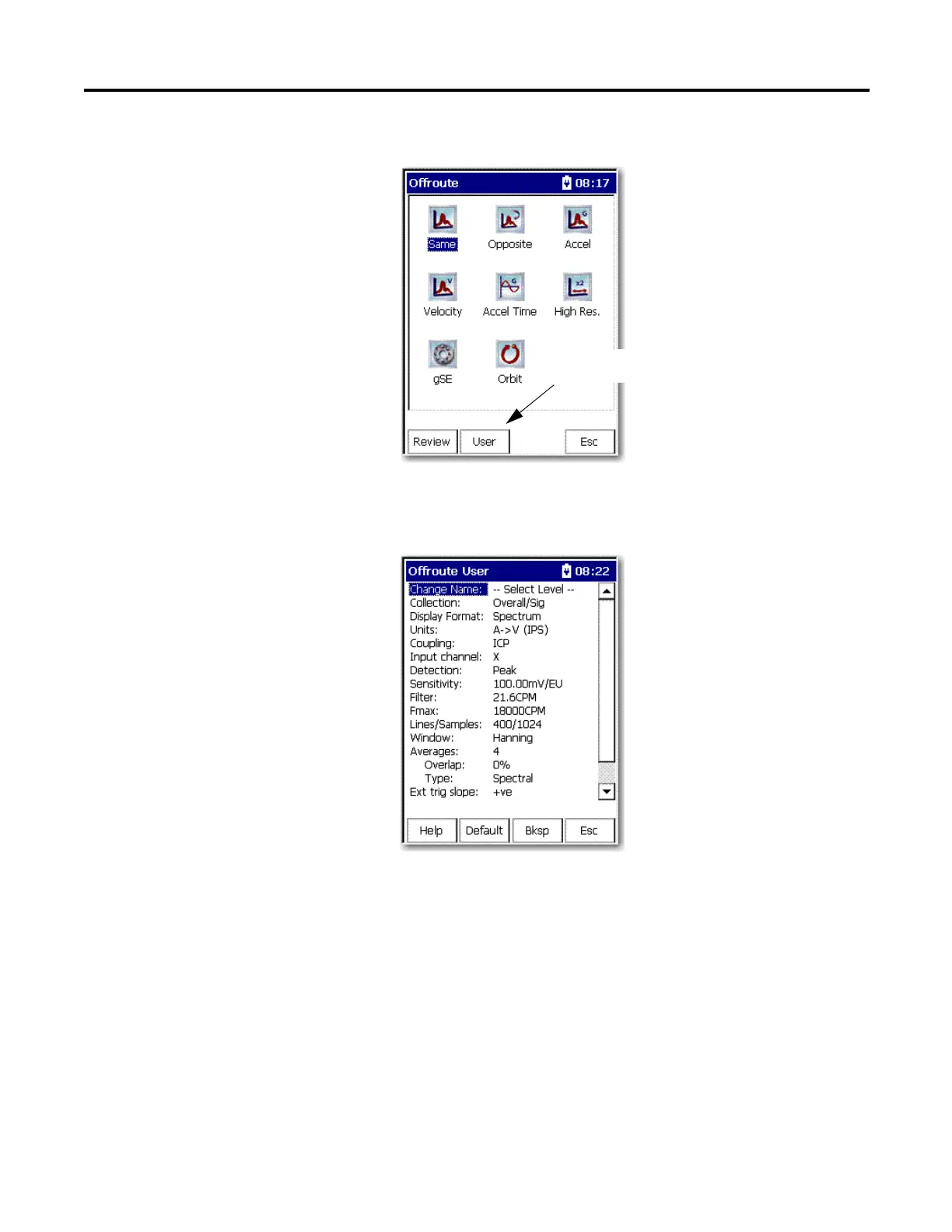

The Offroute measurement screen appears.
4. Press F2 (User).
The Offroute User screen appears.
5. Select a parameter you want to change and press the Right arrow key to
open the menu of choices.
6. Select your choice by using the arrow keys, or typing in a value using the
numeric key pad.
7. Press the Left arrow key to save your choices.
Use the descriptions in this table to help you configure the parameters in the
Offroute User screen.
Press F2 (User) to create a user-
defined point.
