Allen-Bradley Dynamix 2500 User Manual

Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 179
Multi-channel Measurements Chapter 6
3. Use the Up and Down arrows to expand and compress the orbit.
4. Press 0 (Shift) and F4 (View).
5. Select the View option to display the Time Waveform, x1, x2 or x3.

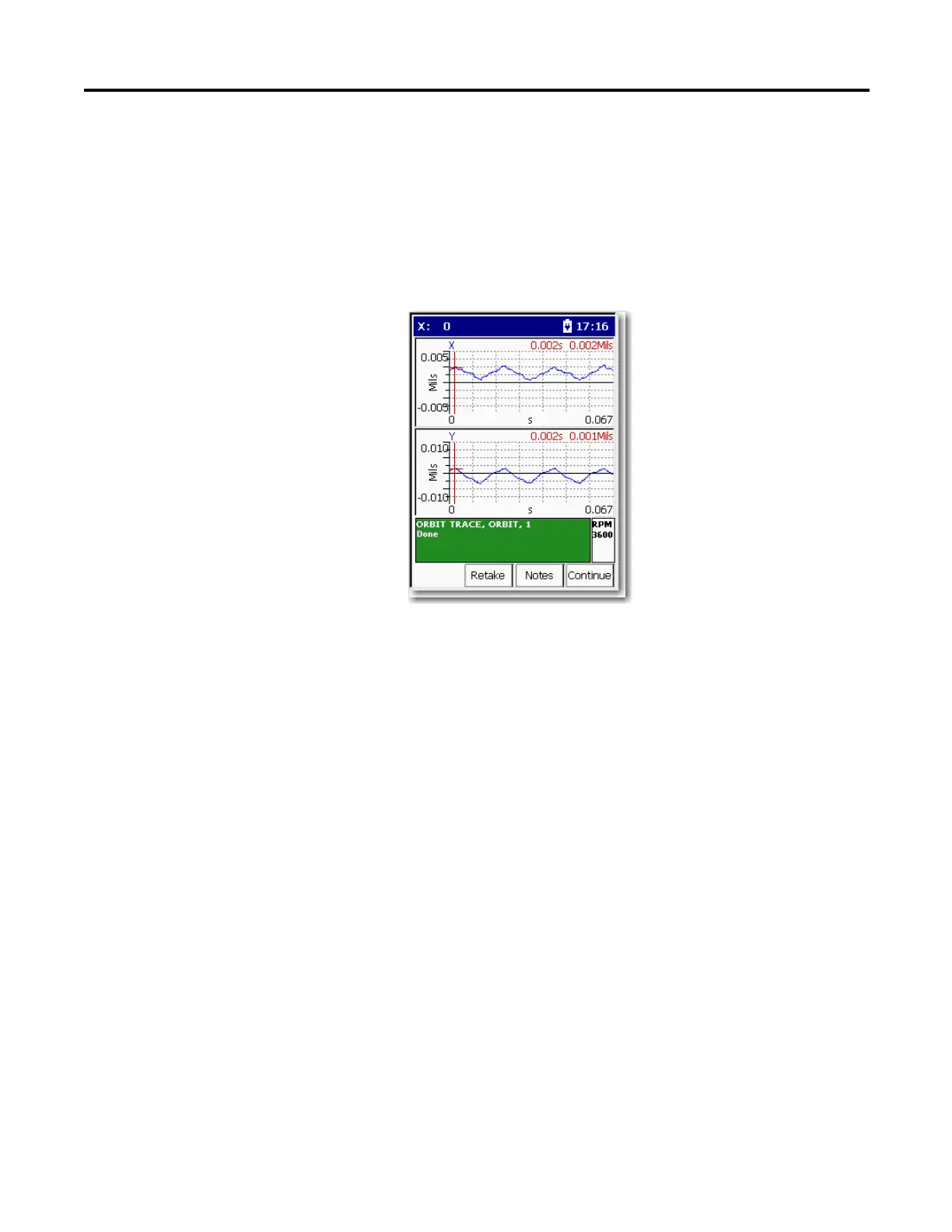

6. Select Timewave and Press F4 (View) to display the time plot.
The following screen appears.
View Options
The View options for orbit points are the following:
• Orbit View (default)
• Point Info
• Time X Time Y
• 1x
• 2x
• 3x
