Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 203
Multi-channel Measurements Chapter 6

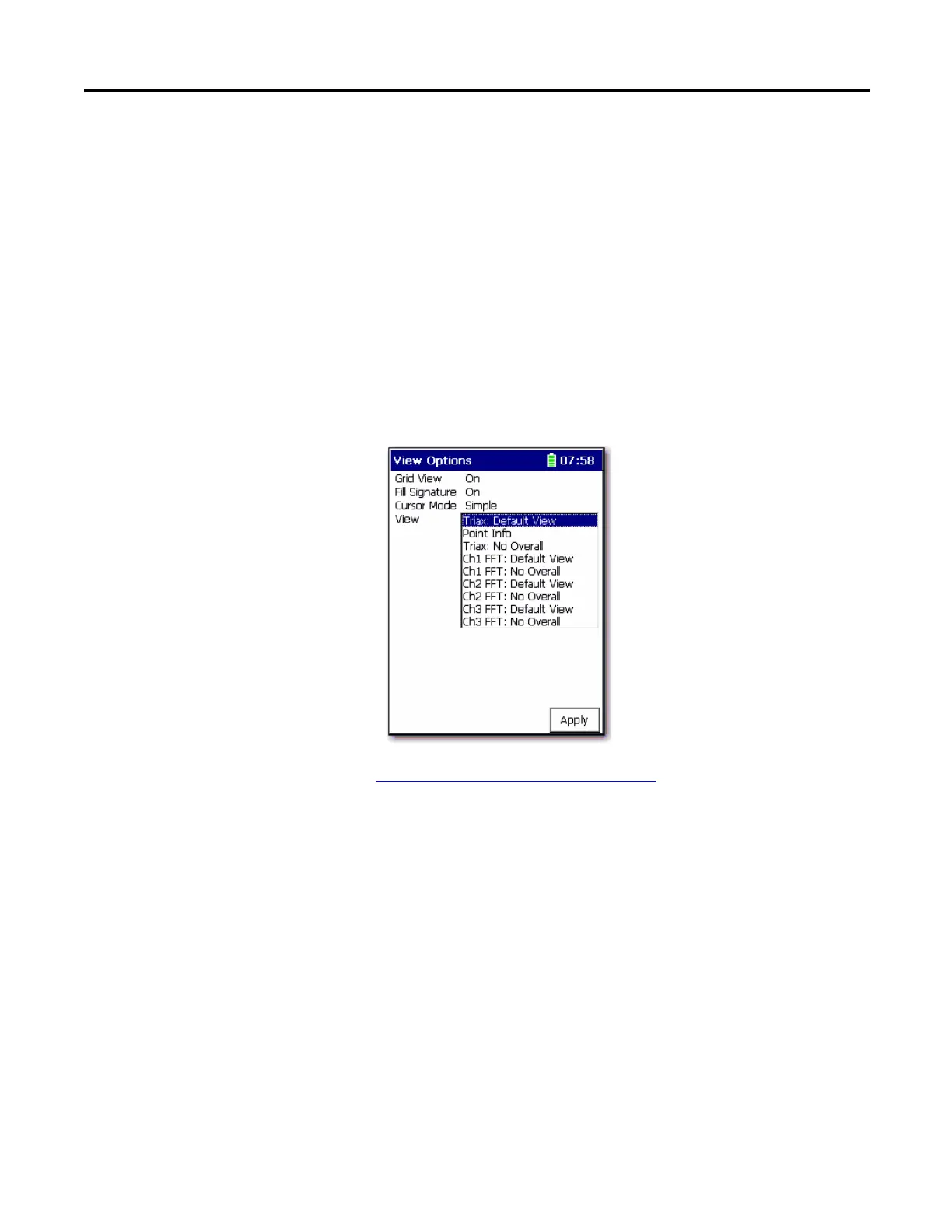

View Options
These are the View menu options:
• Tria x : Default V iew
• POINT Info
• Tria x : No Overall
• Ch1 FFT: Default View
• Ch1 FFT: No Overall
• Ch2 FFT: Default View
• Ch2 FFT: No Overall
• Ch3 FFT: Default View
• Ch3 FFT: No Overall
See Set Up Tri-axial Measurements on page 102
for more information.
Follow these steps to configure an Offroute tri-axial measurement.
1. From the Route Manager screen, select a route and press Enter.
2. Press F1 (Config).
3. Select either Single Shot or Continuous operation.
Single Shot halts when the instrument front end has settled and the data is
stable, where as in Continuous mode the instrument constantly analyzes
and displays the moving signals until you store the data by pressing Enter.
4. From the Offroute main menu, press F2 (User).
