Using the LCD 121

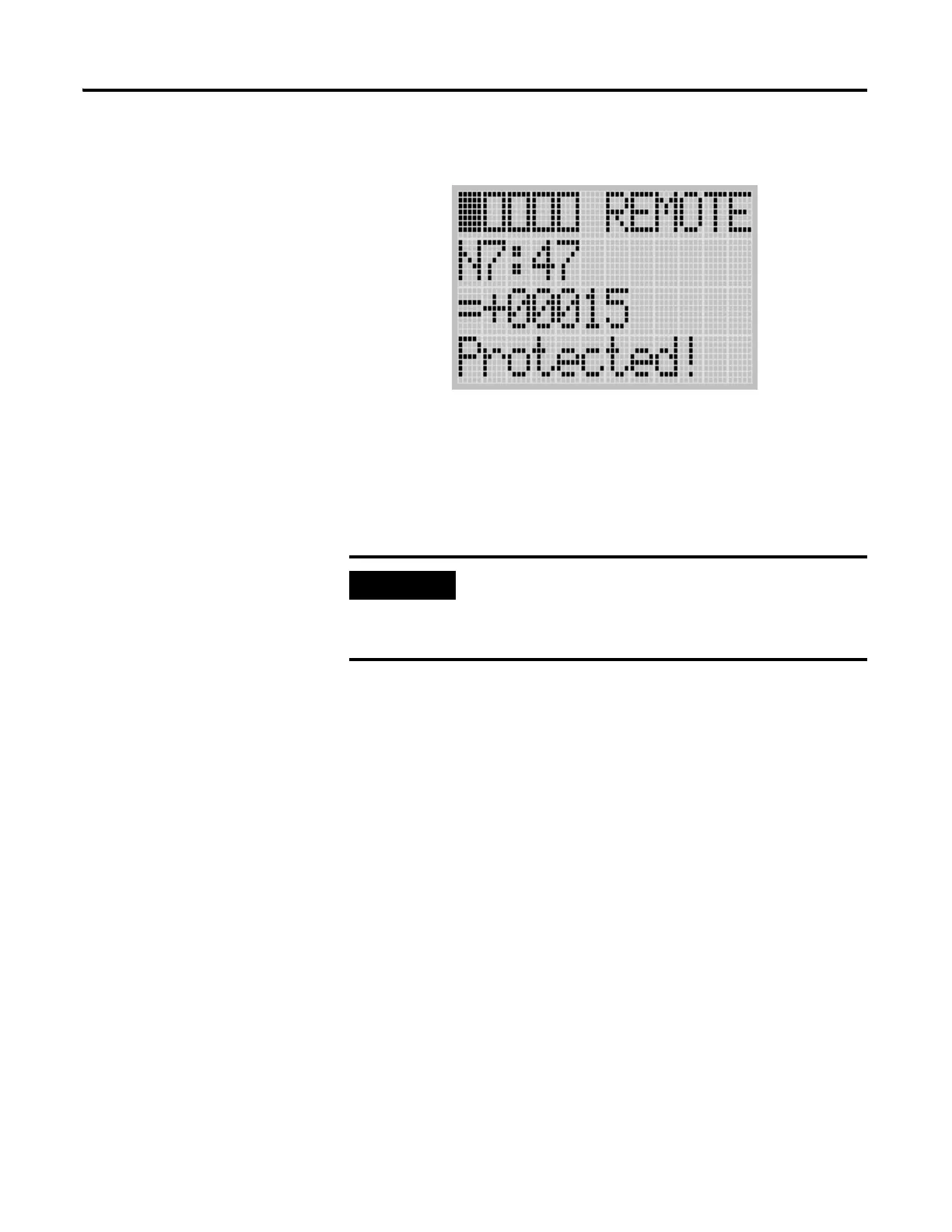

13. Hold down the Up key until the target word becomes “47”, as shown
below.
Press the Up key again, and you will find the target word does not
change to “48”. It is because the maximum range of words you can
monitor with the LCD is the first 48 words of the specified target
integer file.
14. Try to press the Up and Down keys to change the target word to
another word. Try to change its data value using the OK, Up, Down,
Right and Left keys.
15. If you have finished monitoring the integer file N7, press the ESC key to
return to the Main Menu screen, as shown in step 2.
IMPORTANT
The maximum range of words you can monitor with
the Integer File Monitoring functionality on the LCD
is the first 48 words (0 through 47) of the target
integer file.

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
