Allen-Bradley MicroLogix 1100 User Manual

Publication 1763-UM001E-EN-P - June 2015
112 Using the LCD
Follow these steps to view and change the data values of the bit file B3.
1. On the Main Menu screen, select Monitoring by using the Up and
Down keys on the LCD keypad.

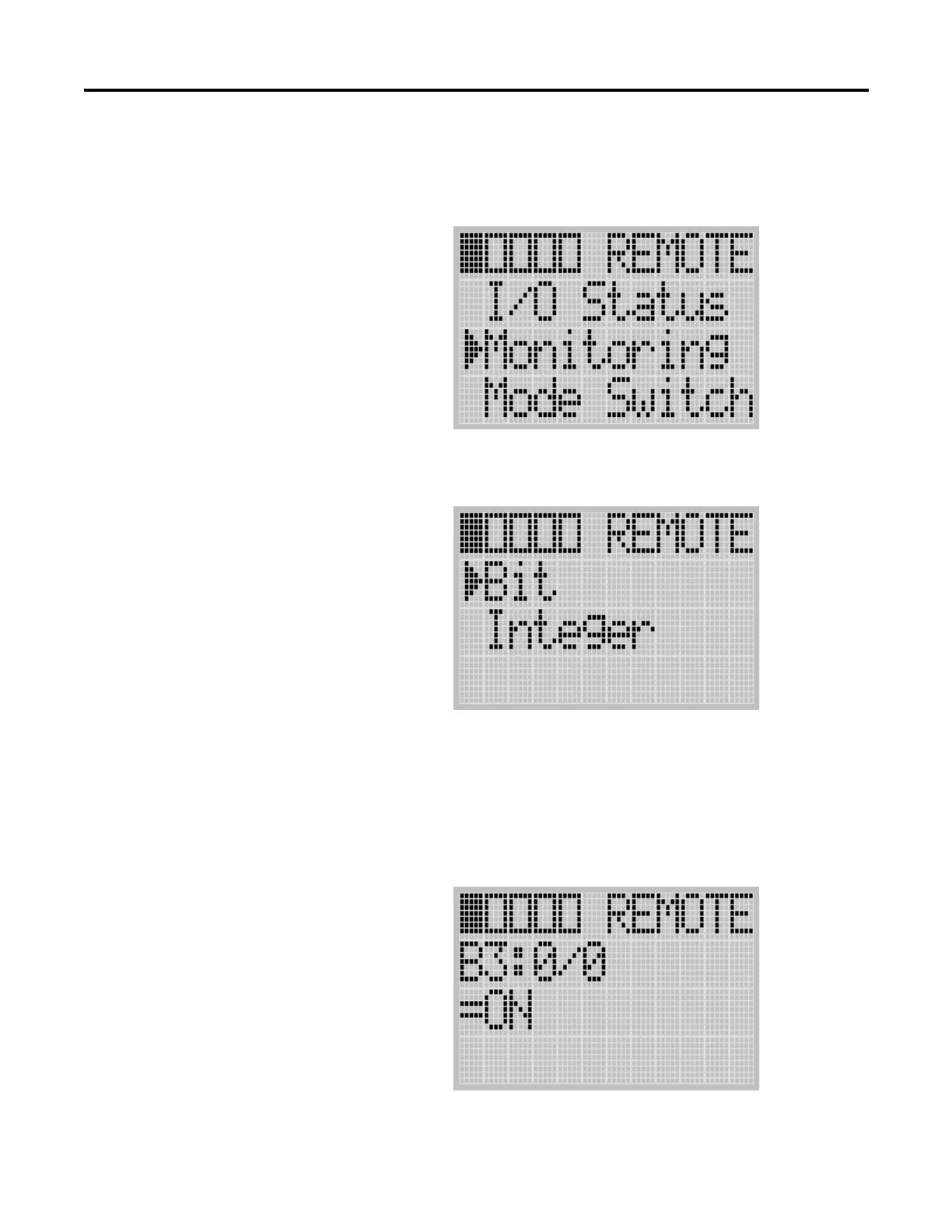

2. Then, press the OK key on the LCD keypad. The Bit/Integer File Select
screen is displayed, as shown below.
3. If Bit is selected, as shown in step 2, press the OK key.
If not selected, press the Up or Down key to select it and then press the
OK key.
4. The current data value (ON) of the B3:0/0 bit is displayed, as shown
below. Note that “0/0” is flashing, which means the cursor is at the
target bit position.

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
