Chapter 3
Host Computers and Display Terminals
3–3
The decoder’s ability to transmit decoded bar code data to a display terminal
can be enabled or disabled. If your host computer does not echo data, you
can enable the Display Terminal port using the Enable Terminal Port
configuration bar code symbol. When the decoder decodes a bar code
symbol, it will be transmitted simultaneously to the Host Computer and
Display Terminal ports. Refer to Figure 3.2.

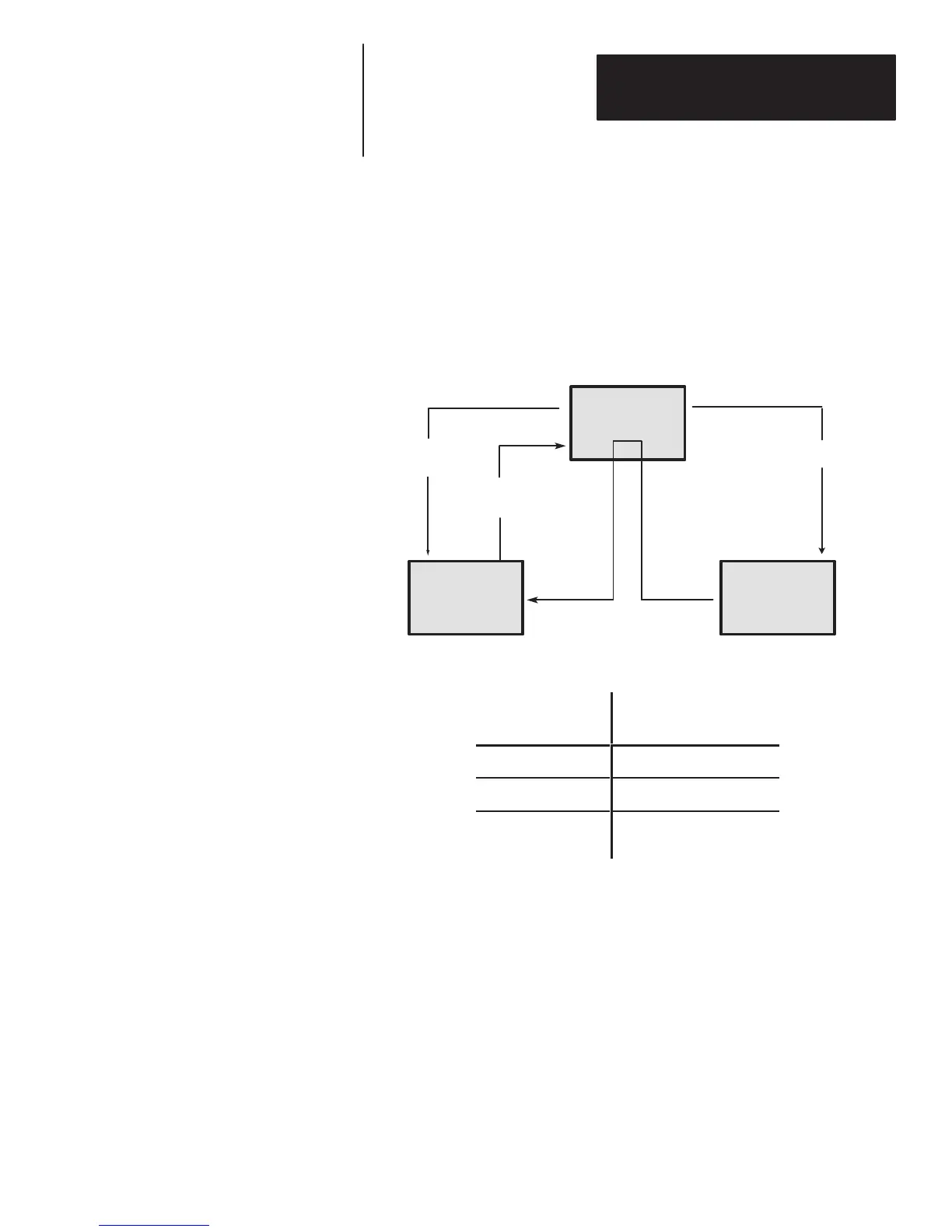

Figure 3.2
Display Terminal Port Enabled
Bar code data entered
on keyboard
Decoder
Host
Computer
Display
Terminal
Configuration
Commands
Decoded Bar code
data
Decoded Bar code
data
Transmits Receives
Host Decoder
Display Terminal Host
Decoder Host and
Display Terminal
Use this mode if your host computer does not echo data transmissions to local
terminals.
Note: If the decoder receives a Show Configuration command, the
configuration display screen will be sent to the host and local display
terminal simultaneously.
