Allen-Bradley Series B User Manual

Chapter 6

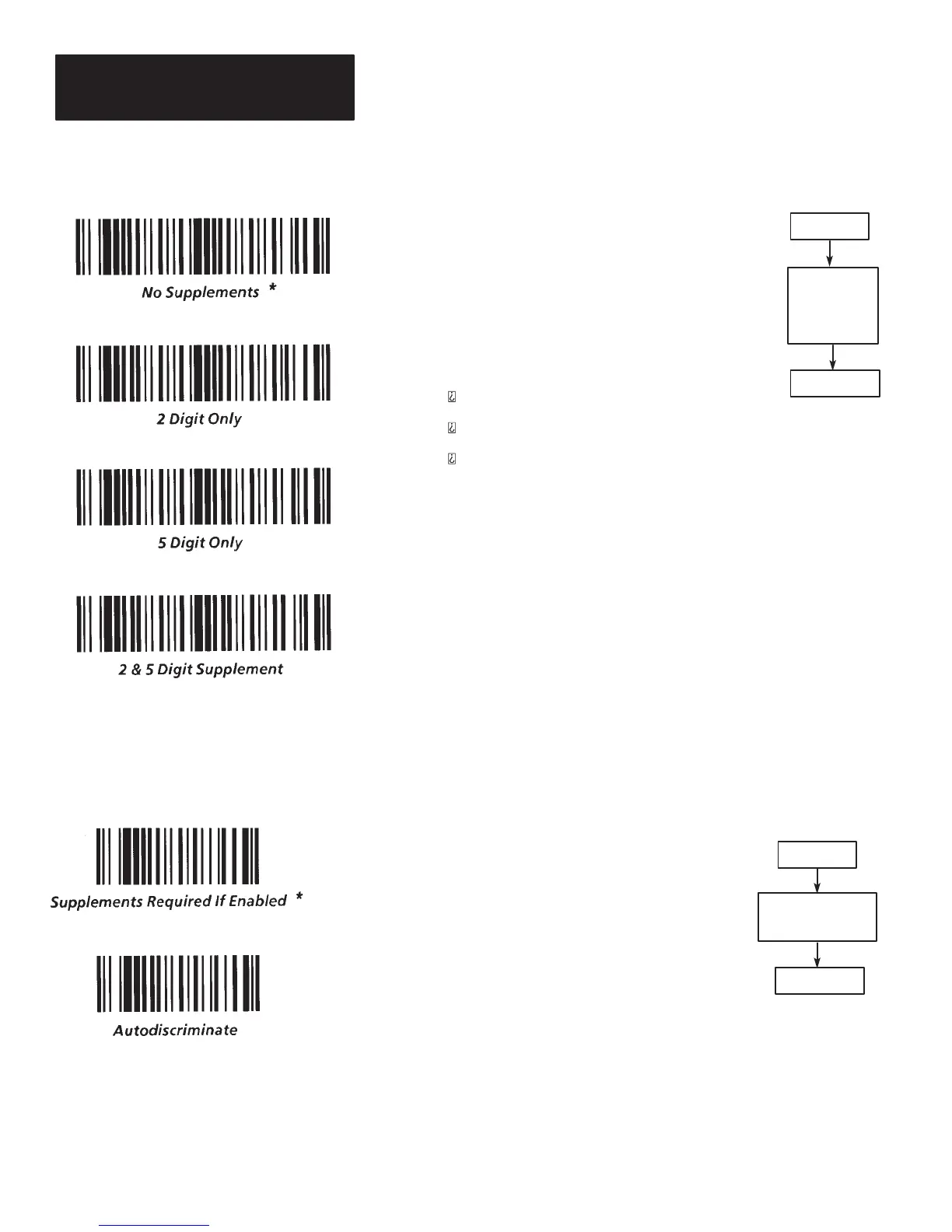

Programming Via Configuration Bar Code Symbols
6–12
Supplemental Digits (UPC/EAN)
Supplemental characters may be enabled. If they are
enabled, the symbol must be scanned in the forward
direction, supplemental characters last.
If the symbol is scanned backwards, for instance with the
reverse sweep of a laser scanner, or the symbol does
not have supplemental characters, the symbol will not be
decoded.
By specifying the supplement, you will not miss the
supplemental characters (unless they are not present).
There are three configurable options:
Symbols with two digit supplemental characters
may be read.
Symbols with five digit supplemental characters
may be read.
Symbols with two or five digit supplemental
characters may be read.
*Default is
No Supplements .
Autodiscriminate Supplements (UPC/EAN)
Automatic recognition of supplemental characters may be
enabled. This allows you to decode a symbol with or without
supplemental characters.
If supplemental characters are present in the symbol, the
symbol must be scanned in the forward direction, supplements
last.
If the symbol is scanned in the opposite direction, with the
supplements first, or the scan misses the supplemental
characters, the supplements will not be decoded.
*Default is
Supplements Required If Enabled .
Exit
Enter
•No Supplements
•2 digit only
•5 digit on;y
•2 & 5 digit
Exit
Enter
Required
or
Autodiscriminate
