Allen-Bradley Series B

Chapter 6

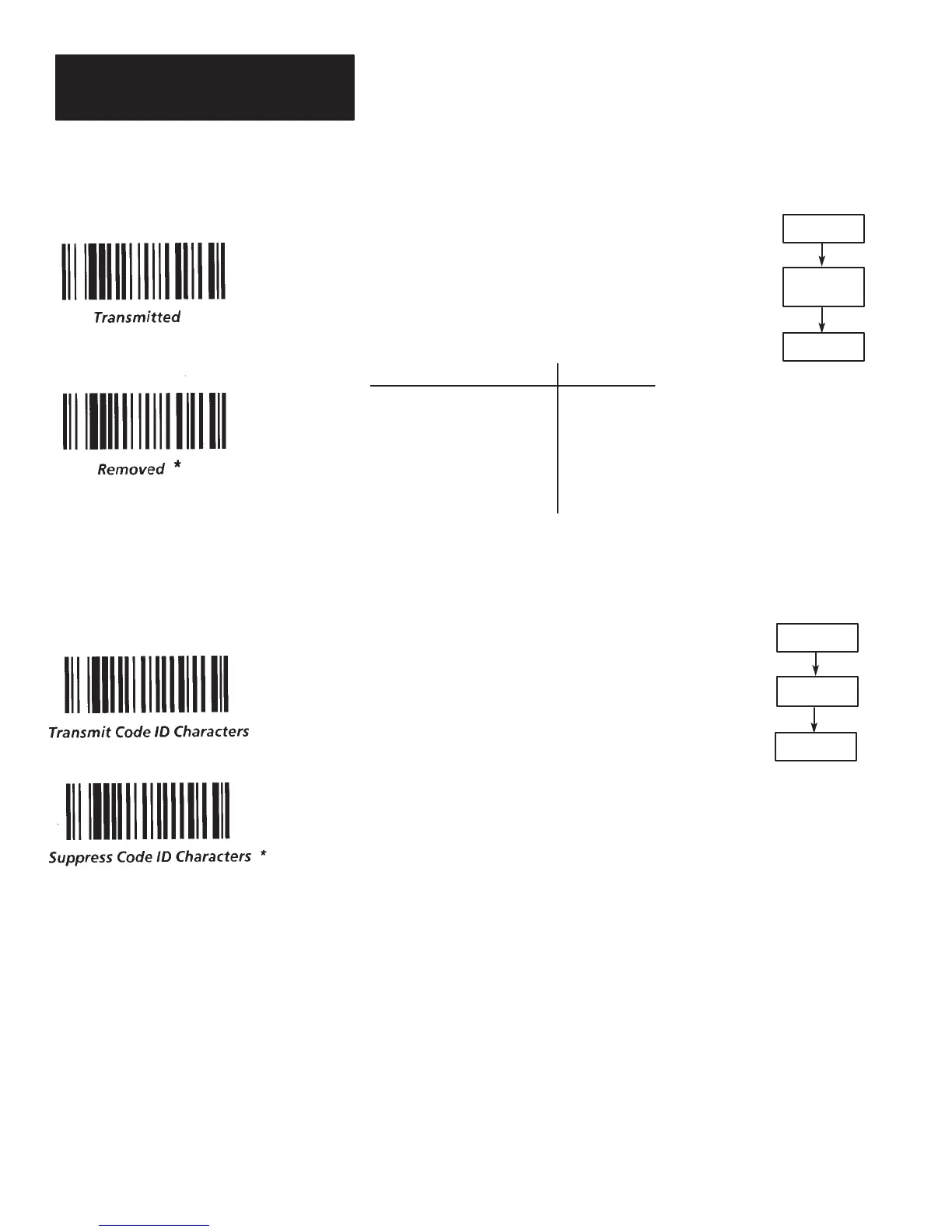

Programming Via Configuration Bar Code Symbols
6–14
Code ID Character Transmission
Code ID characters are single ASCII characters that can be added to the
beginning of decoded bar code data. These characters indicate the
symbology used to encode the data.
*Default is code ID characters suppressed.
Check Character Transmission
When check character verification is enabled for Code 39 and Interleaved 2 of 5, the
transmission of the verified check character may be deleted from the message, or
transmitted, as a data character, along with the decoded data. This option applies to
both symbologies only if check character verification is enabled.
The table below lists codes with mandatory check characters and indicates whether
the check characters are transmitted.
*Default is check character
Removed .
Enter
Check Character
Exit
Enter
Code ID
Exit
UPC A
UPC E
UPC E expanded to UPC A
EAN 8
EAN 13
CODE 128
CODE 11
Yes
Unavailable
Yes
Yes
Yes
unavailable
Yes
Code Transmit
