Allen-Bradley Series B

Chapter 6
Programming Via Configuration Bar Code Symbols
6–2
Function
Bar Code
Symbol
Escape
Sequence
Tab
Good Read Beep Tone
• •
Speaker Volume
• •
Speaker/LED
Speaker/LED Control
• •
Speaker/LED
Pulse Speaker
•
Laser Shutoff Delay
• •
Laser Redundancy Check
• •
Laser Connection Detection
• •
Laser Scanning
O
p
tions
Continuous Read Mode
• •
Options
Trigger Latch Mode
• •
The decoder’s configuration may be changed by either scanning a series of
configuration bar code symbols or sending an escape sequence to the
decoder. Programming via escape sequences is covered in Chapter 5.
Default parameters are indicated by an asterisk (*). Appendix A lists the
decoder’s default settings.

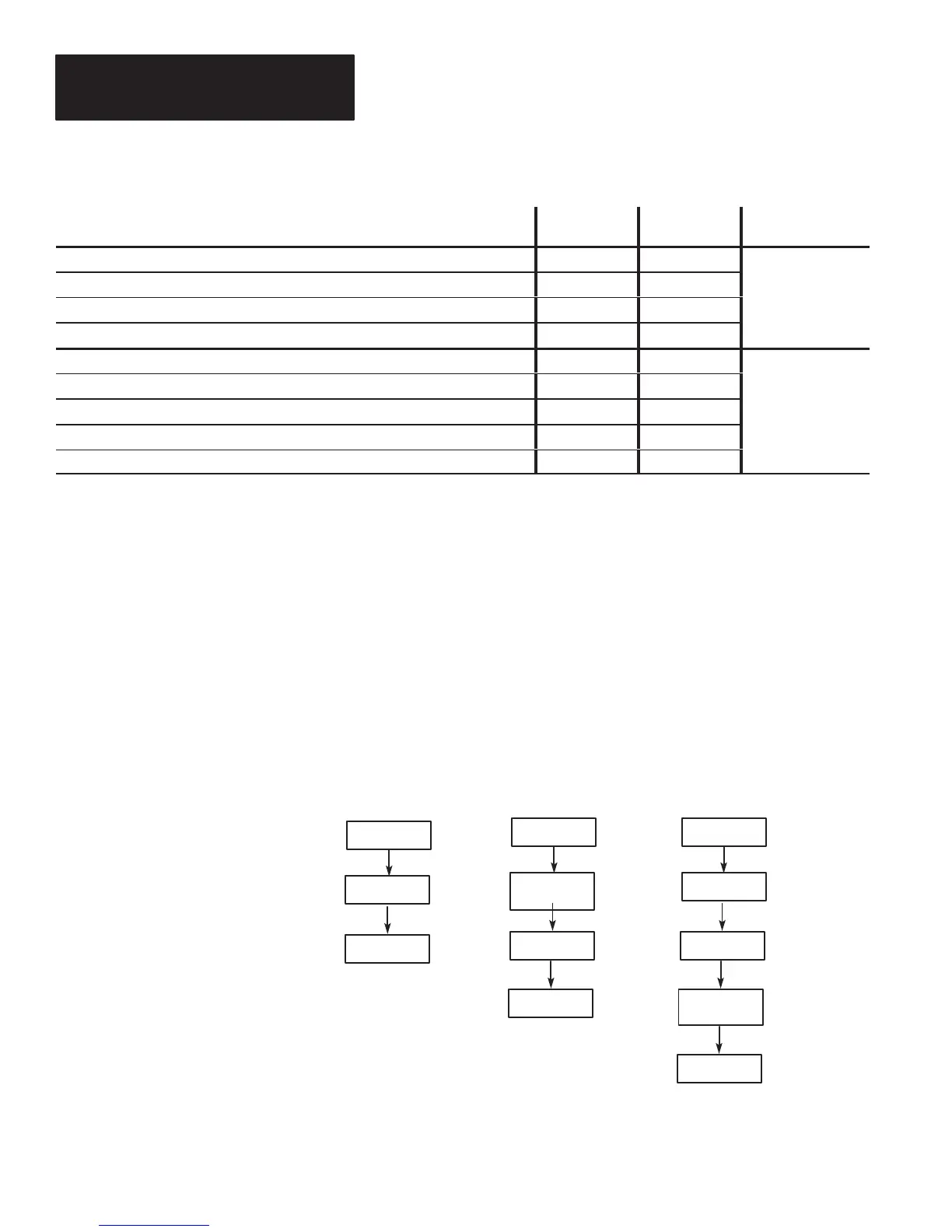

To best use the configuration bar code symbols, it is important to understand
that there are three configuration types:
Exit
Command
A single scan that
completes a
configuration.
variable
Variable Command
Exit
Characters
End Of Characters
Message
Exit
Two scans, the first scan
specifying a variable to be
changed, and the second
scan specifying the new
variable value.
Type 2
Type 3
Type 1
Enter
Enter Enter
Multiple scans: The first scan specifies
a type of message to be created, the
following scans specify the contents of
the message. When finished, the
operation is completed by scanning the
End Of Characters symbol.
Programming Features
Configuration Bar Code
Symbols
