219 Publication 1752-UM001A-EN-P - October 2006

Appendix

Application and Configuration Examples

Introduction

Emergency Stop

Application

This example shows a dual channel emergency stop switch with

manual reset.

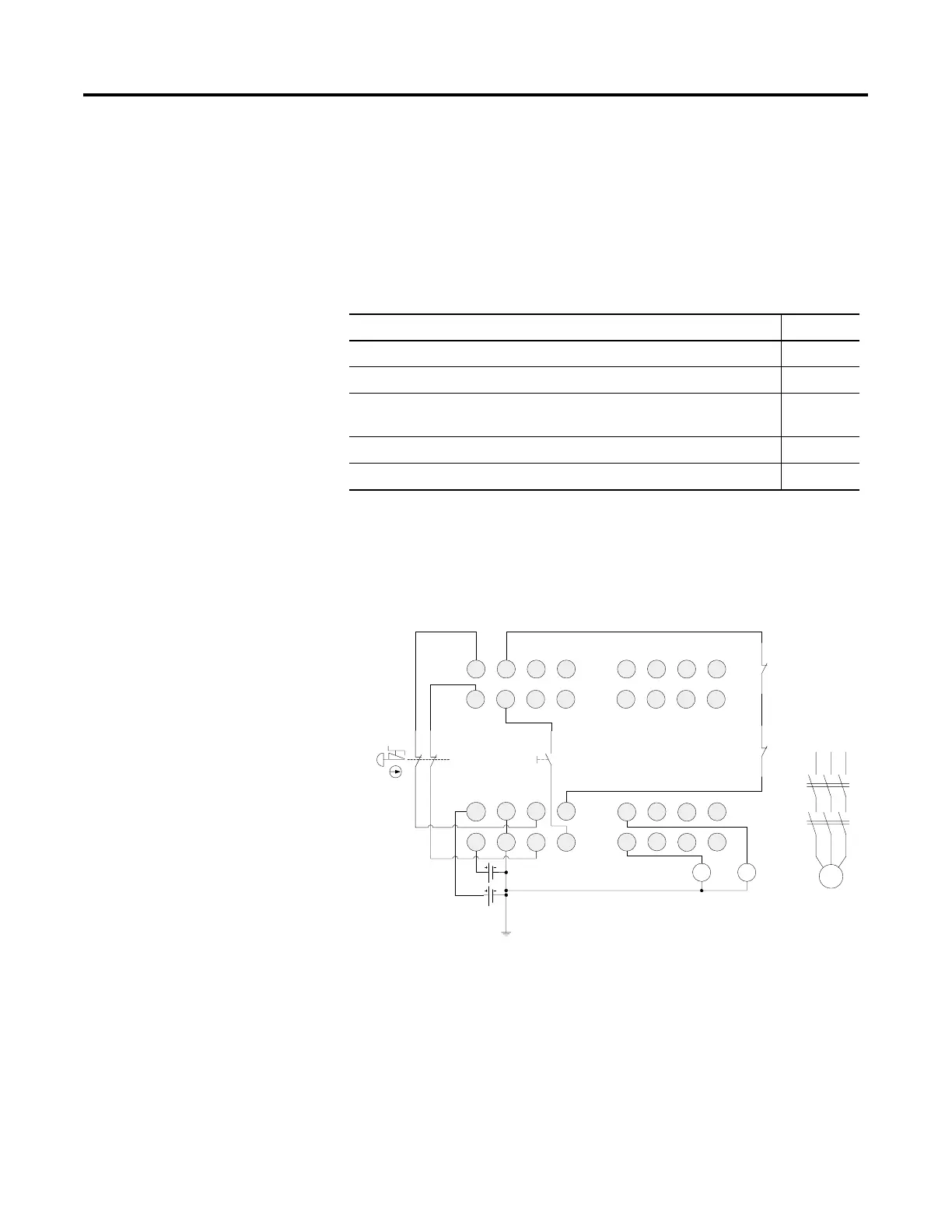

Wiring Diagram

Topic Page

Emergency Stop Application 219

Safety Gate Application with Automatic Reset 221

Dual Zone Safety Gate Application Using Emergency Stop Switch with

Manual Reset

222

Safety Mat Application 224

Light Curtain Application 227

G1 T0

11 21

12 22

V2 G2

O3 O5

O2 O4 O6

KM1KM2

I11

I13

I10

I12

I14

I15

KM1-NC

KM2-NC

KM1

KM2

E1 and E2: 24V dc Power Supplies

S1: Emergency Stop Switch

S2: Reset Switch (N.O. Contact)

KM1 and KM2: Contactors

Connect a 24V dc power supply to terminals V0 and G0, the power supply terminals for internal

circuits.
