Publication 1752-UM001A-EN-P - October 2006
76 Configure Your Controller for DeviceNet Communications
11. You can create a tag name for each bit in an I/O assembly.

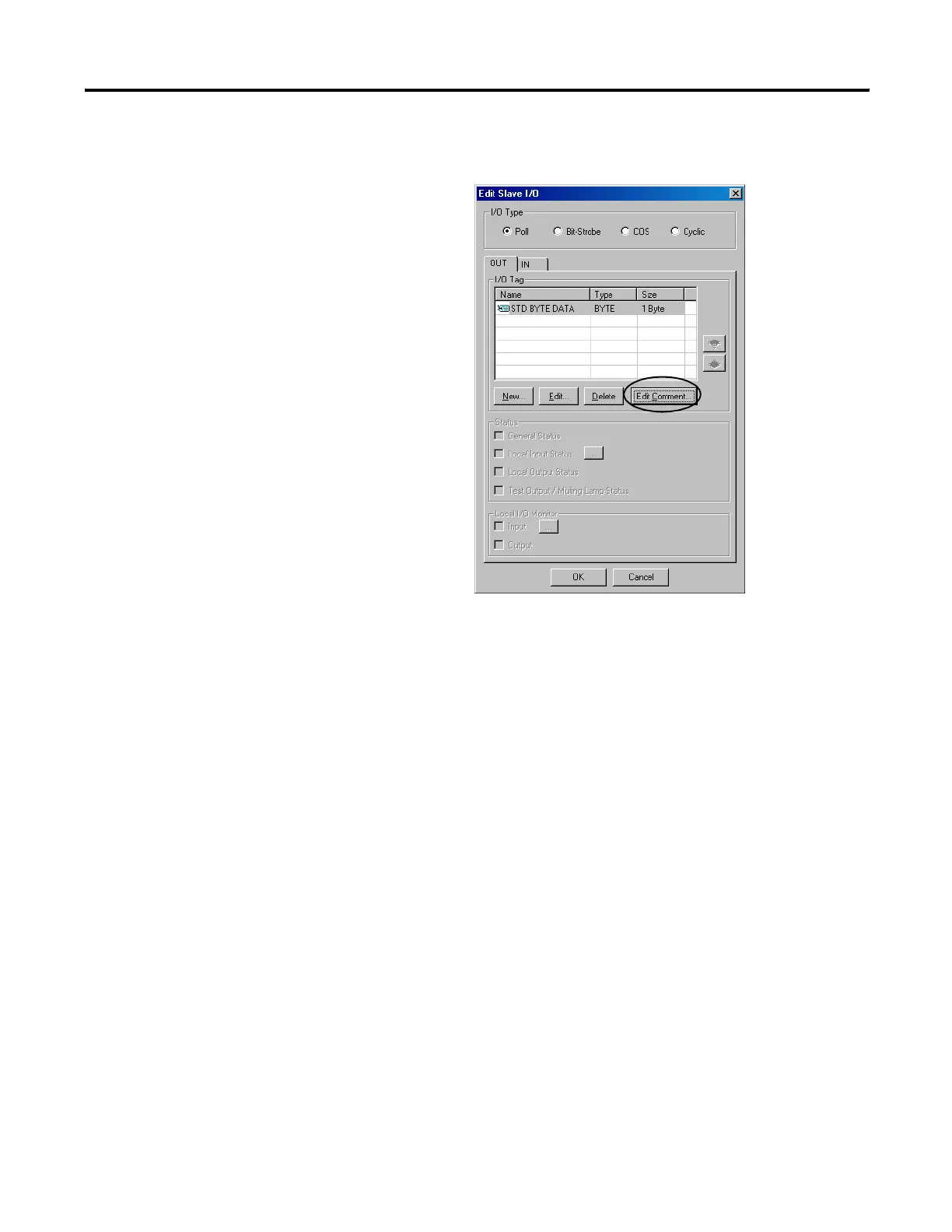

a. Select the applicable assembly and click Edit Comment.
b. Type a comment for each bit in the tag.
The tag name comments typed here are displayed in the
Logic Editor.
c. Click OK.
12. Click OK again to return to the Slave I/O tab.
13. Create additional slave input or output assemblies as required
for your application by repeating Steps 4…12.
14. Save your configuration in RSNetWorx for DeviceNet software
by choosing File>Save.
