176 Rockwell Automation Publication 1560F-UM001A-EN-P - June 2019

Chapter 9 Troubleshooting

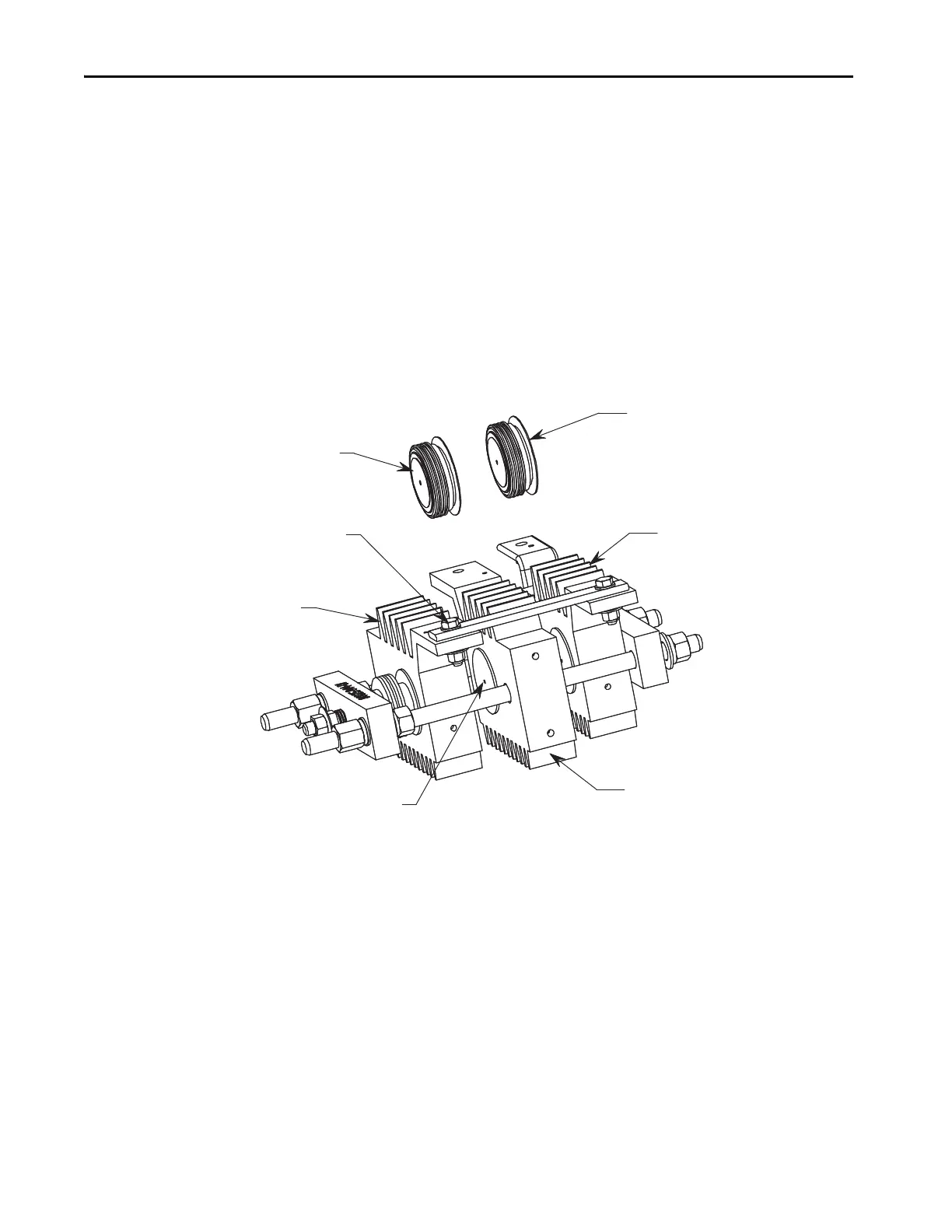

Figure 55 - Removal of SCR (1000…240V, 180/360A)

To Remove SCR:

• Remove shorting bar hardware

• Pry opposing heatsinks apart

•Extract SCR

To Insert New SCR:

• Apply thin film of electrical joint compound to

surfaces of SCR

• Install SCR so that it is seated in locating pin of

heatsink (note orientation of SCR).

• Pry heatsinks to close gap, ensuring that SCR is

seated properly in both its locating pins.

• Rotate SCR so that all leads have same direction.

SCR 2

SCR 1

Shoring Bar Hardware

Heatsink 1

Heatsink 3

Heatsink 2

Locating Pin
