Allied Telesis AT-TQ5403 - Wired LAN2 Status; Figure 7: Monitoring > Status > LAN2 Window; Table 2. Monitoring > Status > LAN1 Window

Monitoring
24
The fields are defined in Table 2 for the Monitoring > Status > LAN1
window.
Wired LAN2
Status
The Monitoring > Status > LAN2 window gives the status of the wired
LAN2. Refer to Figure 7.

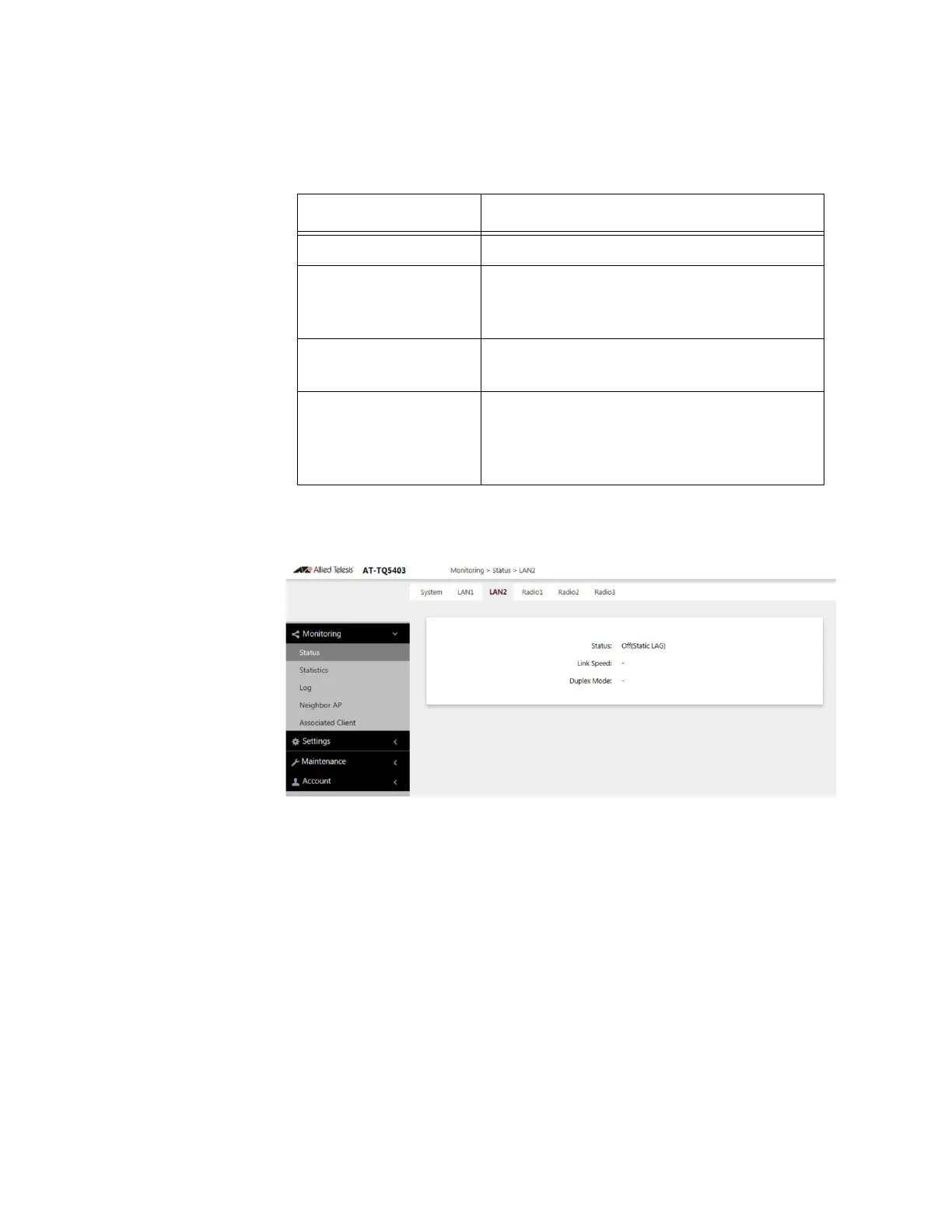

Figure 7. Monitoring > Status > LAN2 Window
The fields are defined in Table 3 for the Monitoring > Status > LAN2
window.
Table 2. Monitoring > Status > LAN1 Window
Item Name Description
Status Displays the current status (up, down)
Link Speed The current communication speed
(10 Mbps, 100 Mbps, 1000 Mbps) is
displayed.
Duplex Mode Displays the current duplex mode
(full duplex, half duplex).
PoE Mode The current PoE mode (IEEE 802.3af,
IEEE 802.3at, none) is displayed.
"None" is displayed when using the AC
adapter.
