IV-23
STACK CUTTING
When stack cutting workpieces, be sure to use the optional multi-vises.

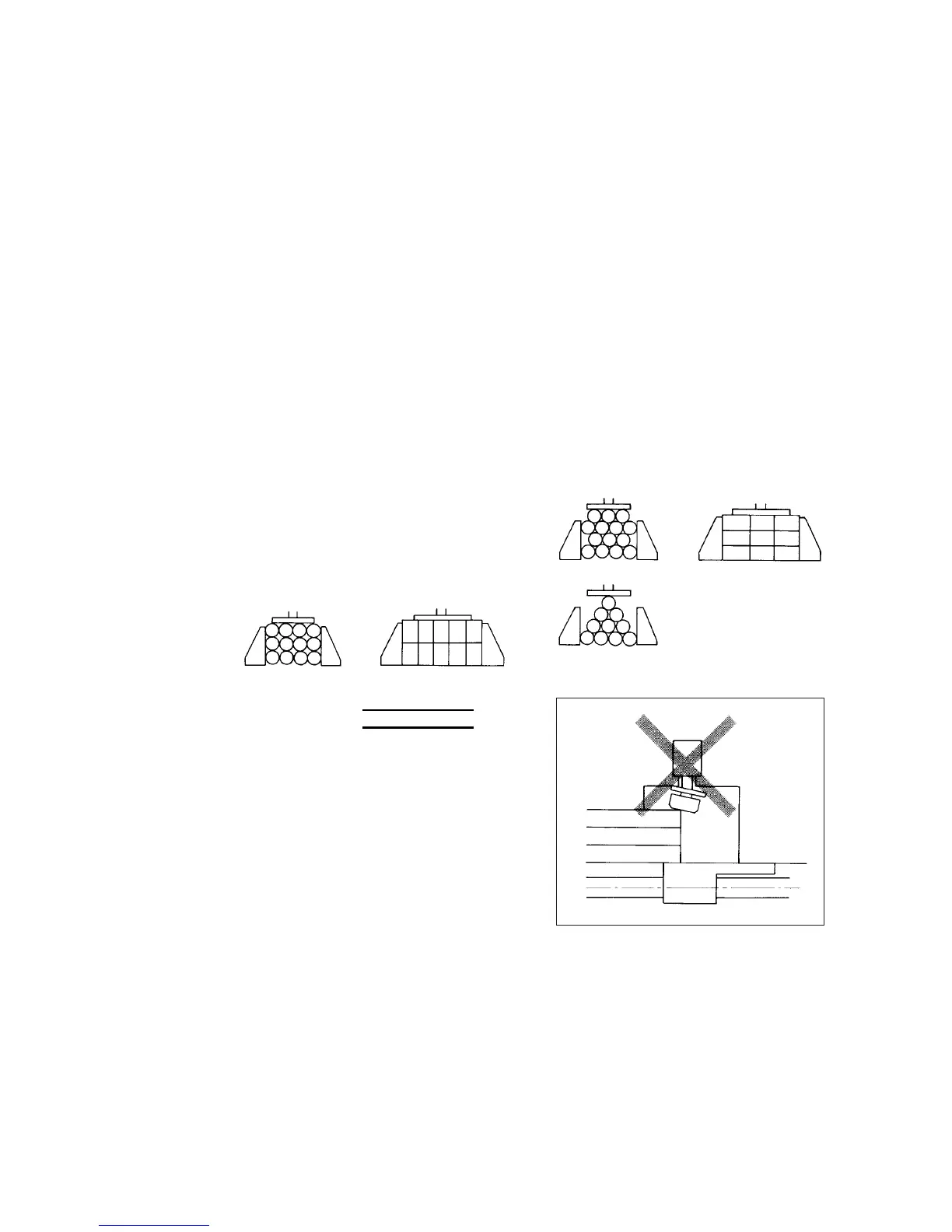

Stacking workpieces
Stack workpieces of the same size as shown in the good examples
below. The nest dimensions should be as given below.
Nest dimensions
Width: 150 mm {5.9 in.} for HFA-250 and HFA-250W
180 to 300 mm {7.1 to 11.8 in.} for HFA-400 and HFA-400W
Height: 50 to 150 mm {2.0 to 5.9 in.} for HFA-250 and HFA-250W
50 to 200 mm {2.0 to 7.9 in.} for HFA-400 and HFA-400W
Good Bad
NOTICE
O When using each multi-vise,
take care so that it does not
clamp short workpieces at
the tail end. Otherwise, its
cylinder may break.
