Amada HFA-400 - Connecting Power Cable

II-11
Connecting power cable
Connect the power cable to the machine as described below.
1 Turn off the shop
circuit breaker switch.
2 Open the door of the
electrical enclosure.

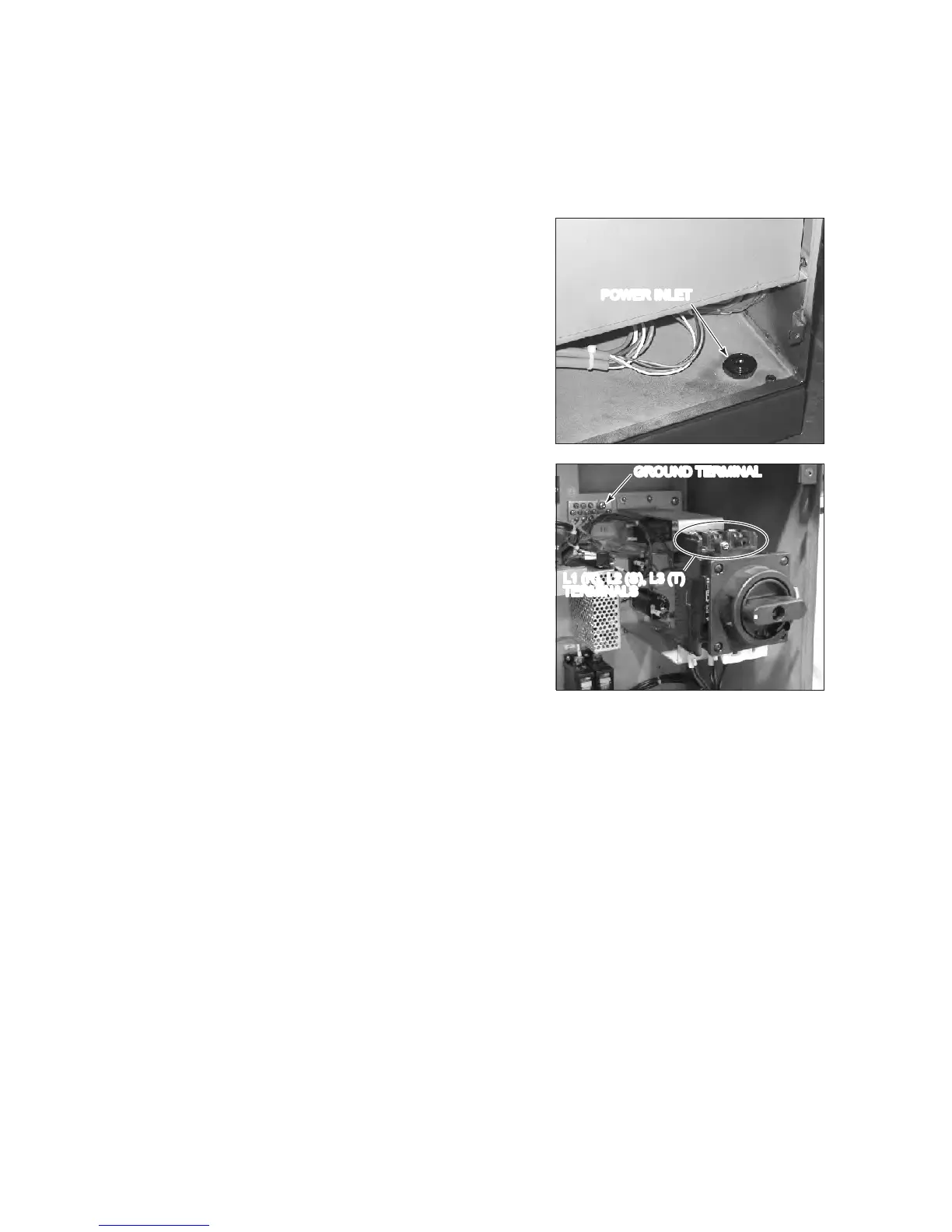

3 Pull the power cable
from the shop circuit
breaker through the
power inlet into the
electrical enclosure.
POWER INLET
4 Connect the three
power cable
conductors to the L1
(R), L2 (S) and L3 (T)
terminals of the
machine circuit
breaker.
5 Connect the
grounding conductor
to the ground terminal
on the left side of the
machine circuit
breaker mounting
bracket (deep in the
electrical enclosure).
L1 (R), L2 (S), L3 (T)
TERMINALS
GROUND TERMINAL
6 Check that the circuit protectors QF2, QF3 and QF4 are turned on.
7 Close the door of the electrical enclosure.
