IV-50
INSERTING INTERRUPT STATION AS FIRST STATION OF
AUTOMATIC OPERATION DURING HEAD-END TRIMMING
Example:
During
trimming
field:
field:
field:
field:
field:
field:
field:
field:
field:

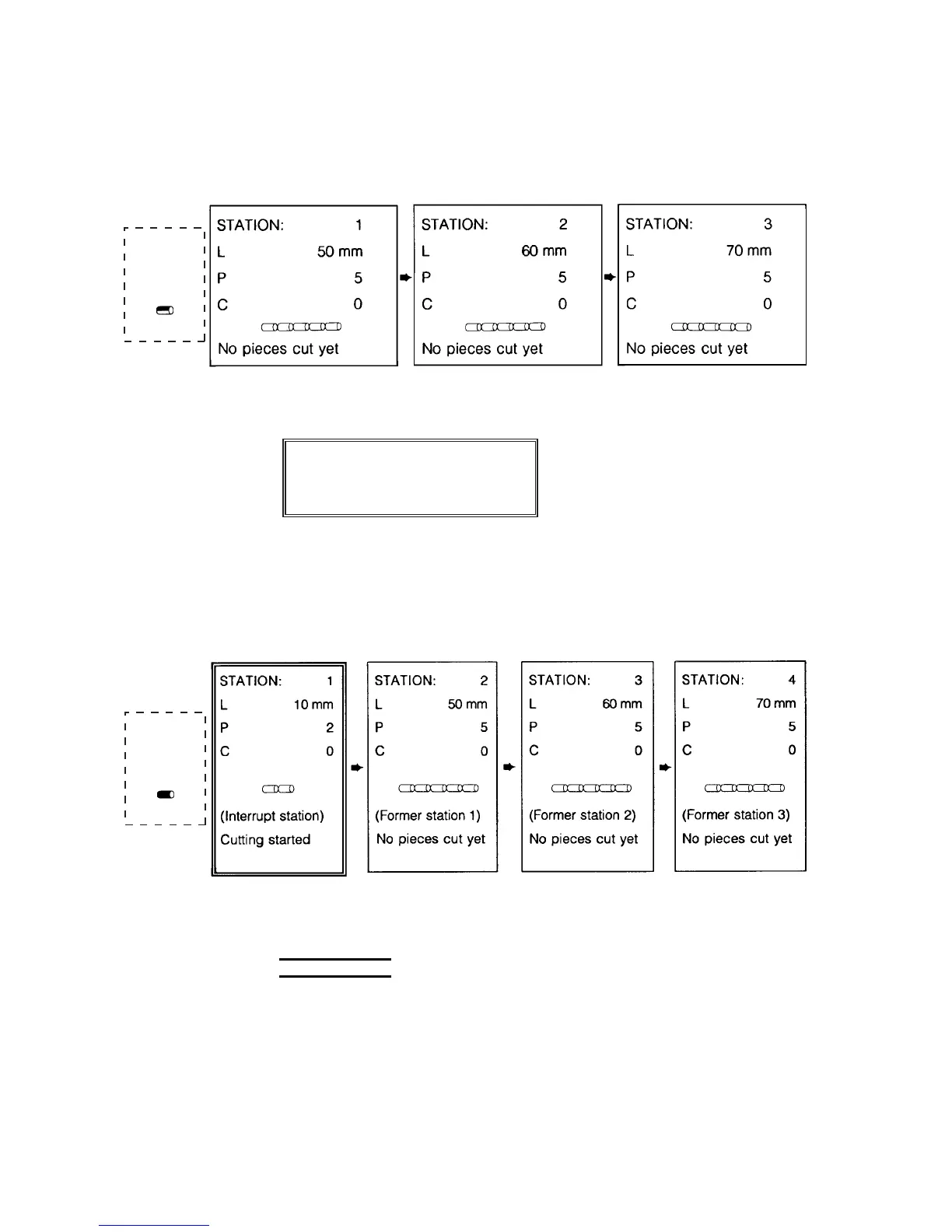

Insert the following cutting data as interrupt station before the station 1
under the above conditions:
Cutoff length (L field): 10 mm
Quantity to be cut (P field): 2 pieces
When the interrupt station is set as described on the next page, the
numbers of the stations become as shown below. After trimming the
head end of the work, the interrupt station begins to be executed.
The interrupt station is stored as the new station 1, and the former
station 1 and subsequent stations are incremented by one each in
number.
Trimming
ended
field:
field:
field:
field:
field:
field:
field:
field:
field:
field:
field:
field:
After executing the interrupt station, the machine continues to execute
the new station 2 (former station 1).
NOTE
O When you insert an interrupt station while the head end of the work is being
trimmed, do not change the station number displayed in the ST. field until the
head-end trim is completed. If you do so, you may change the sequence of
the stations during automatic operation.
To Next Page
