IV-8
INSTALLING SAW BLADE
WARNING
O Never operate the machine with the wheel
cover, the saw blade cover, and other
covers removed or opened. It is
dangerous if your hands or clothing are
caught in the running machine.
O Always wear leather gloves when handling
the saw blade.
O Be careful not to let the wheel cover fall
during the saw blade change.
CAUTION
O When applying tension to the saw blade in
step 14 below, take care not to have your
hands pinched between the saw blade and
driven wheel.
Install the saw blade as described below.
1 Turn on the shop circuit breaker switch.
2 Turn the machine circuit breaker switch to ON.
The power of the machine is turned on, and the POWER light
illuminates.
3 Press the HYDRAULIC ON button.
The button illuminates, and the hydraulic pump motor starts.
NOTE
O When the HYDRAULIC ON button is pressed without the saw blade
installed, the saw blade breakage alarm code “E-001” may be displayed.
For how to clear the alarm, see “Alarm code list” in Part V,
Troubleshooting.
4 Turn the AUTO/MANUAL switch to MANUAL.
5 Press and hold the BLADE UP button to raise the sawhead until
the right-hand saw blade insert rises above the vise top surface.

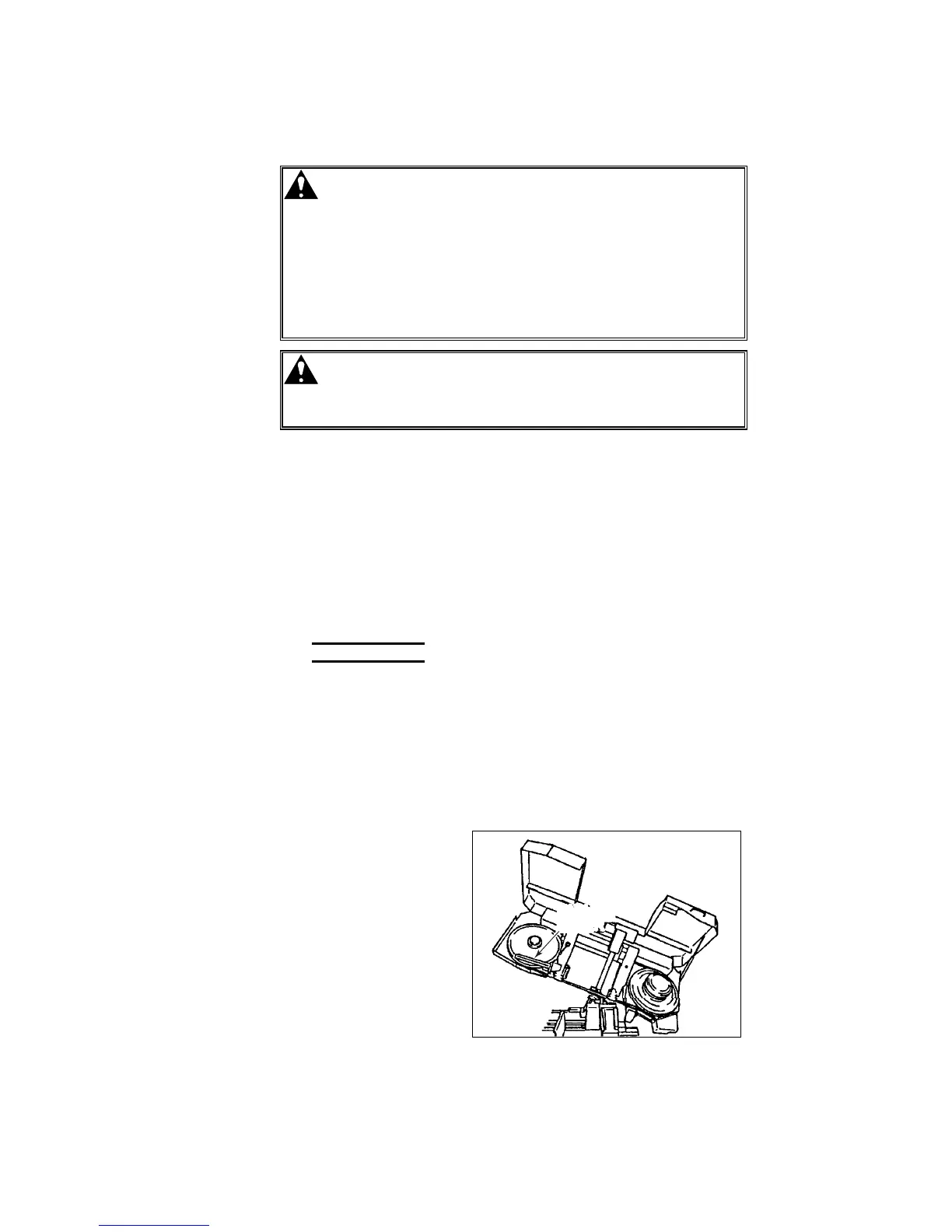

6 Open the wheel
cover.
7 Open the saw blade
cover.
SAW BLADE
COVER
To Next Page
