III-13

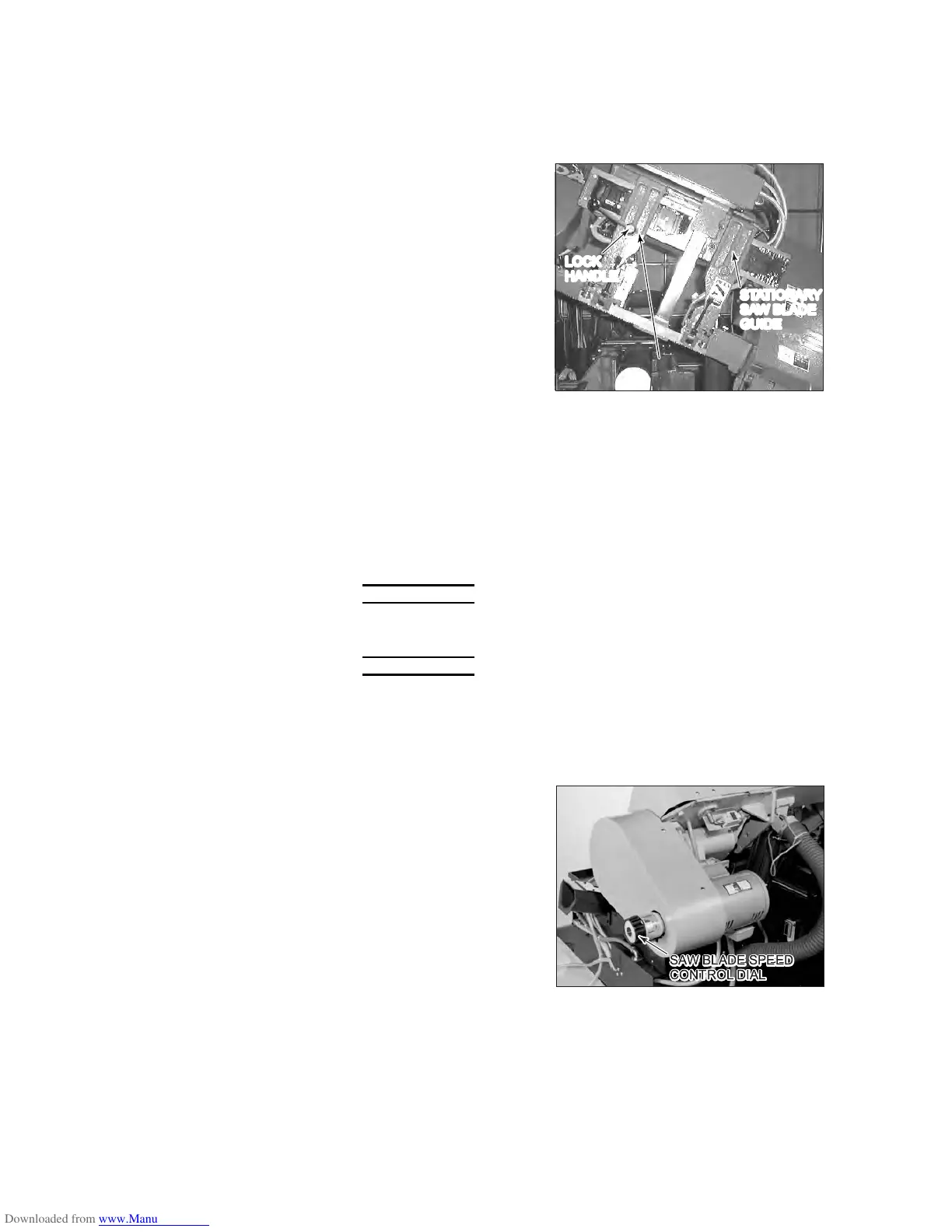

Saw blade guides
There are two saw blade
guides, one each at the left
(driven) and right (drive)
wheel sides and installed
on the sawhead frame.
The left-hand (driven-side)
saw blade guide can be
moved left and right by
loosening the lock handle.
Adjust the saw blade guide
distance to suit the width of
the work to be cut, so that
the saw blade can be
guided as close as
possible to the work.
LOCK
HANDLE
MOVABLE
SAW BLADE GUIDE
MOVABLE
SAW BLADE GUIDE
STATIONARY
SAW BLADE
GUIDE
Saw blade speed control device
The saw blade running speed can be adjusted steplessly by turning the
saw blade speed control dial (for the HFA-250 and HFA-250W) or saw
blade speed control handwheel (for the HFA-400 and HFA-400W) at the
right side of the machine.
NOTICE
O Never turn the saw blade speed control dial or handwheel when the saw
blade motor is stopped.
NOTE
O The saw blade speed control device is equipped with a mechanical stepless
shift, so that the pointer can be set at the center of the scale without any
problem.
HFA-250 and HFA-250W
Turn the saw blade speed
control dial clockwise to
decrease the saw blade
running speed and
counterclockwise to
increase the saw blade
running speed.
The setup range is 20 to 80
m/min {66 to 262 fpm} for
the HFA-250 and 24 to 90
m/min {79 to 295 fpm} for
the HFA-250W.
SAW BLADE SPEED
CONTROL DIAL
To Next Page
