The event log listThe event log list

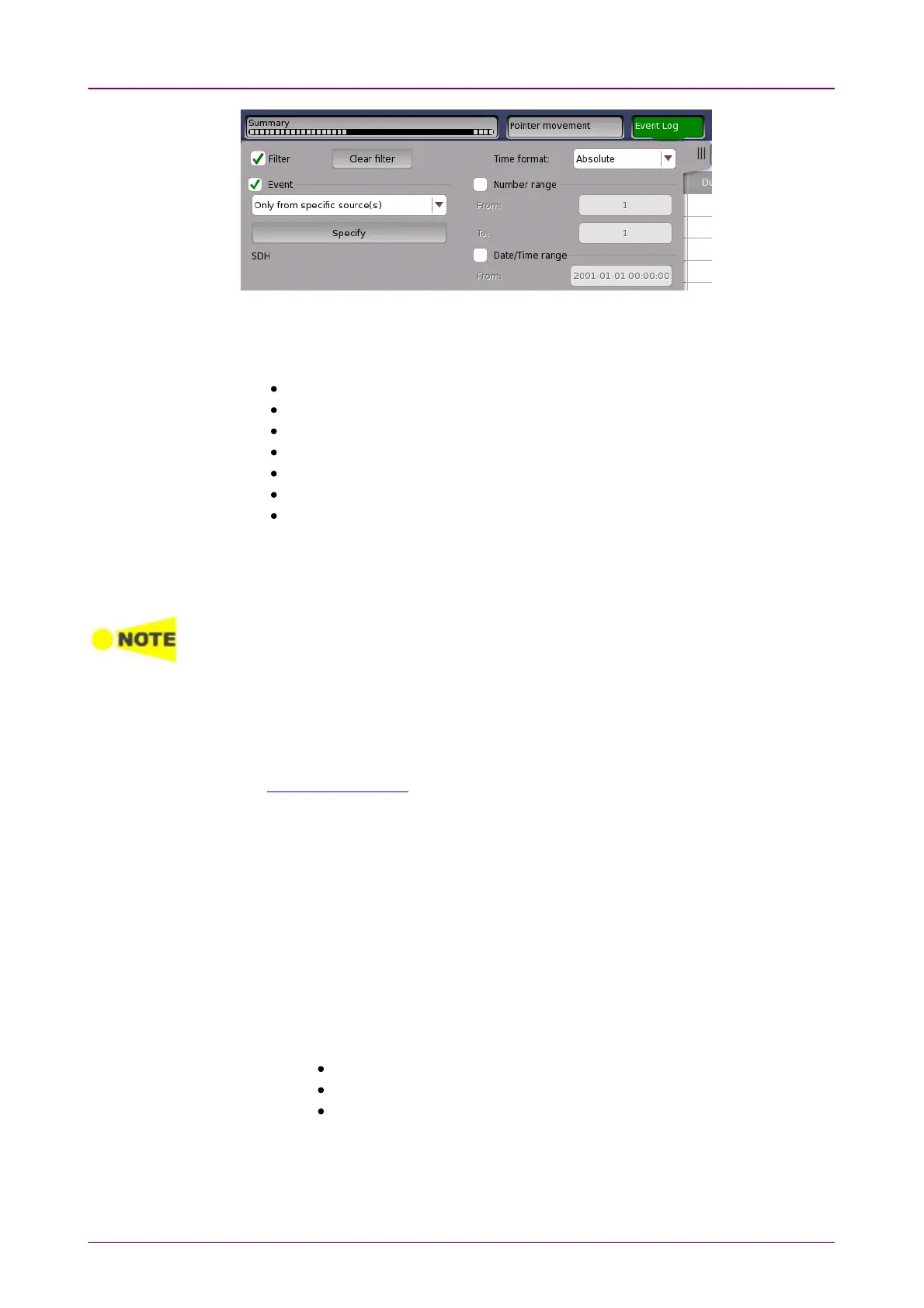

For an event to be displayed, it must pass the EventEvent filter, the Number rangeNumber range
filter and the Date/Time rangeDate/Time range filter if they are all enabled.
The EventEvent filter has seven filter modes:
Show events from specific sources only.
Do not show events from specific sources.
Show specific events from specific sources only.
Do not show specific events from specific sources.
Show specific types only.
Do not show specific types.
Show events where the source- or the description field matches a user
specified text string only.
Choose the desired event filter mode and touch the SpecifySpecify button in order to
select the specific sources and events.
The test start event (Started) and stop event (Stopped) are always shown in the event
log.
The ViewView setting applies a port filter. A single port or all ports can be selected.
Events with no port association will always pass.
The CSV exportCSV export button is for writing all events (un-filtered) to a file in a CSV
format (Comma Separated Values). The separator used can be configured in
the Instrument ToolbarInstrument Toolbar > Configuration > General> Configuration > General menu screen, under
MiscellaneousMiscellaneous. It is not possible to export the file during a test.
The events are displayed in a scrollable table. The content of the seven
columns are:
No.No.
The index in the log.
TimeTime
The time when the event was detected.
PortPort
Port number for events related to a port. Otherwise this field is blank.
TypeType
Event type icon.
Alarm events are indicated by a red icon.
Error events are indicated by a yellow icon.
Threshold events are indicated by either a red or yellow icon with a T in
the middle.
Src.Src.
The source of the event. This row denotes the originating interface/technology
or application.
