Displays the flag field of the announce message in hexadecimal. You can edit
this value on the Advanced tab.
Timing tabTiming tab

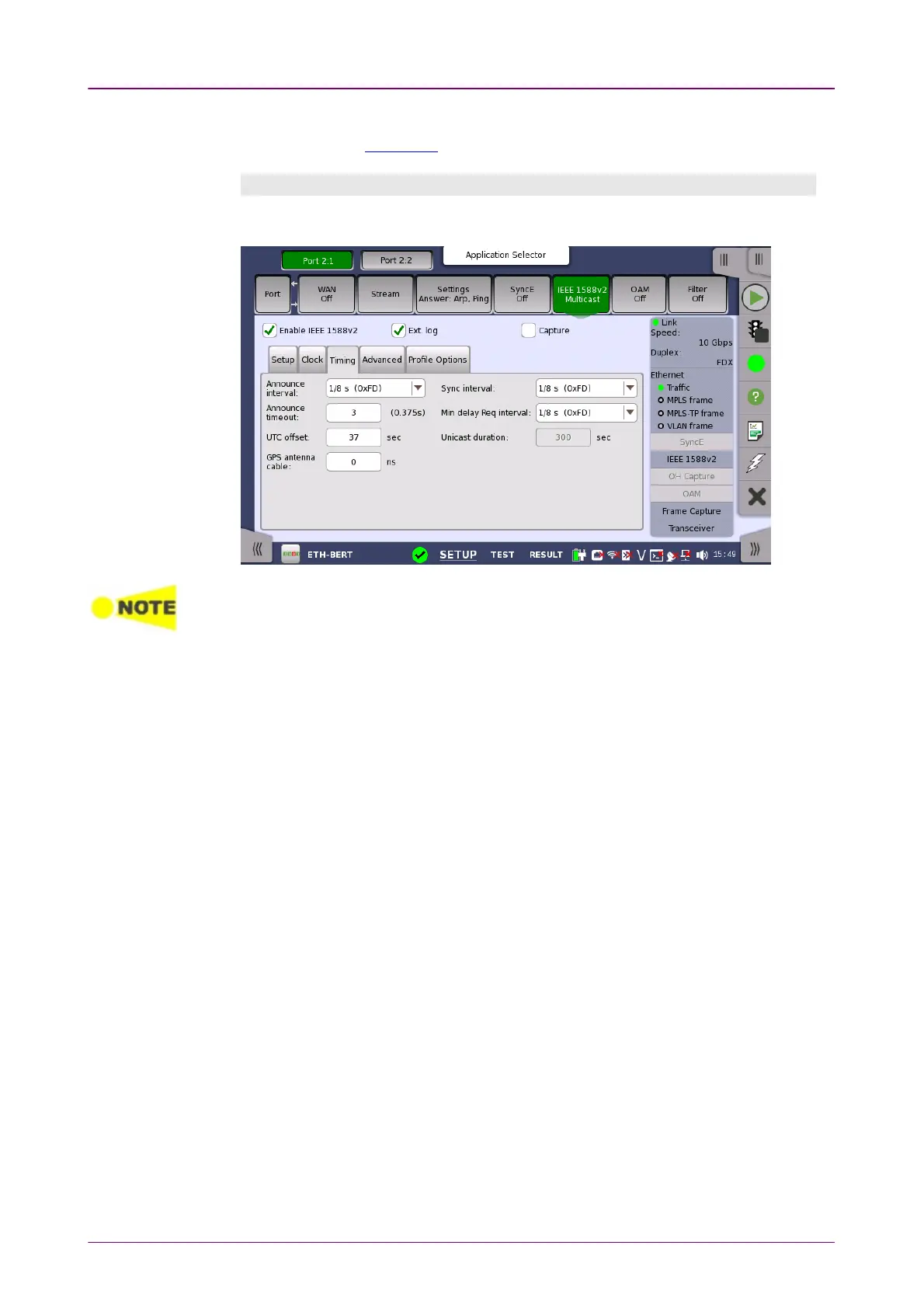

The TimingTiming tab contains the timing-specific parameters.
In multicast mode, it is important that all IEEE 1588v2 clocks in the same domain uses
the same announce interval and announce timeout values. Otherwise the best master
algorithm may fail. Sync intervalSync interval and Min. delay Req. intervalMin. delay Req. interval should also match the
domain.
Announce intervalAnnounce interval
Allows you to specify the sending interval of announce messages. Available
values are between 1/8 s1/8 s and 32 s32 s.
The data to send actually is displayed in hexadecimal.
Announce timeoutAnnounce timeout
Allows you to specify the number of missed announce intervals before
announce timeout. Acceptable values are between 2 and 255.
The calculated time is displayed right hand of the field.
UTC offsetUTC offset
Set the time difference between the internal clock or Coordinated Universal
Time (UTC) and Internal Atomic Time (TAI). For the time of January 2017, set
37 seconds as the difference between UTC and TAI. This value is used when
converting the internal time or a GPS based UTC time to TAI based time, which
is used in an IEEE 1588 clock. The correct UTC/TAI offset value changes when
leap seconds are applied to the UTC time.
GPS antenna cableGPS antenna cable
Allows you to specify the delay time of GPS antenna cable connected to the
Network Master in nano second unit.
When calculating the delay time from the cable length, it is recommendable to
use 5 ns/m as the conversion factor.
When using the following GPS antenna provided by Anritsu, set 25 ns.
