Total FrameTotal Frame
DifferenceDifference
EthernetEthernet

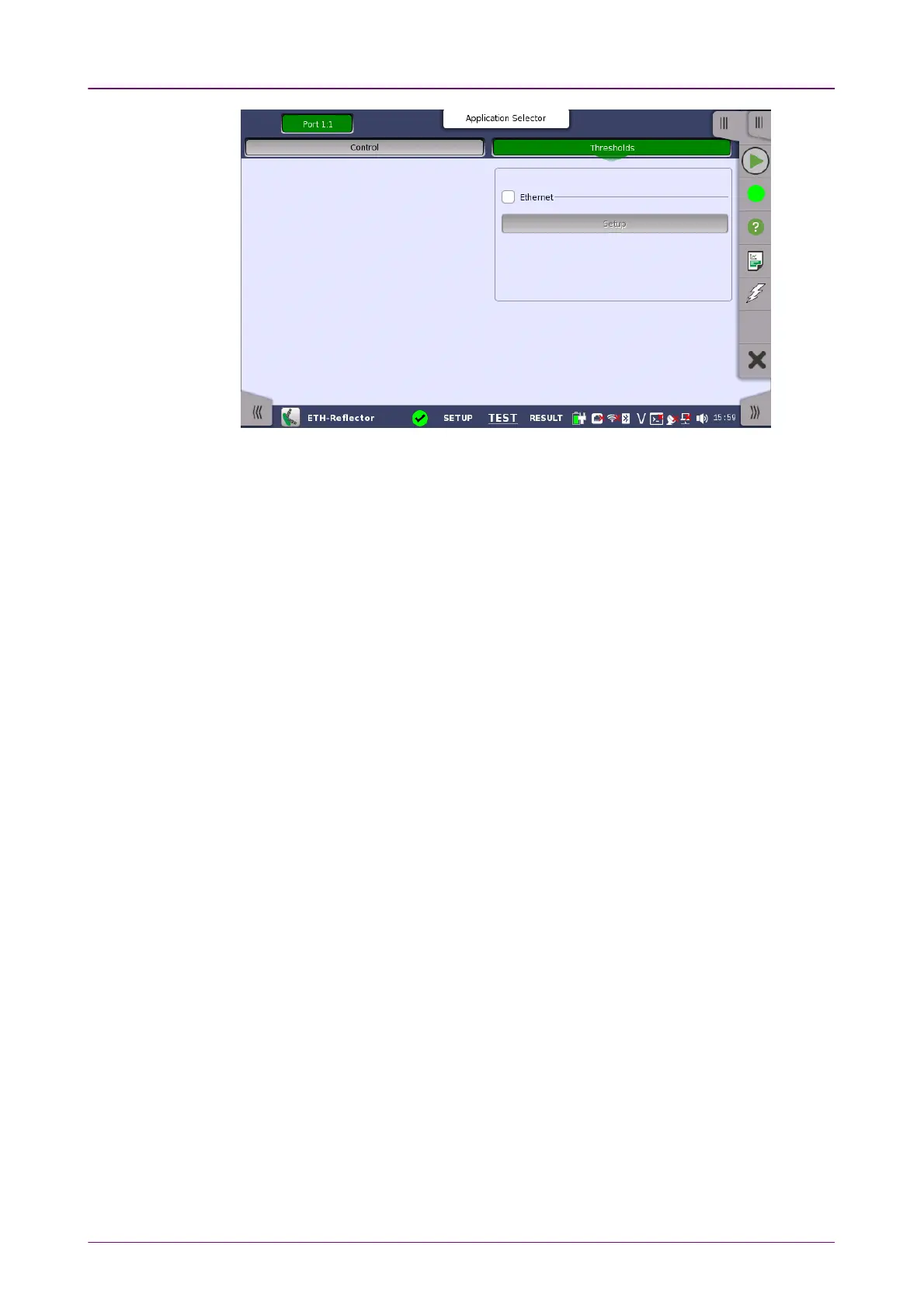

This screen allows you to set up a number of special monitoring items related
to the various interface types. When specified and enabled, these threshold
values (i.e. limits) for errors and Pass/Fail status will be used during the
monitoring.
Allows you to select the reference port to measure the differential time, using
Difference from:Difference from: drop down menu.
When you select the check box, you can enable various thresholds. Touch the
SetupSetup button to display the same Ethernet threshold setupEthernet threshold setup dialog box as BERT.
