66..88..33 Test ResultsTest Results
66..88..33..11 SummarySummary

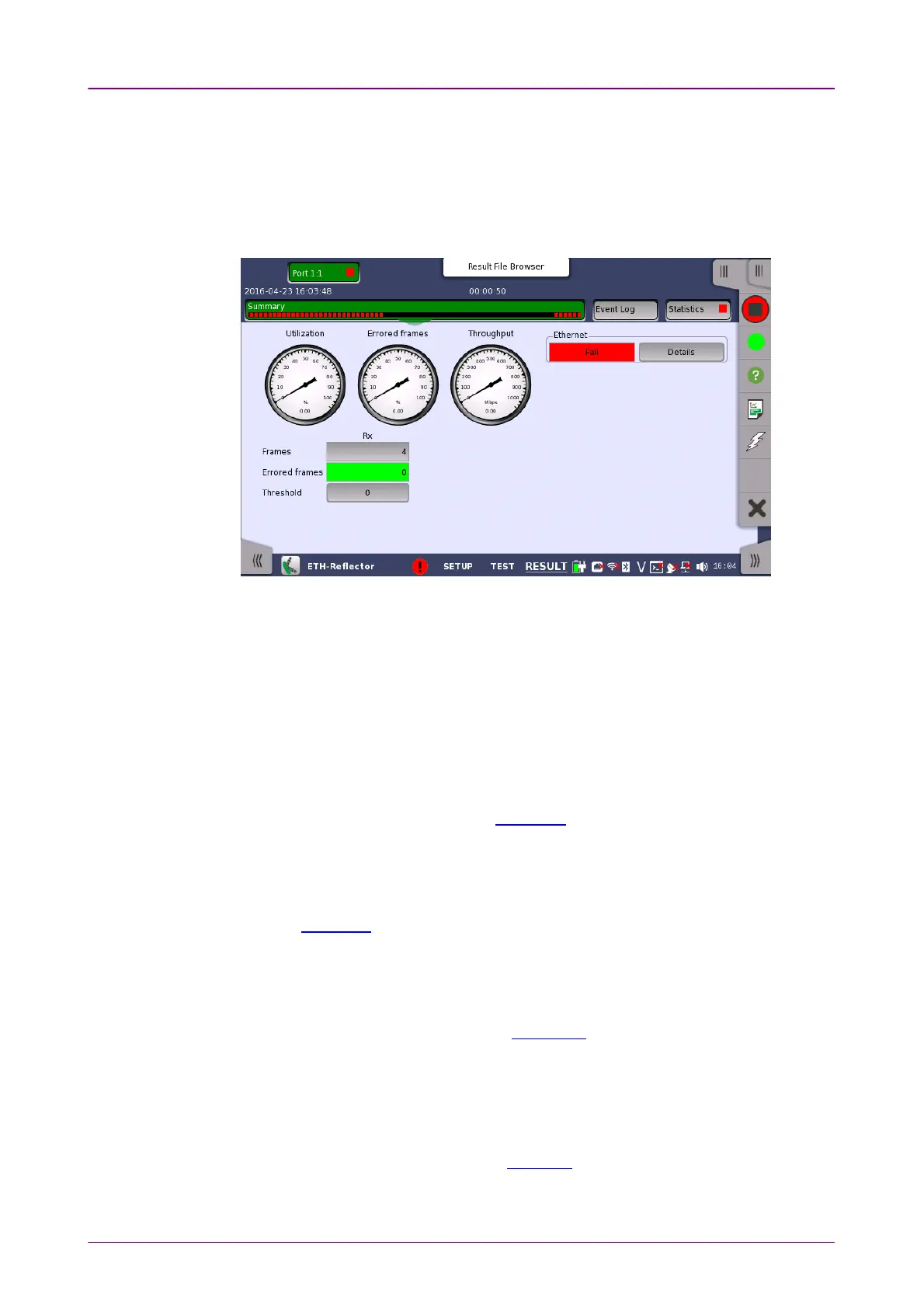

When you go to the test results of the Ethernet Reflector application, the
following screen is displayed.
This screen contains a summary of the results of the Ethernet Reflector test.
The information includes such things as number of errored frames and number
of exceeded thresholds.
The three dials showing utilization/throughput results, pattern errors and
errored frames can be enlarged by touching on them. The black needle points
the measured value in the latest period.
When EthernetEthernet check box is selected on ThresholdThreshold of the Test Setup screen, the
EthernetEthernet information appears in the upper right-hand corner, shows pass/fail
status summary. Touching the DetailsDetails button allows you to inspect the
individual pass/fail status. Refer to Summary in BERT section.
66..88..33..22 OAM LogOAM Log
The operation of OAM LogOAM Log screen is the same as that of BERT application.
Refer to OAM Log in BERT for the operation.
66..88..33..33 Event LogEvent Log
Touching the Event LogEvent Log button in the navigation area displays the screen
providing the event log data. Refer to Event Log of SDH/SONET/PDH/DSn
BERT application.
66..88..33..44 StatisticsStatistics
Touching the StatisticsStatistics button in the navigation area displays the screen
providing the statistics data. Refer to Statistics of BERT for the operation.
