Physical StatusPhysical Status
Alarm/Error StatusAlarm/Error Status
Monitor StatusMonitor Status
Rx filterRx filter
Select the check box to measure only messages whose Rx PR3 address and
RP3 type match the filter settings. A No message alarm is detected when there
are no matched messages during a measuring period.
88..11..33 Status InformationStatus Information
This section describes the status information available in the status area of the
CPRI/OBSAI ports setup screen.
88..11..33..11 Status SummaryStatus Summary
The status summary displayed for the CPRI/OBSAI interface consists of the
following information:
The topmost part of the status area gives you access to information about the
current physical status of the selected interface. A summary consisting of the
most relevant status indicators is displayed constantly. By touching the
summary, you can open the dialog box where you can view the detailed status
information.
The middle part of the status area gives you access to alarm and error
information for the selected interface. The current status is indicated by the
lamp color.
A summary consisting of the most relevant alarm/error indications is displayed
constantly. By touching the summary, you can open the dialog box where you
can view all alarms/errors.
At the bottom of the status area, a button that gives you access to the monitor
information By touching the button, you can launch the Transceiver
information display.

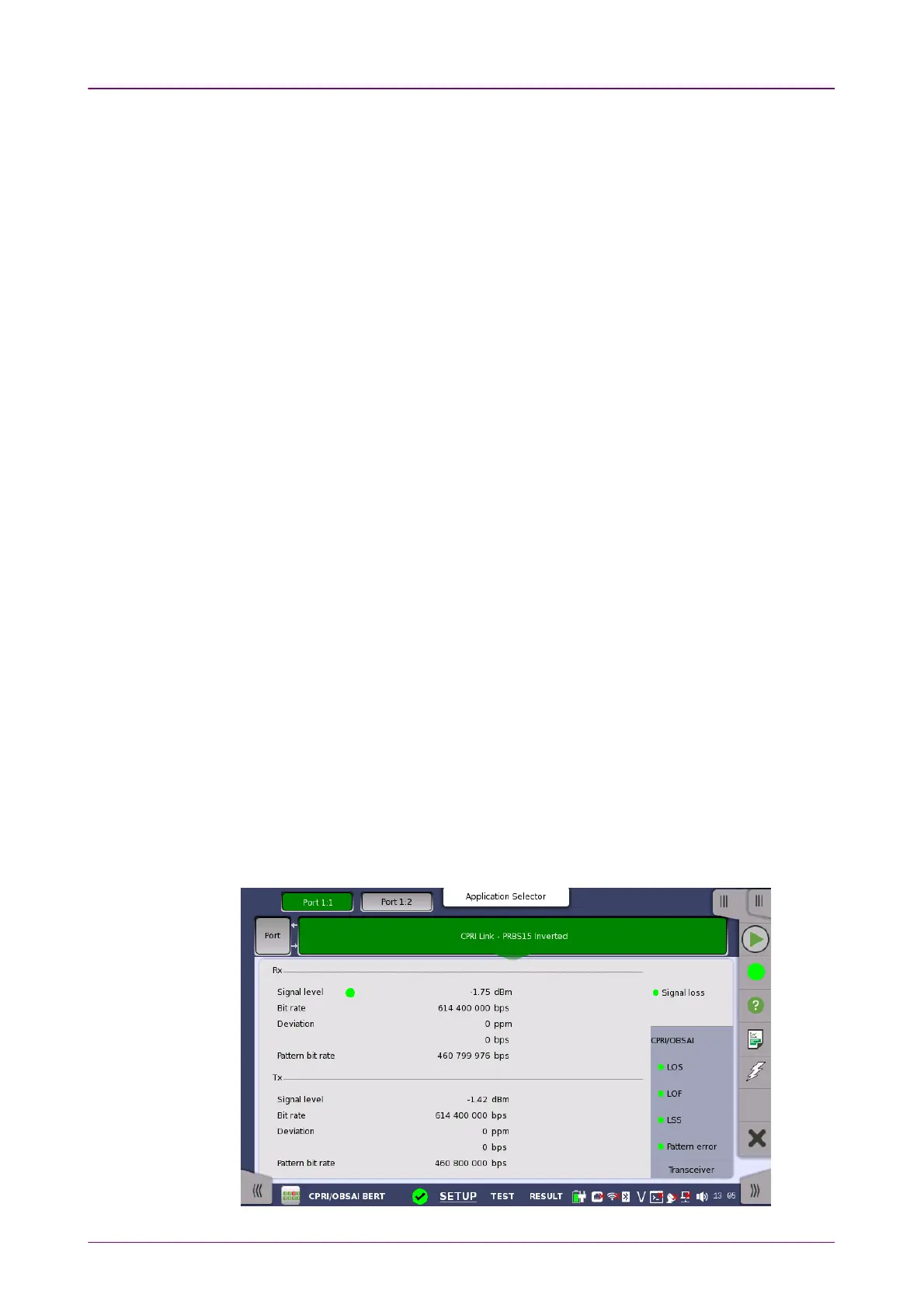

88..11..33..22 Physical DetailsPhysical Details
Touching the topmost summary box in the status area of the Ports SetupPorts Setup screen
launches the dialog shown below.
