eCPRIeCPRI

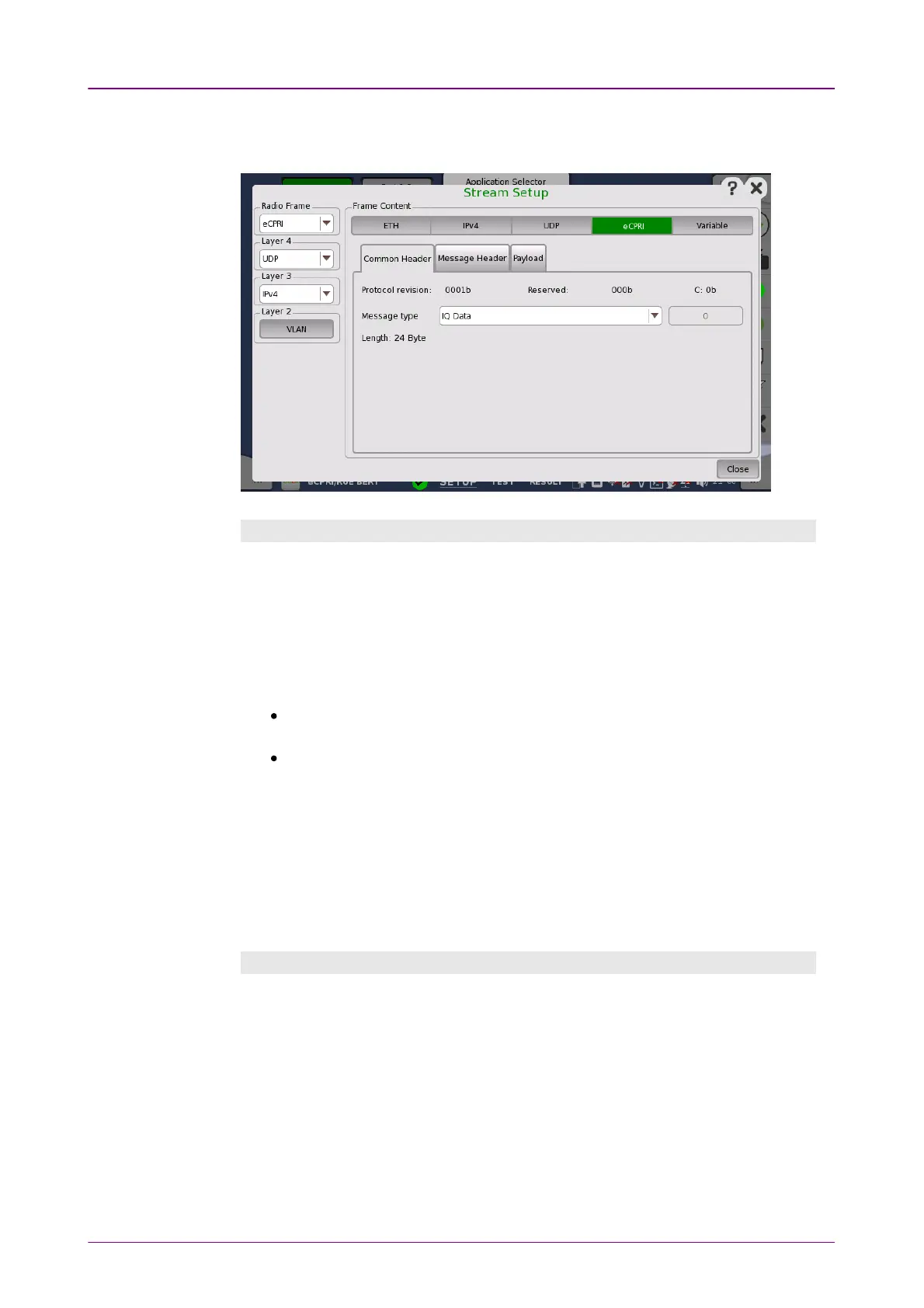

Selecting the eCPRIeCPRI in Radio Frame drop-down list displays the parameters
available for the eCPRI protocol layer.
Common HeaderCommon Header
Protocol versionProtocol version
The protocol version of eCPRI is displayed.
ReservedReserved
"000b" is displayed.
CC
0b: indicates that the eCPRI message is the last one inside the eCPRI PDU
(protocol data unit).
1b: indicates that another eCPRI message follows this one within the eCPRI
PDU.
Message typeMessage type
Select a message type. When User DefinedUser Defined is selected, touch the right-hand
field and enter the value.
LengthLength
A byte length of Message Header and Payload are displayed.
Message HeaderMessage Header
The items to be displayed vary according to the Message type.
IQ Data, Bit Sequence, Generic Data Transfer :
PC IDPC ID
An identifier of a series of IQ Data messages, Bit
Sequence messages, or Generic Data Transfer
messages.
SEC IDSEC ID
An identifier of each message in a series of
messages.
Mobile xHaul ApplicationsMobile xHaul Applications
