2.6.2 Positioning of FD1805

The inspection hole is on the top of the chamber.

Remove the bench top to get to the inspection hole.

003121

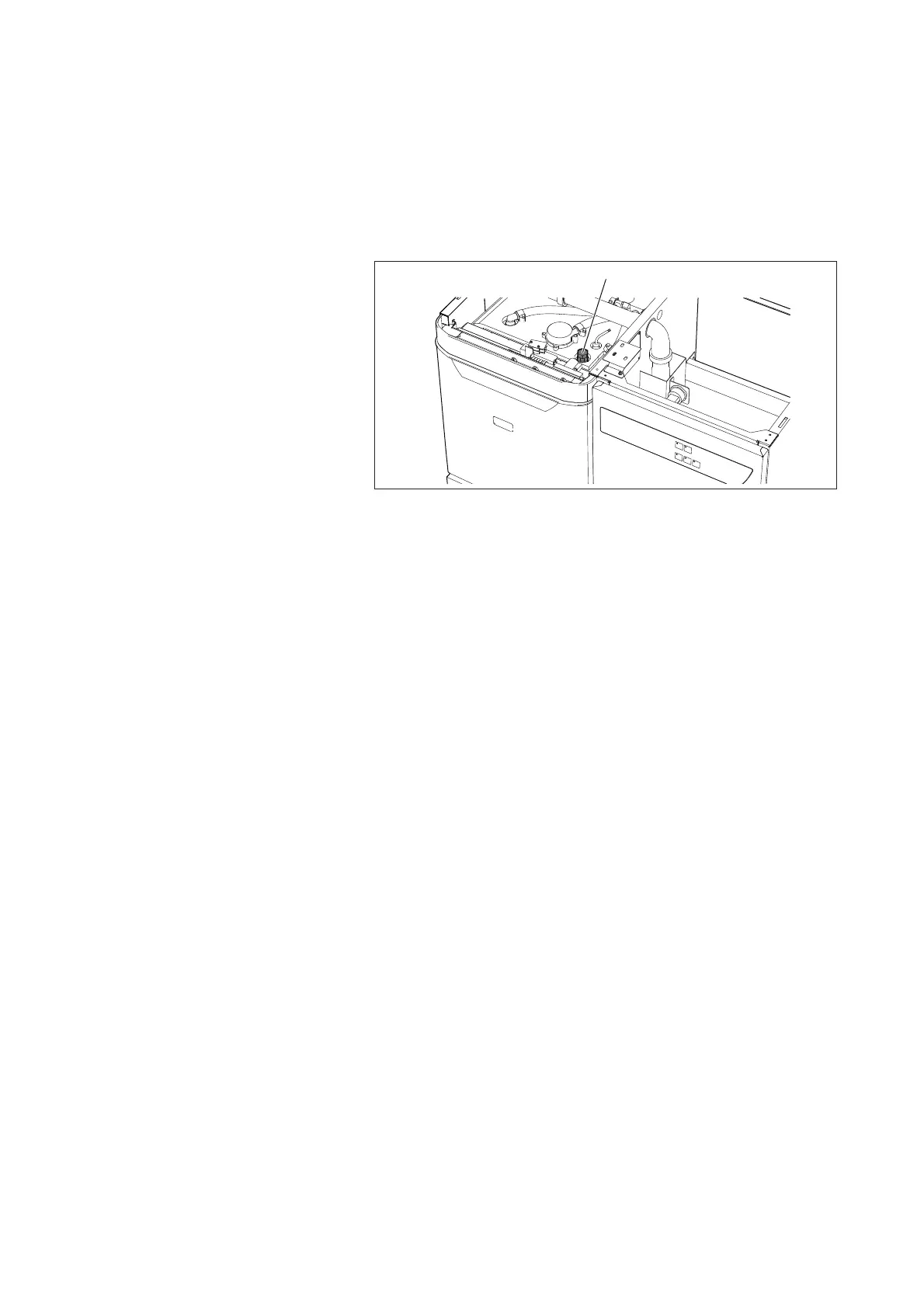

Figure 3. Inspection hole (1)
