7.5 Replacement of rotating nozzle
WARNING!
Only to be carried out by authorized staff.
1
2
002923

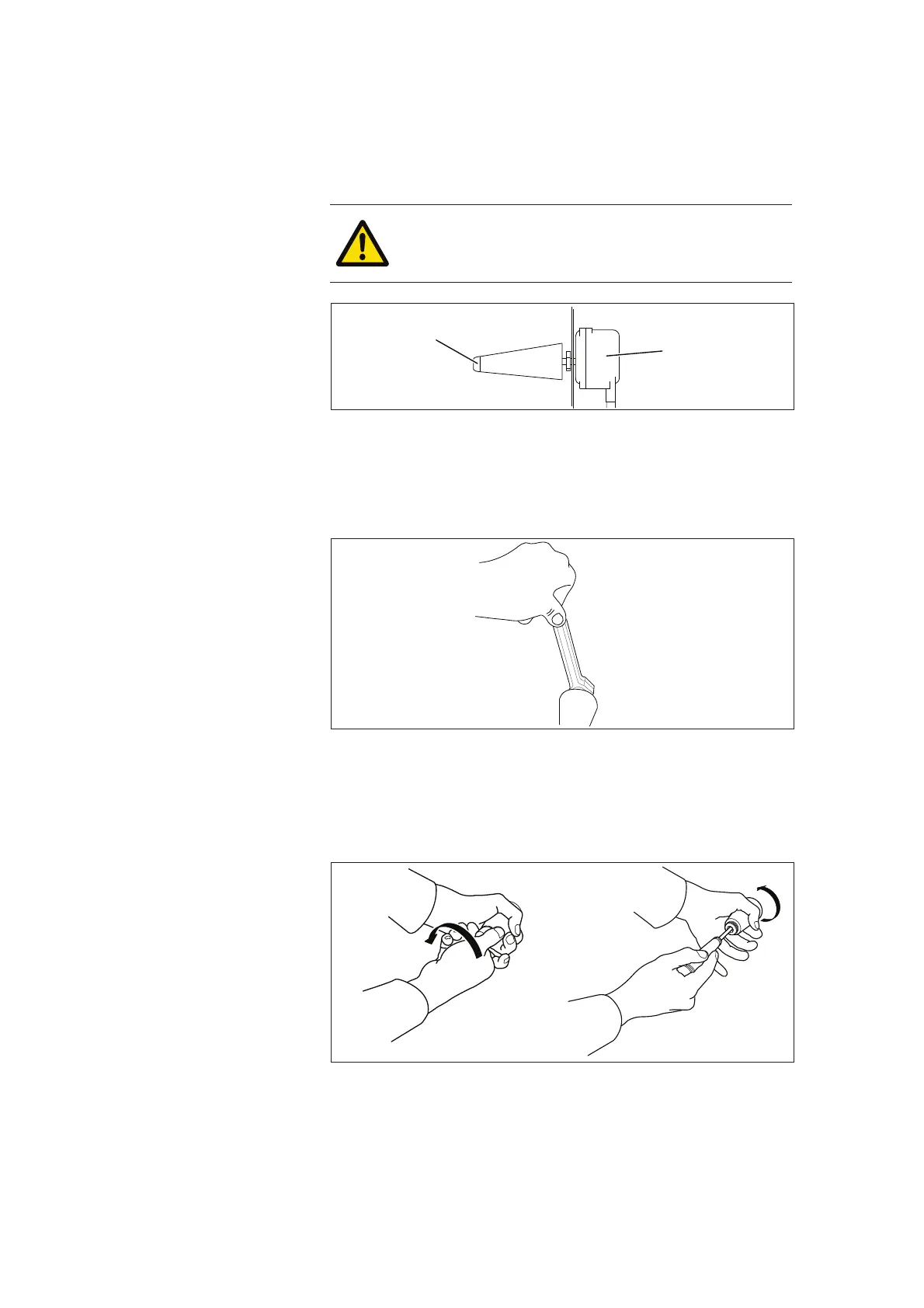

Figure 18. Components in the nozzle
1. Nozzle head 2. Rotating nozzle
• Option 1.8VHD¿[HGZUHQFKVL]HPPWRORFNWKHQXW
between the nozzle and the rotating nozzle. Then unscrew
the nozzle by hand.
001411
Figure 19. Dismantling, option 1
• Option 2 Hold the nozzle and unscrew the nozzle head.
Then insert a screwdriver into the nozzle and position the
EODGHLQWKHVORW+ROGLQJWKHVFUHZGULYHU¿UPO\XQVFUHZWKH
nozzle.
001412
Figure 20. Dismantling, option 2
• Take out the nozzle at the back of the chamber and
disconnect the nozzle from the hose. The main pump can be
removed to make this operation easier. Disconnect the hoses
DQGWKHWZR¿[LQJVFUHZVXQGHUWKHSXPSVKHOI0RYHWKH
pump forward and lift it out.
• $IWHUUHSODFHPHQWUHSDLUUH¿WLQWKHUHYHUVHRUGHU
