7 REPAIRS AND ADJUSTMENT

7.1 Remove top

7.1.1 Removing FD1800 and FD1810

Remove the top by twisting the two locking screws quarter of a

turn. Then pull the top forward and lift it off.

1 1

001420

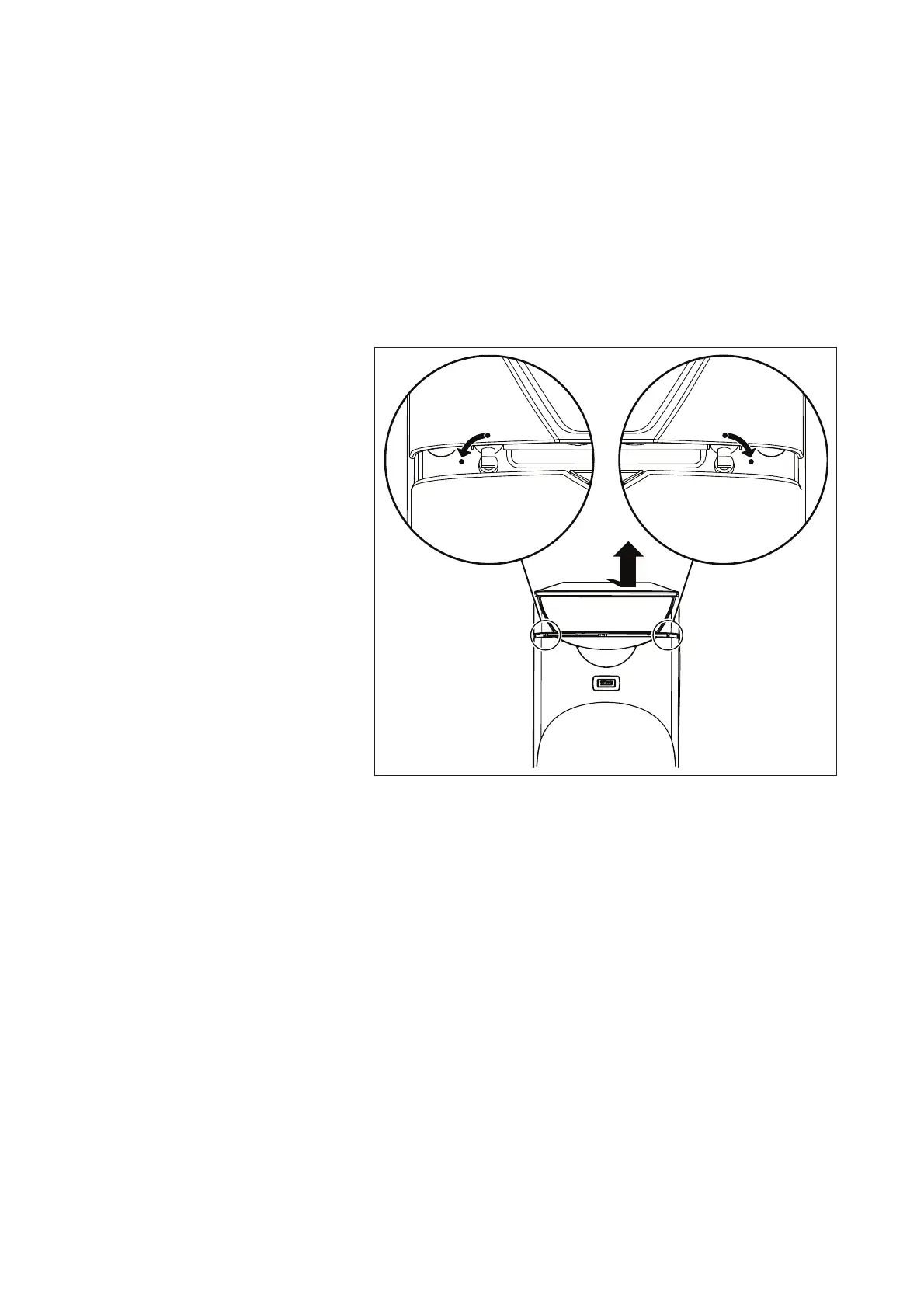

Figure 13. Removing the top
