6.3.2 Removing a rotating nozzle (2.1.1)
• Option 1.8VHD¿[HGZUHQFKVL]HPPWRORFNWKHQXW
between the nozzle and the rotating nozzle. Then unscrew
the nozzle by hand.
001411

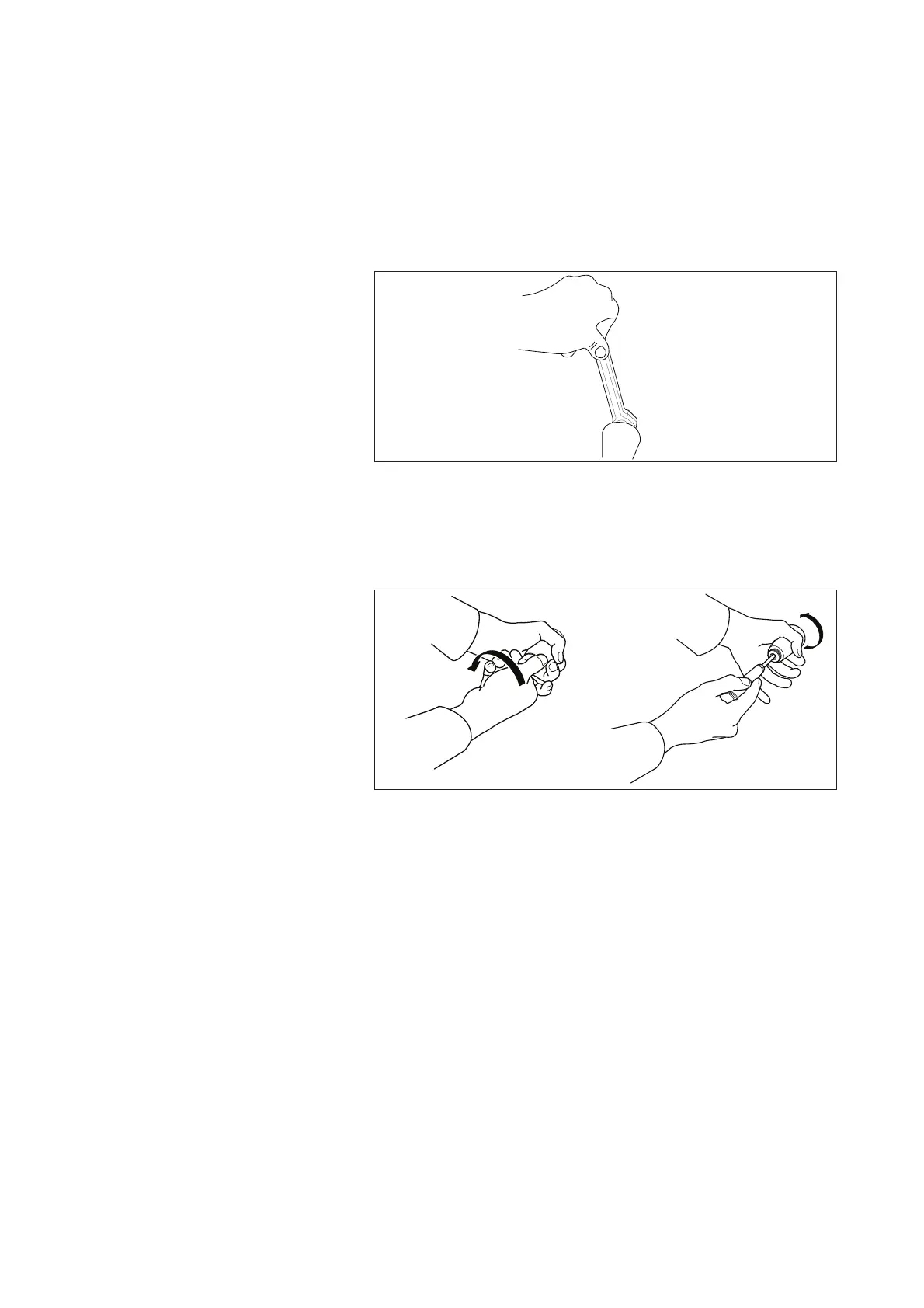

Figure 5. Dismantling, option 1
• Option 2 Hold the nozzle and unscrew the nozzle head.
Then insert a screwdriver into the nozzle and position the
EODGHLQWKHVORW+ROGLQJWKHVFUHZGULYHU¿UPO\XQVFUHZWKH
nozzle.
001412
Figure 6. Dismantling, option 2
• Take out the nozzle at the back of the chamber and
disconnect the nozzle from the hose. The main pump can be
removed to make this operation easier. Disconnect the hoses
DQGWKHWZR¿[LQJVFUHZVXQGHUWKHSXPSVKHOI0RYHWKH
pump forward and lift it out.
• $IWHUUHSODFHPHQWUHSDLUUH¿WLQWKHUHYHUVHRUGHU
 &KHFNLQJ¿[HGQR]]OHV
This is inspected to prevent the nozzle from becoming clogged
with dirt and deposits, etc. Failure to perform the inspection can
result in poor cleaning results.
Unscrew the nozzle from the chamber and clean it inside and out.
Mount the nozzle back again.
