7.6 Replacing a temperature sensor
WARNING!
Only to be carried out by authorized staff.
WARNING!
The machine is connected to the electricity supply
and some components are live.
• Remove the old temperature sensor by pulling it out of the
seal.
• Push the new sensor in through the seal.
1
001418

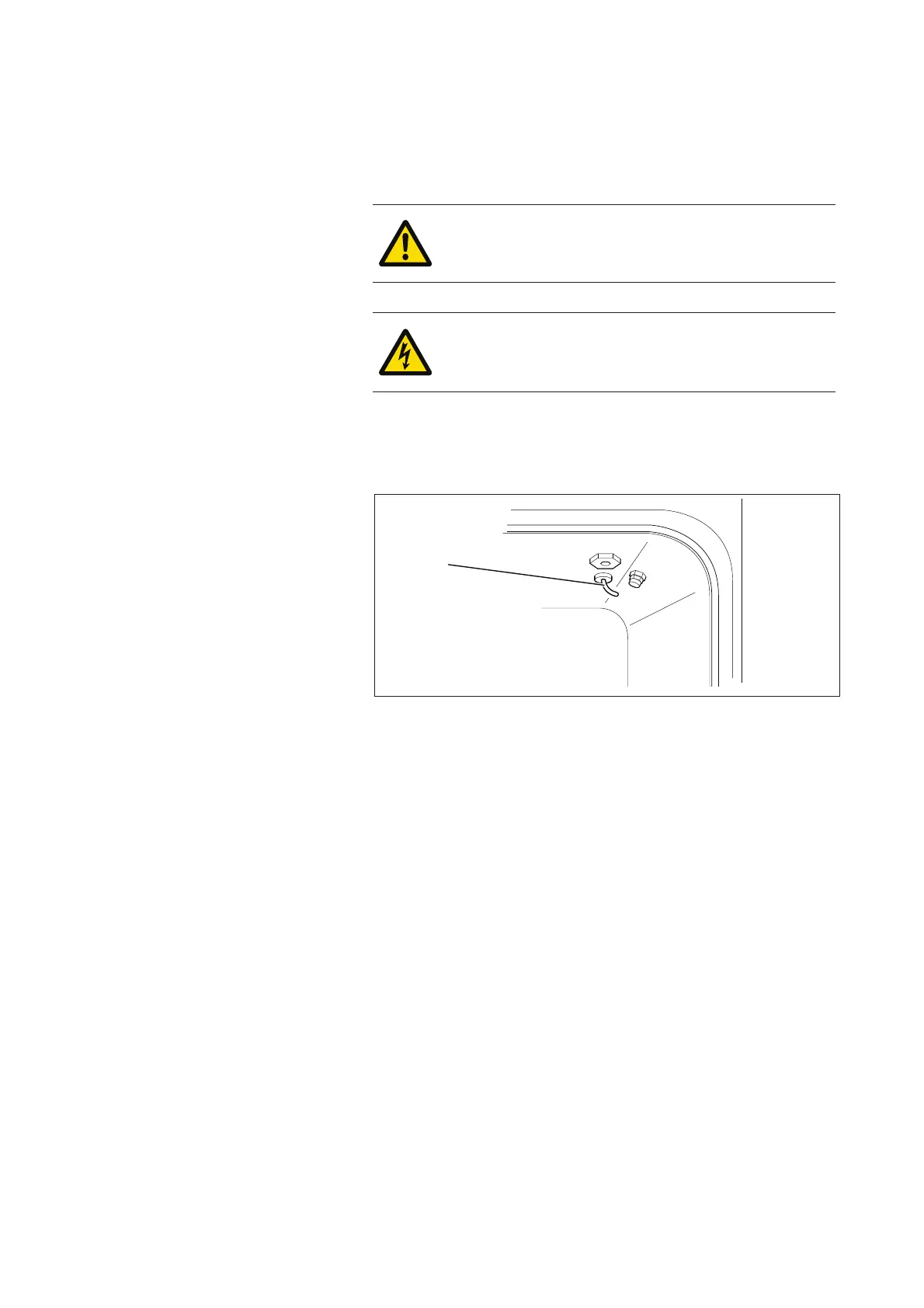

Figure 21. Placement of the temperature sensor (1)
7.7 Inspection and calibration of AD for temperature sensor
The AD convertor for the temperature sensor can be regulated
DQGFDOLEUDWHGXVLQJD¿[HGUHVLVWDQFH)RUPRUHLQIRUPDWLRQVHH
³5HDGLQJWKHWHPSHUDWXUH´OLQHDQG³&DOLEUDWHZLWK$'´OLQHV
±
