Arjo Tornado - Manual Door Opening and Draining

85
7.2 Opening the door in the event of a power failure
7.2.1 Opening FD1800 and FD1810
Remove the cover from the machine to access the locking
mechanism. Slide the locking mechanism to the side. Then open
the door.
003811

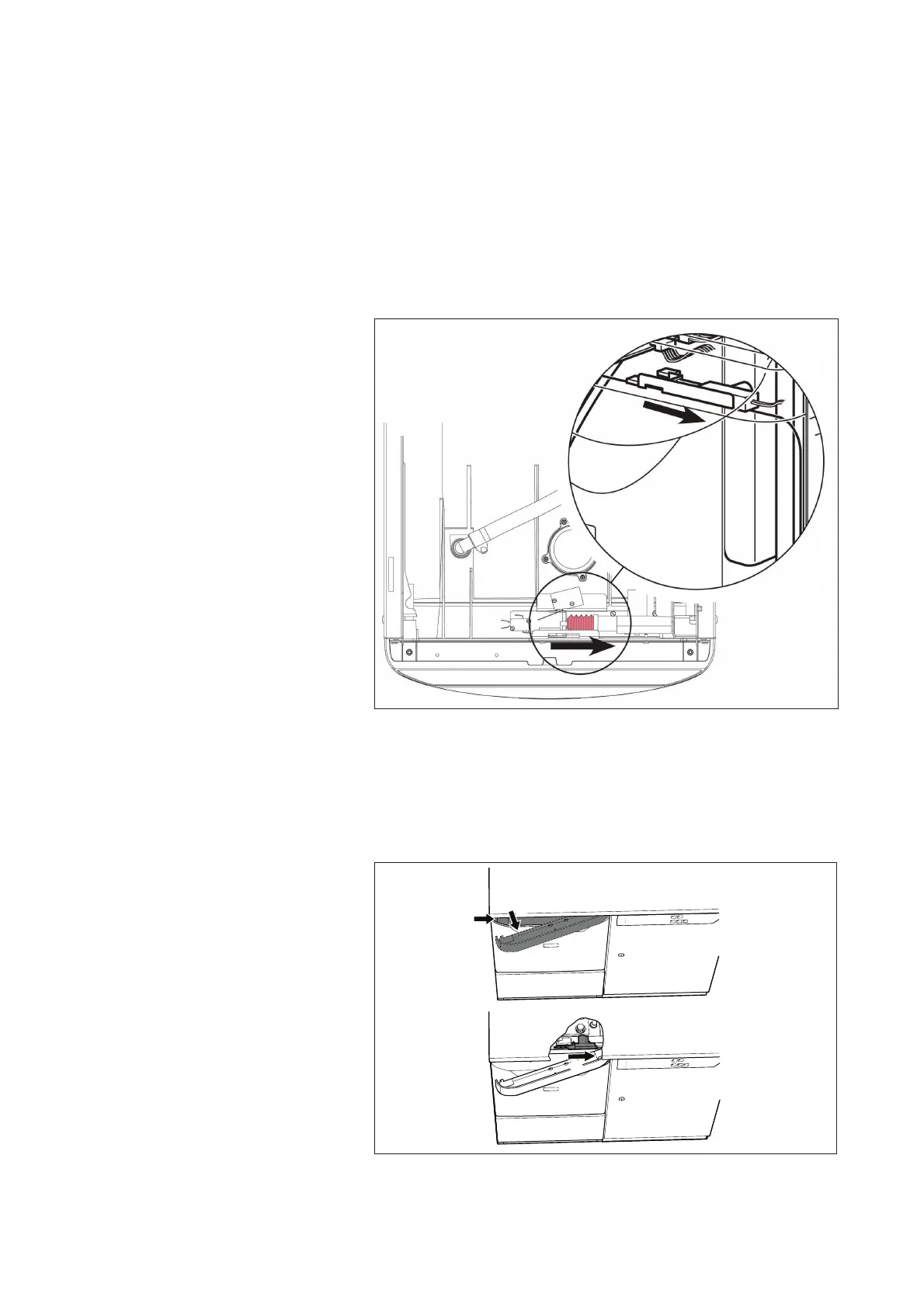

Figure 15. Opening the door manually
7.2.2 Opening FD1805
7RUHDFKWKHORFNLQJPHFKDQLVP¿UVWSUHVVRQWKHVLGHRIWKH
panel above the door and then turn the panel outward. Slide the
locking mechanism to the side. Then open the door.
003124
1
2
3
Figure 16. Opening the door manually
