7.1.2 Removing the bench top for FD1805

Remove the bench top by opening the door to the right and

unscrewing the locking screw. Then pull the bench top forward and

remove it.

003123

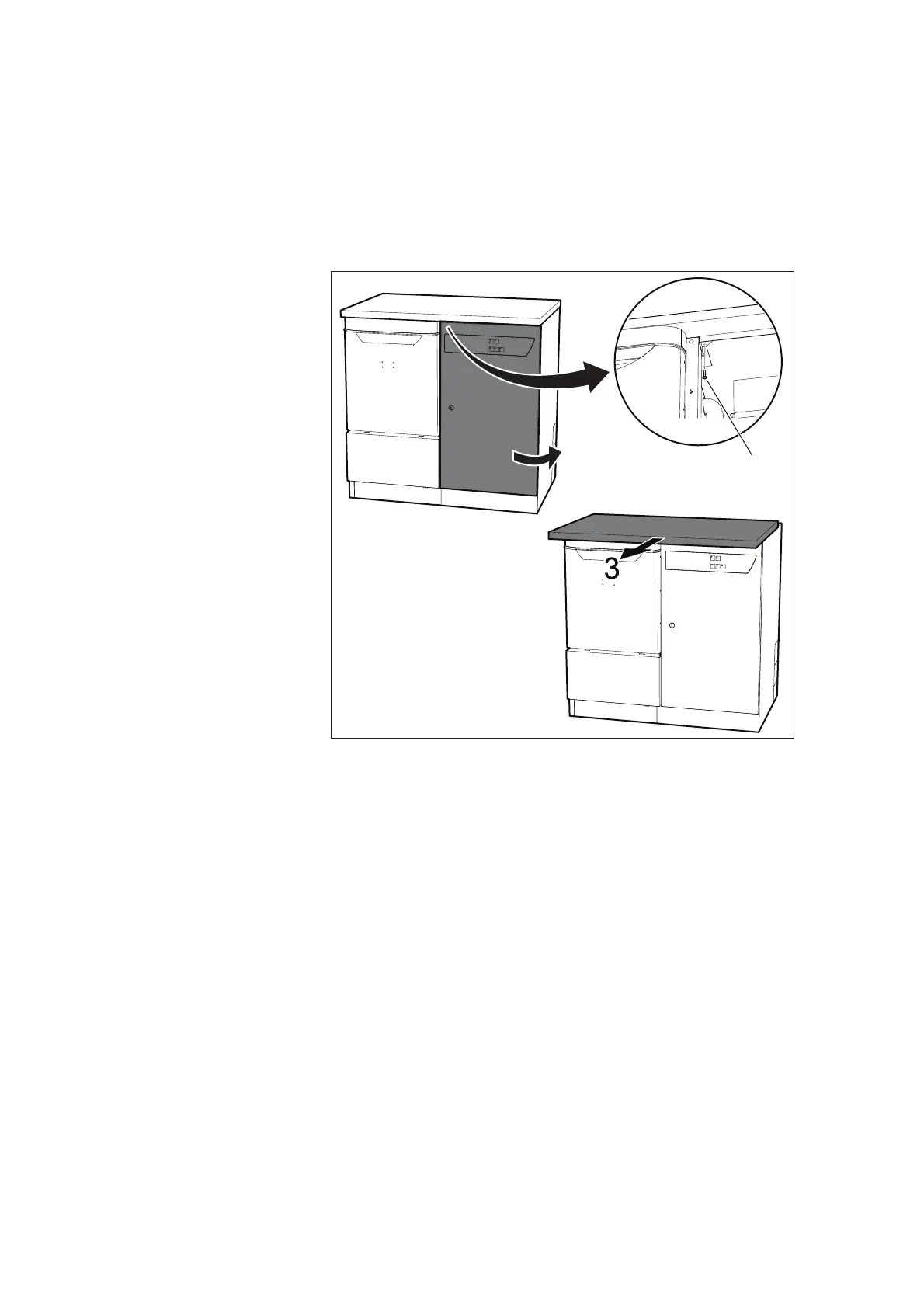

Figure 14. Removing the top
