Model 8640B TM 9-4935-601-14-7&P
CHANGE 24 (cont'd)
Service Sheet 21 (component locations):
Replace Figure 8-63 with attached figure.
P/O A8A2

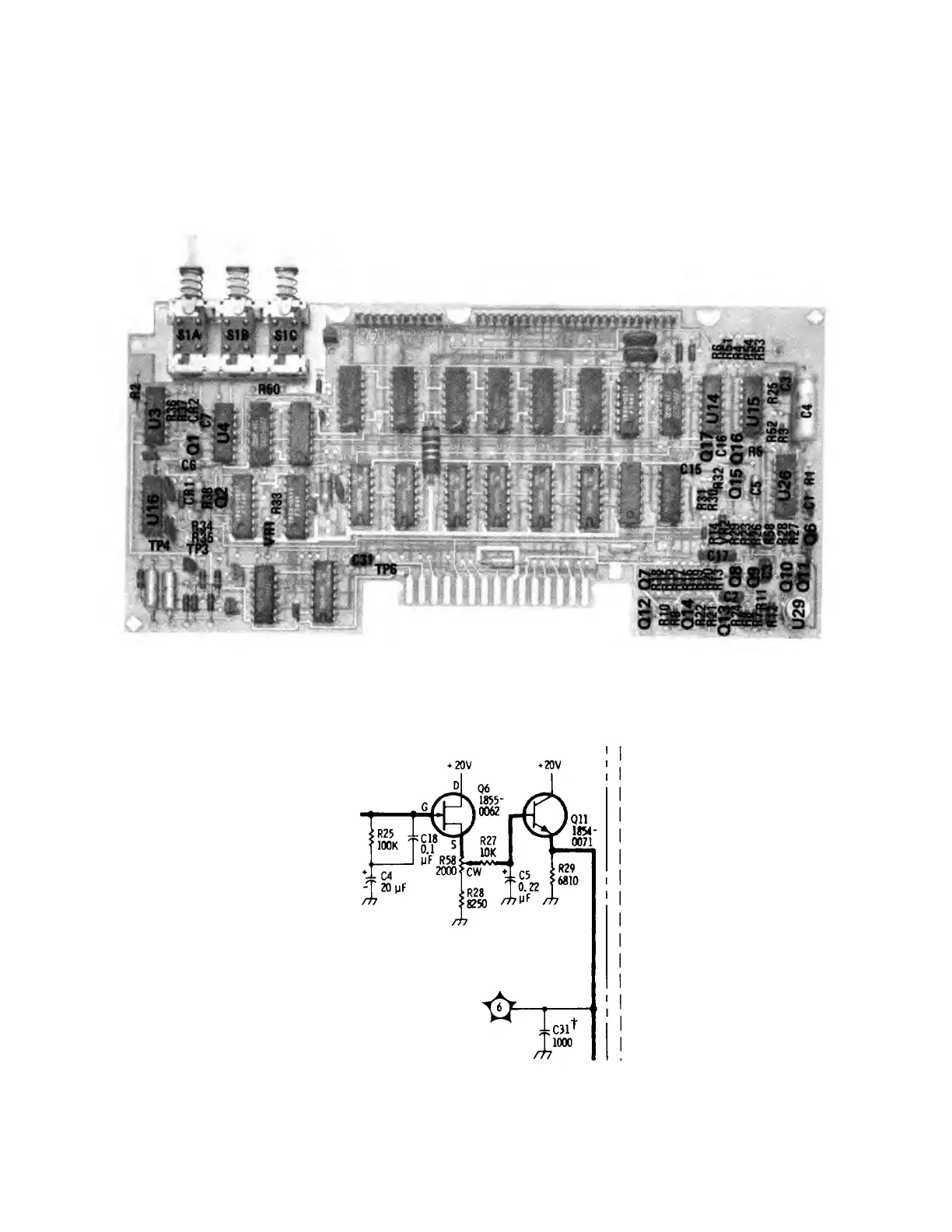

Figure 8-63. P/O A8A2 Counter/Lock Board Assembly Component Locations (P/O Change 24 )
Service Sheet 21 (schematic):
Change part number of A8A2 subassembly to 08640-60258.
Replace appropriate portion of Figure 8-64 with attached partial schematic.
P/O Figure 8-64. Counter Phase Lock Schematic Diagram (P/O Change 24)
7-55
