VAR8 and Variants Operation, Commissioning, Fault Finding, and Maintenance Guide
sue: 02 complete, approved
-
Is
Page 123 of 166

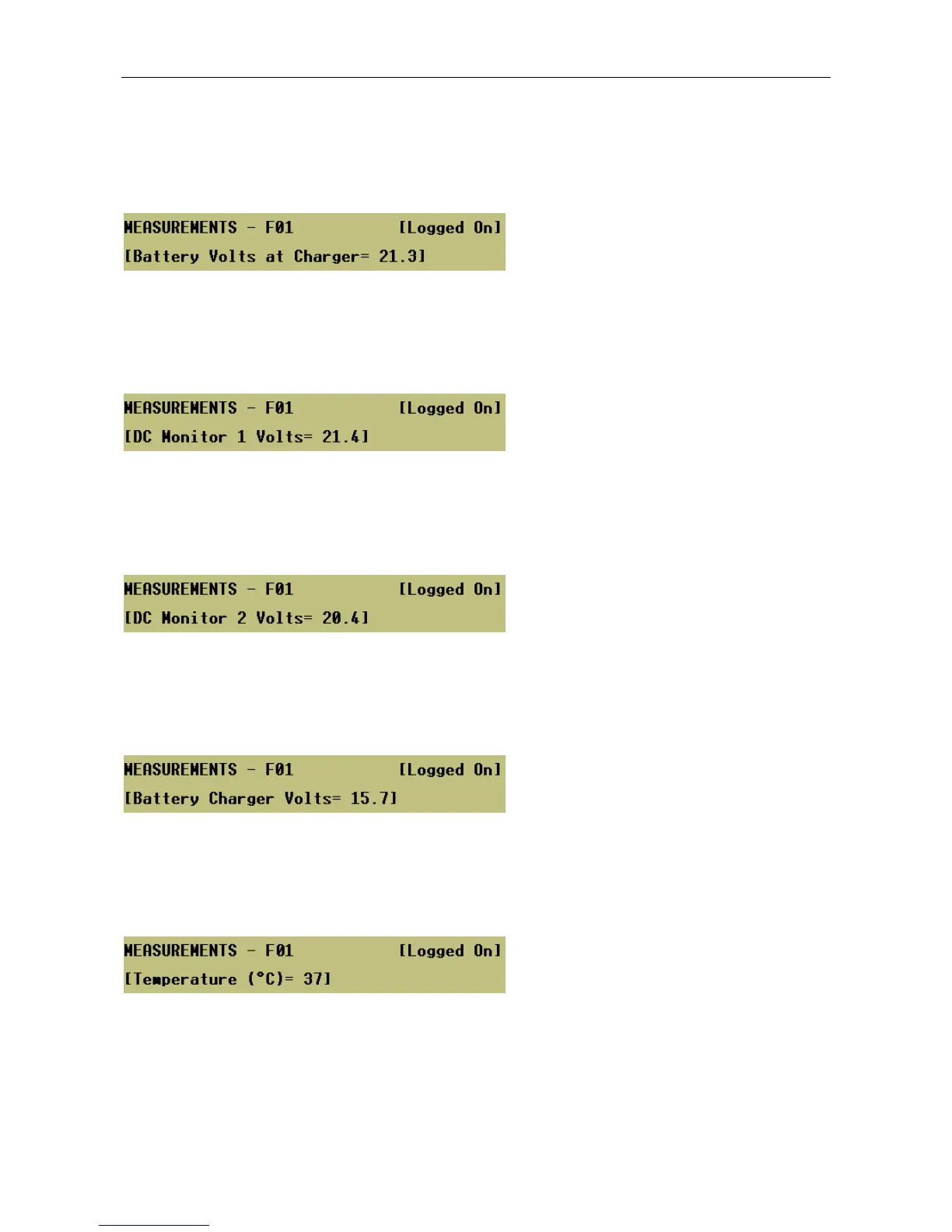

25.6.6 Battery Voltage at Charger
The battery voltage at the charger can be displayed via the following menu.
Menu: TestÆStatusÆFrame#<nn>ÆMeasuredÆBV
25.6.7 Voltage on First Supply Channel
The voltage on first supply channel can be displayed via the following menu.
Menu: TestÆStatusÆFrame#<nn>ÆMeasuredÆDC1
25.6.8 Voltage on Second Supply Channel
The voltage on second supply channel can be displayed via the following menu.
Menu: TestÆStatusÆFrame#<nn>ÆMeasuredÆDC2
25.6.9 Voltage Output by the Charger
The voltage output by the charger can be displayed via the following menu.
Menu: TestÆStatusÆFrame#<nn>ÆMeasuredÆCV
25.6.10 Frame Ambient Temperature
The temperature as monitored by the frame can be displayed via the following menu.
Menu: TestÆStatusÆFrame#<nn>ÆMeasuredÆTEMP
