VAR8 and Variants Operation, Commissioning, Fault Finding, and Maintenance Guide
sue: 02 complete, approved
-
Is
Page 124 of 166
25.6.11 Amplifier Type and Revision Level

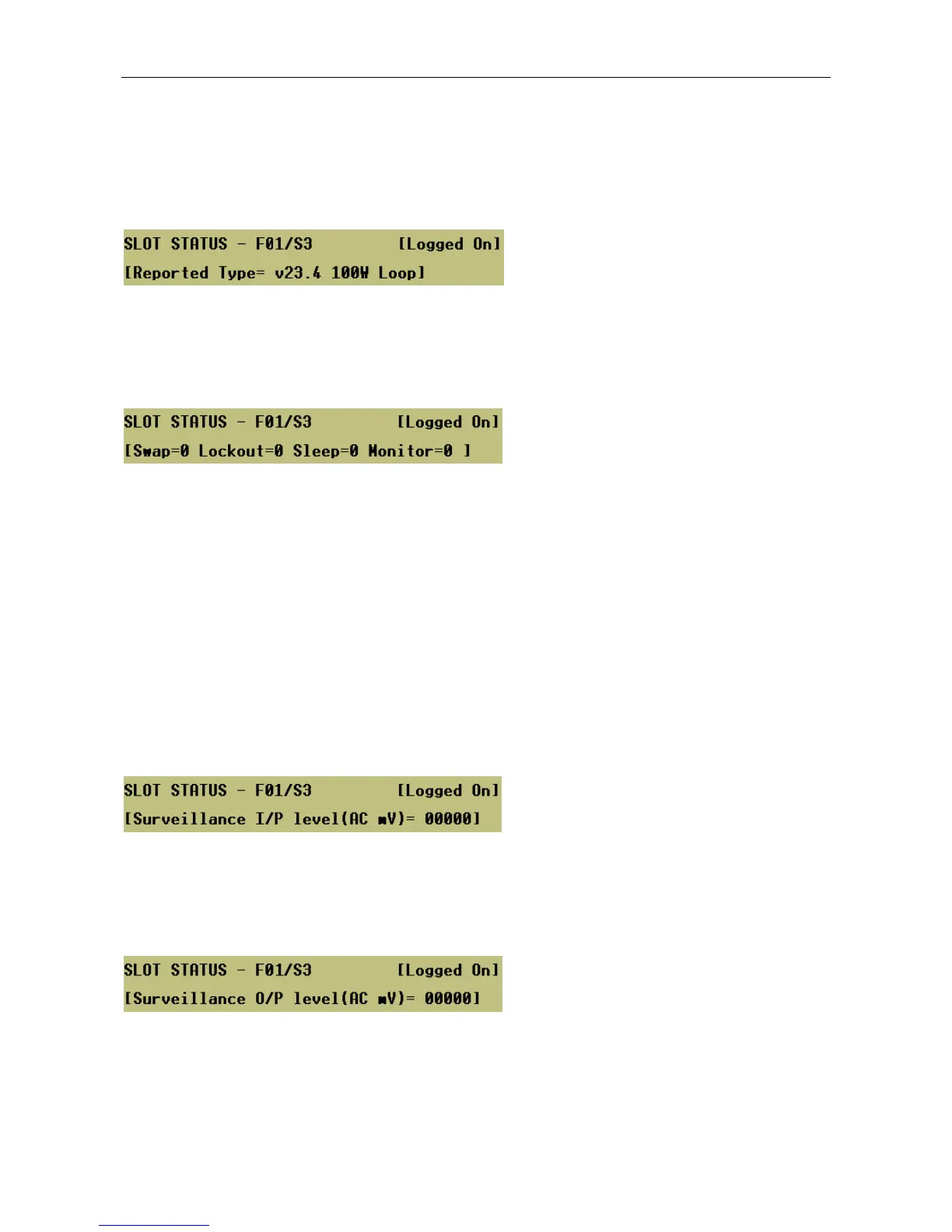

The type, revision level, and surveillance mode of the amplifier installed in the selected slot can be displayed
via the following menu.
Menu: TestÆStatusÆFrame#<nn>ÆSlot #<nn>ÆType
25.6.12 Amplifier Detailed Status
The status of the amplifier in the selected slot can be displayed via the following menu.
Menu: TestÆStatusÆFrame#<nn>ÆSlot #<nn>ÆI/O
Swap 1 (swapped to standby amplifier)
0 (in use)
Lockout 1 (locked out from accessing the standby amplifier)
0 (can access the standby amplifier)
Sleep 1 (in power saving sleep mode)
0 (not in sleep mode)
Monitor 1 (amplifier is connected to the audio monitor bus)
0 (amplifier is disconnected from the audio monitor bus)
25.6.13 Amplifier Input Surveillance Tone Level
The input surveillance tone limits in millivolts can be displayed via the following menu.
Menu: TestÆStatusÆFrame#<nn>ÆSlot #<nn>ÆMeasuredÆSurv In
25.6.14 Amplifier Output Surveillance Tone Level
The output surveillance tone limits in millivolts can be displayed via the following menu.
Menu: TestÆStatusÆFrame#<nn>ÆSlot #<nn>ÆMeasuredÆSurv Out
