VAR8 and Variants Operation, Commissioning, Fault Finding, and Maintenance Guide
sue: 02 complete, approved
-
Is
Page 45 of 166 Page 45 of 166
9.6.1.1 Unused Button 9.6.1.1 Unused Button
L L
Any button that is not used should be configured as unused, to prevent inadvertent operation. Any button that is not used should be configured as unused, to prevent inadvertent operation.

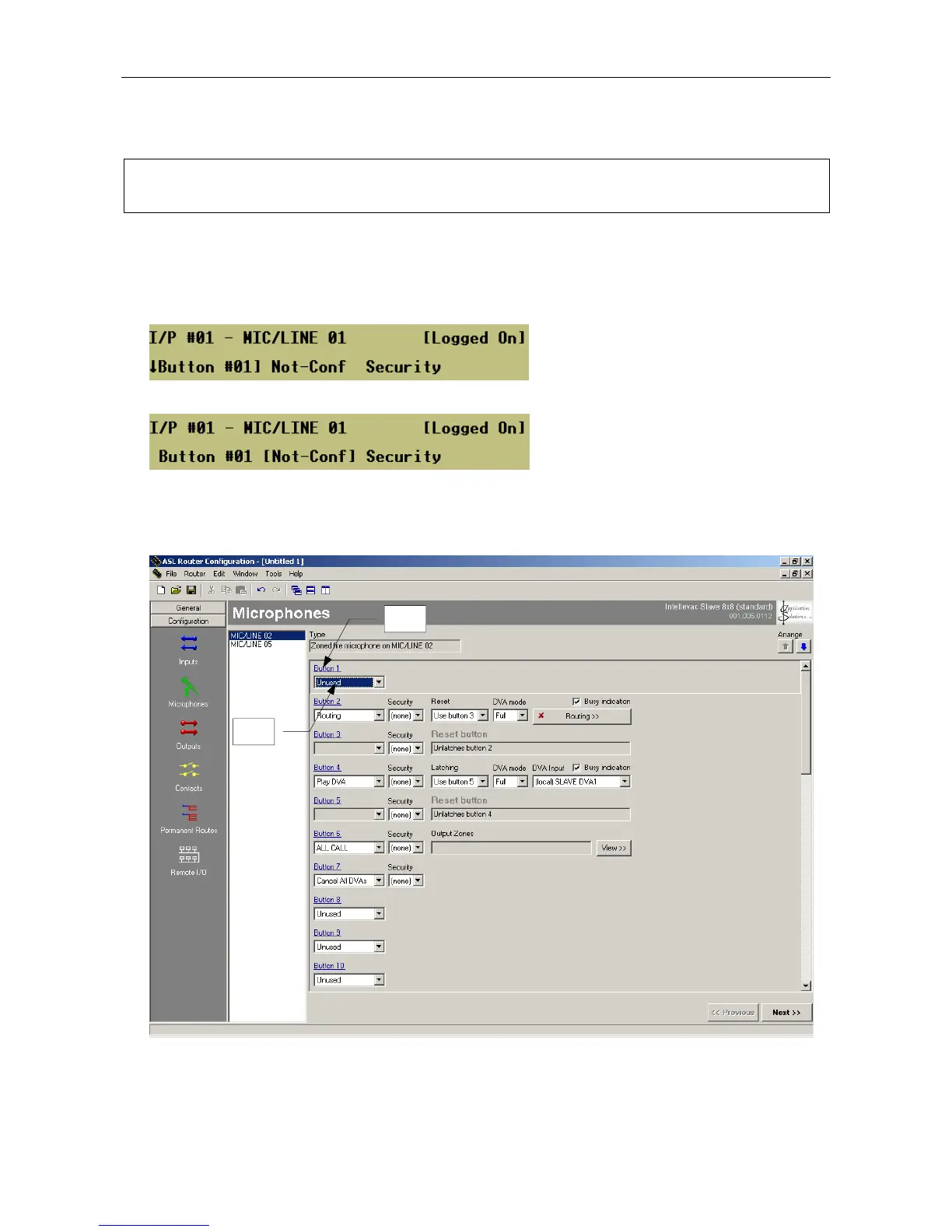

To Program a Microphone Button as Unused:
1. Select the microphone button to the programmed.
Menu: ConfigurationÆSystemÆRouterÆInputsÆMic/LineÆI/P #<nn>Æ<mic type>ÆButtons
2. Program button as ‘Not-Conf’.
Reference to Configuration Tool
2
1
To Next Page
