ASL INTERCOM VAR8 - Permanent Route Configuration

VAR8 and Variants Operation, Commissioning, Fault Finding, and Maintenance Guide
sue: 02 complete, approved
-
Is
Page 79 of 166 Page 79 of 166

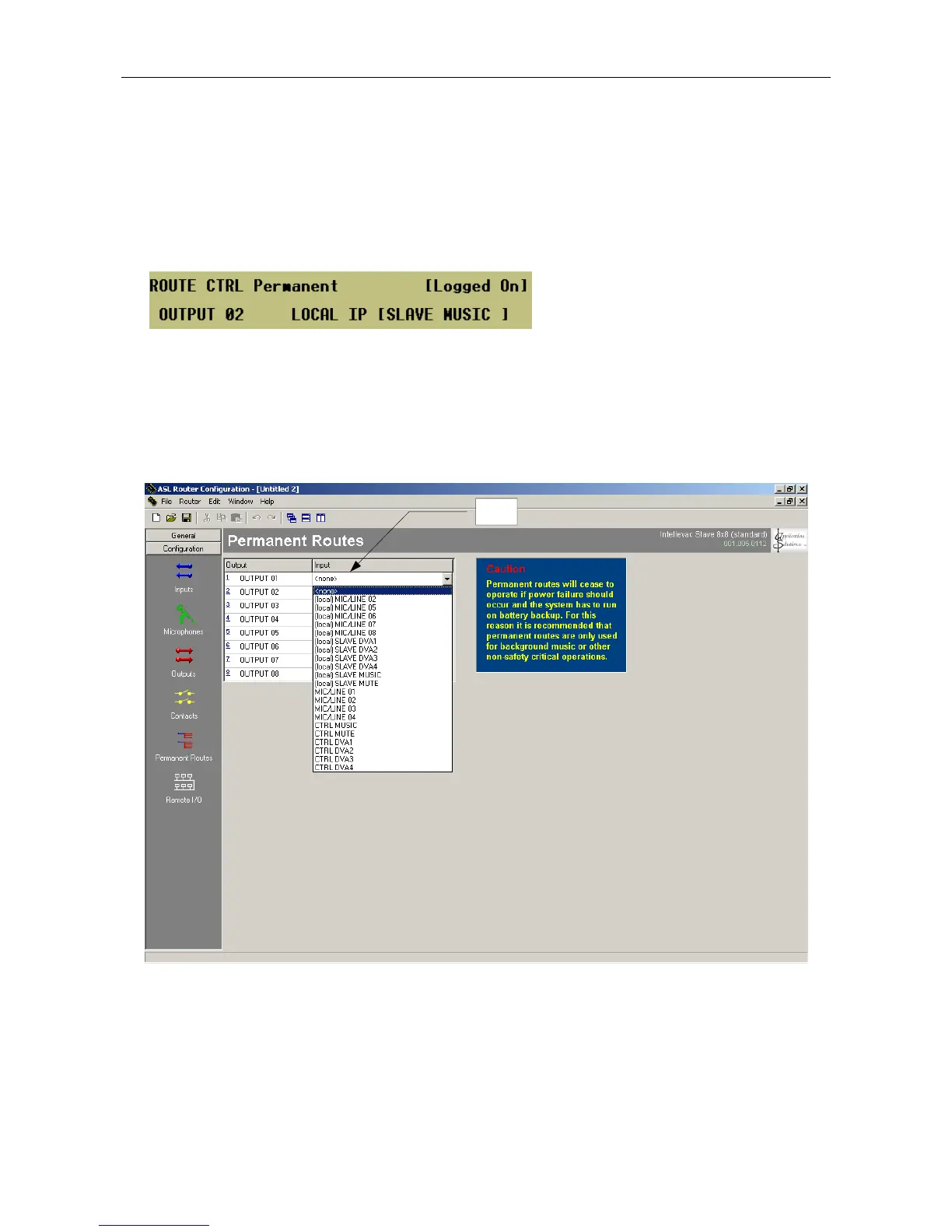

14 Permanent Route Configuration 14 Permanent Route Configuration
To Program Permanent Routes: To Program Permanent Routes:
1. Access the following menu, and set-up the required permanent routes. 1. Access the following menu, and set-up the required permanent routes.
Menu: ConfigurationÆSystemÆRouterÆCtrlÆPermanent Menu: ConfigurationÆSystemÆRouterÆCtrlÆPermanent
2. Select the input that will be routed to an output.
The input may be either one of the Audio Control Unit (NETWORK IP) audio sources, or the Slave Unit
(LOCAL IP) audio sources.
Reference to Configuration Tool
2
