600-00151-001 Rev 01 -59- Envision EX5000

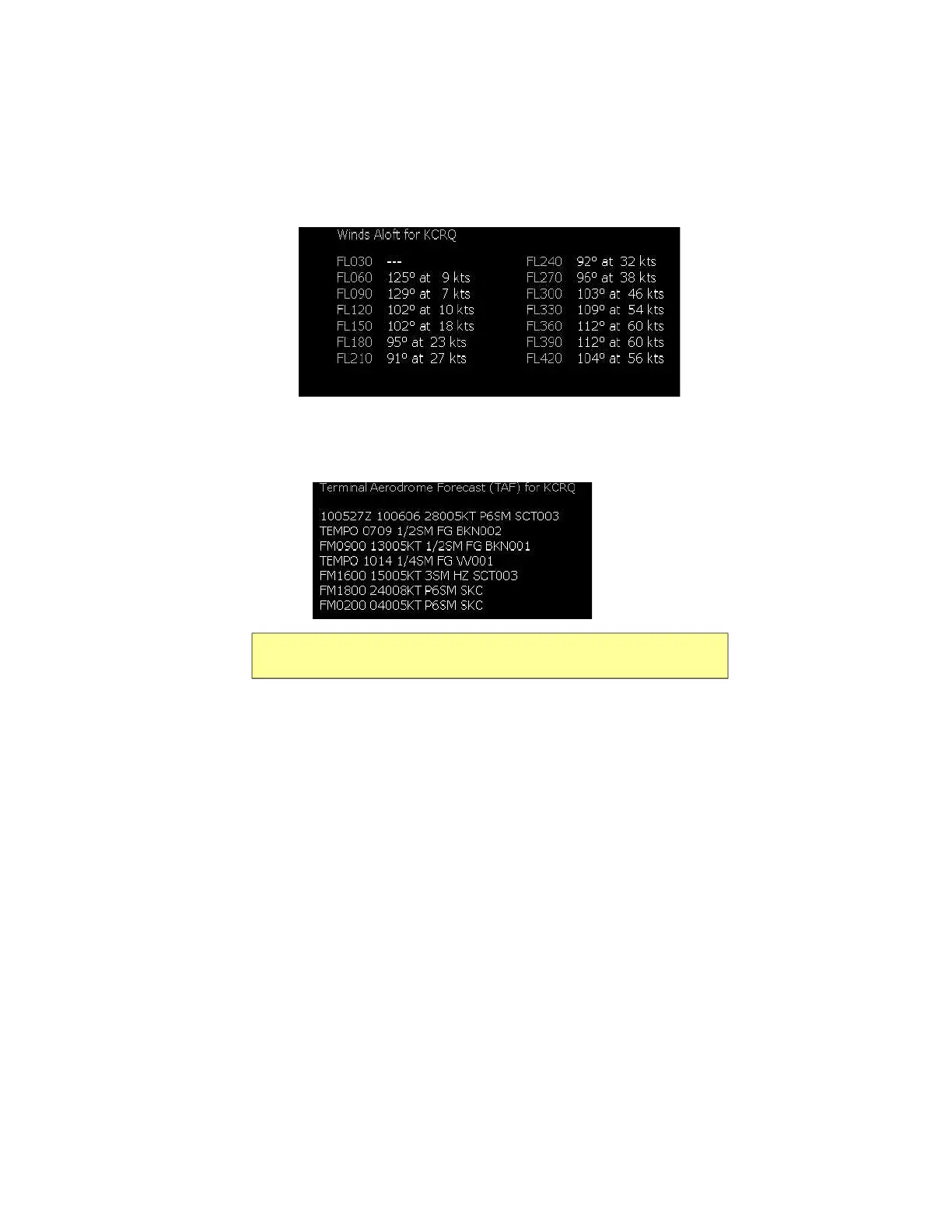

n TAFs—The EX5000 provides text Terminal Aerodrome
Forecasts (TAF) from the National Weather Service via
Broadcast Datalink, if available. TAFs are not decoded.
n ADS-B Status If the EX5000 is configured with for ADS-B
weather, the Trip page will have a 'Status" button. Pressing
the button will cycle through the following sub-pages
u Products- This is the standard Status page which
display the product ages and receiver status
u Stations- This page shows information about which
stations are providing data and the completeness of that
data. White text in the CRL (Current Report List) Range
columns indicates that additional data is expected.
u Unavail-This page displays information about products
that are being reported as temporarily unavailable.
9) Chart—If CMax approach charts are installed and available,
provides a quick jump to the Chart page with the highlighted
airport pre-selected. For more information about CMax, see
Section 3, "CMax Chart Pages (Optional) " on page 25.
Note: Winds Aloft and TAFs are only available with certain broadcast
packages. See the broadcast datalink documentation for more information.
