Avigilon ALTA Core Series User Manual

Figure 9 Installing the Video Reader Pro on the mullion mount

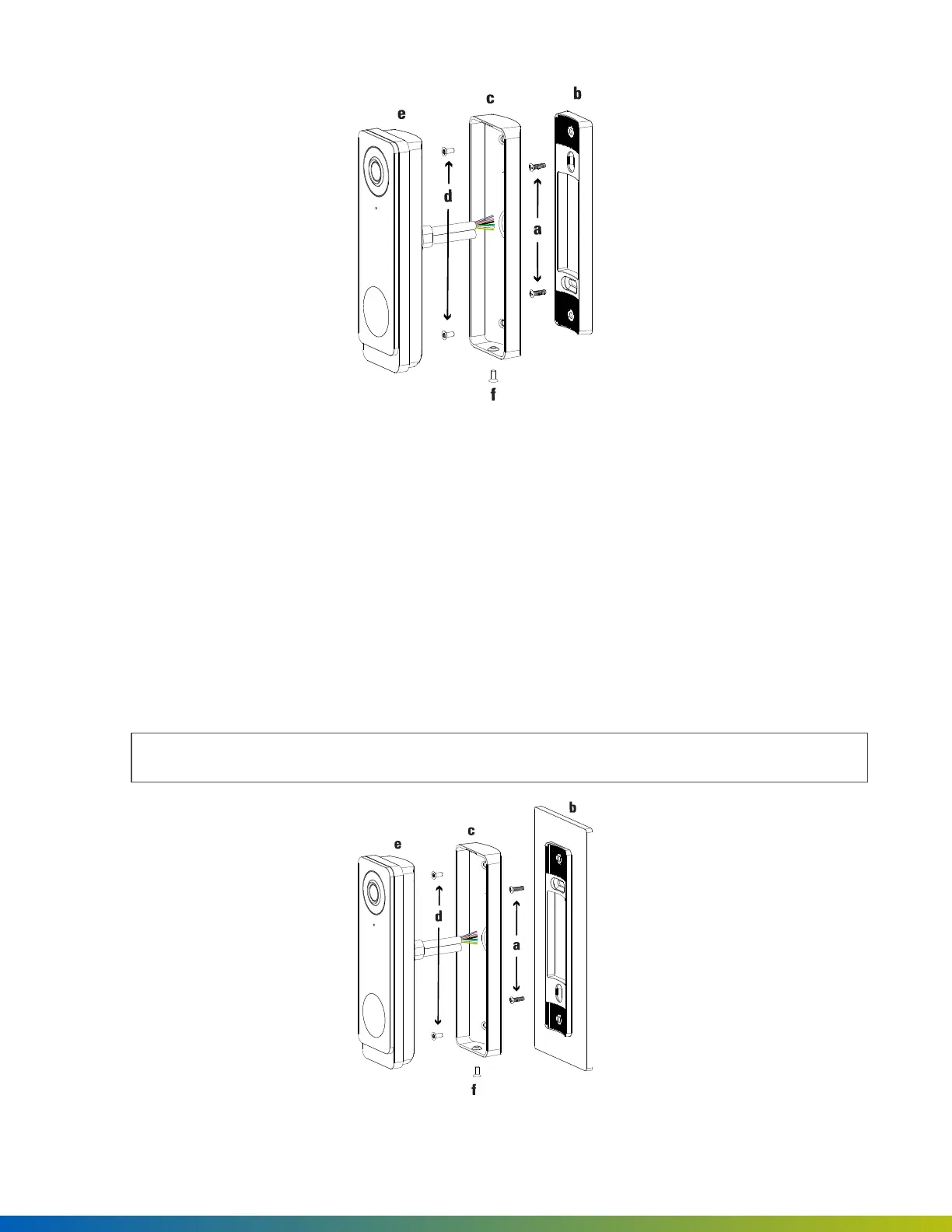

Install the Video Reader Pro on the standard mount
1. Install a recessed single gang box into the wall.
2. Use the provided machine screws (a) to attach the standard mounting plate (b) to the wall.
3. Place the cradle bracket (c) on the mounting plate, angle as desired, and secure with the provided
screws (d).
4. Strip and connect the wires, and provision the device.
5. Snap in the reader (e) and secure with the security set screw.
Note: Do not use adhesive.
Installation 35
