101
Options
F-FEM-CON
— User
’
s Guide
5.3 RSM8
Module
RSM8 Module:
A relay submodule with 8 relays can be
conn
ected at socket X14 using a ribbon
cable.
5.4 EMCON
Strip
EMCON S
trip:
The socket
s X19 and X20 can be used to connect an "EMCON-S
trip" extension
using a ribbon cable.

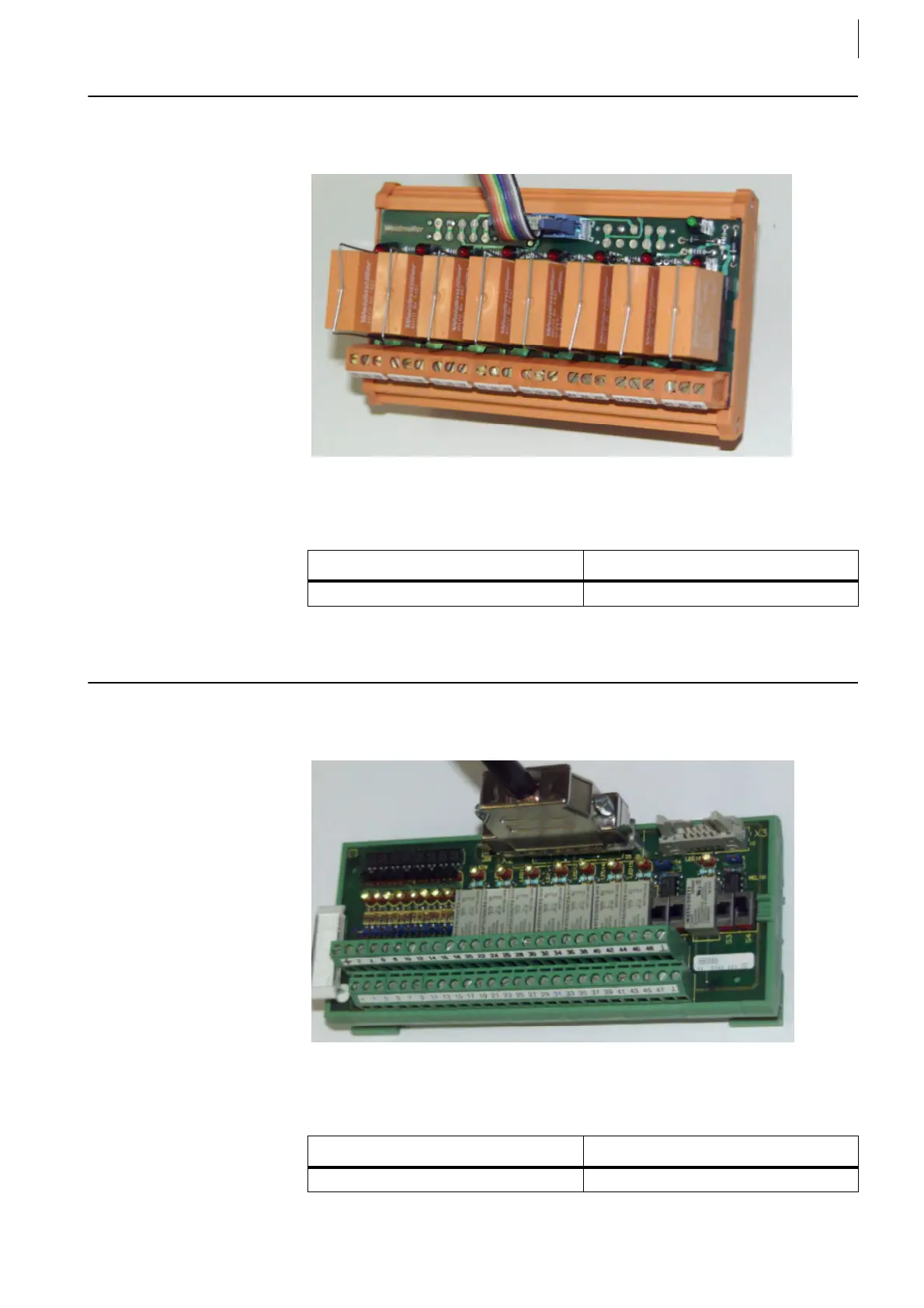

Fig.
75
Description
A
VL part number
RSM8 Module
EU0857
T
ab.
38
Fig.
76
Description
A
VL part number
RSM8 Module
BB0666
T
ab.
39
100
102
Table of Contents
Warnings and Safety Instructions
3
Grouped Safety Messages
5
Table of Contents
7
What You Should Know
11
Safety Instructions
11
Warranty Seal
11
Intended Application
11
Product Specific Information
11
Purpose and Scope of this Documentation
12
Typographic Conventions
13
We Want to Hear from You
14
General
15
Performance Data
15
System Environment
16
Data Transfer between Test Bed and PUMA Open System
17
Cascade
18
Visualization
18
F-FEM-CON Block Diagram
19
Installation
21
Scope of Supply
21
Mechanical Installation
22
External Dimensions, Space Requirement
22
Fixing the Module at the DIN Rail
23
Connections
24
Function Test
24
Electrical Installation
24
Power Cable Inlet
24
IEEE1394 Wiring
25
Cable Design
25
Recommended Bus Topology
26
About F-FEM Devices, Nodes, Cables and Repeaters
26
Mechanical Layout of a Cable Routing
27
Grounding and Shielding
28
Grounding
28
Shielding
33
Software Installation
34
Operation
35
Analog Inputs
35
Block Diagrams
36
Acquisition Rate and Aliasing
38
AC Characteristics
39
Requirements
39
Signal Noise Ratio (SNR)
39
Total Harmonic Distorsion (THD)
39
Notes
39
Frequency Spectrum
40
Specifications
42
Voltage
42
Current
43
Analog Input Load Cell
44
Block Diagram
44
Specifications
45
Analog Outputs
47
Block Diagram
47
Specifications
48
Voltage Output
48
Current Output
48
Analog Outputs, General
49
Digital Inputs
50
Block Diagram
50
Specifications
51
Digital Outputs
52
Block Diagram
52
Specifications
53
Counter Inputs
54
Input Circuit for Digital Input
54
Input Circuit for Inductive Pick-Up
55
Input Circuit for Incremental Rotary Encoder
55
Input Circuit for Hall Encoder
56
Description of Function
57
Evaluation of Edges
57
Single Edge Evaluation
58
Multi Edge Evaluation
58
Toothed Disk with N-2 Teeth
59
Toothed Disk with N-1 Teeth
60
Block Diagram of Counter Channels
61
Sensor Types and Attributes
62
Accuracy Specification
62
Sensor Inputs
68
Frequency Outputs
69
Block Diagram
69
Description of Modes
70
Signal Type: PWM, PWM Inverted
70
Signal Type: Simulate ABZ
71
Signal Type: Signal Splitter (Sisp)
72
Accuracy of the Frequency Synthesis
74
Specifications
76
Timing Values
76
Electrical Values
77
Realization of an Analog Output by F-Out (PWM)
77
Watchdog Outputs
79
Block Diagram
79
Description of Function
80
Specification
80
CAN Interface
81
Status Displays
81
Seven-Segment Display
82
Aging and Calibration Intervals
83
Procedure
83
Pin Assignment
84
Location of Plug Connections
84
Analog Inputs X1
86
Analog Input Load Cell X26
87
Analog Outputs X5
88
Digital Inputs and Outputs X19, X20
89
Digital Inputs and Outputs X12
90
Digital Outputs X14
91
Counter Inputs X17, X18
92
Frequency Outputs X15, X16
93
4.12.10 Watchdog Output X13
93
4.12.11 Voltage Supply X11
94
Add-On Connection: X24, X25
95
4.12.13 CAN Interface X40
96
4.12.14 Debug/Jtag Connection: X27
97
IEEE1394 Network: X21
98
Options
99
IEEE 1394 Repeater
99
F-Fem-Dio
100
RSM8 Module
101
EMCON Strip
101
Counter Signal Adapter Advanced
102
Appendix
103
Technical Data
103
CE Compliance
104
Glossary and Abbreviations
105
Index
107
